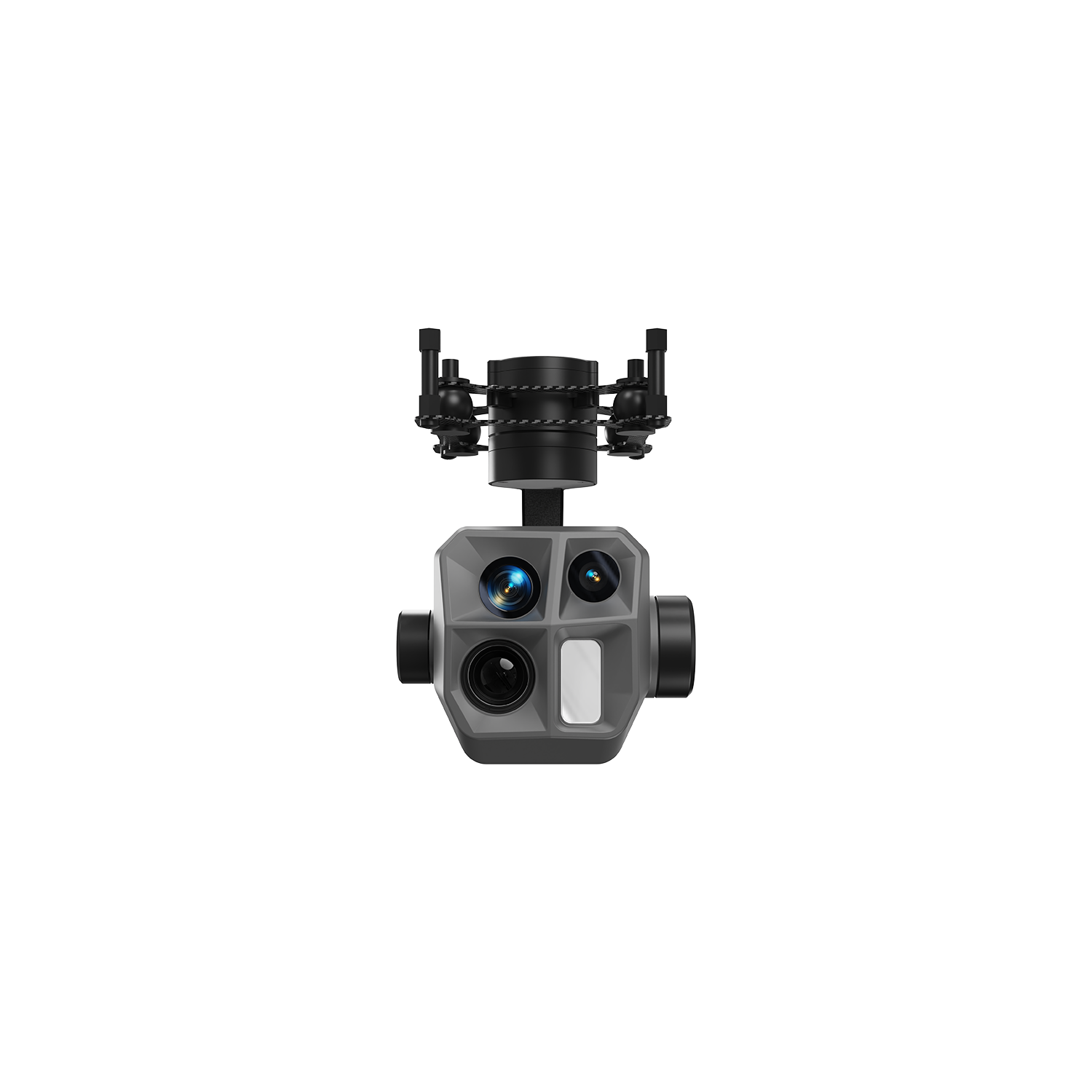

Small Gimbal Camera CT100Q
Small Gimbal Camera CT100Q
CT100Q Series Gimbal Camera
Choose Model
|
|
CT100Q EO 48Million pixels 15mm~50mm + EO 48Million pixels 4.5mm IR640-19mm + LRF-1.2kmm |
|
IR 640×512, 19mm |
EO 48Million, 15~50mm |
1.2km |
|
AI |
3-axis Gimbal |
View Control Studio |
Feature: Easy Integration
380g Weight
|
CT100Q |
|
CT100Q Features
IR 19mm DRI
|
Detective Distance: 0.75km |
Human(1.8m×0.5m)
|
|
Detective Distance: 3.9km |
Vehicle(4m×6m)
|
AI Recognize and Track Typical Targets
|
24 Hours ≥ 32 Objects ≥ 16×16 |
|
Laser Range Finder
Target GPS Coordinate Calculation: Laser Range Finder, UAV Coordinate measurement range: 20m to 1.2km
View Control Studio Display and Software
ViewControlStudio software platform accelerates unmanned aircraft system development with integrated display and control solutions.
3-axis Gimbal Camera (Pan/Tilt/Roll)
Protocol RTSP, UDP RAW, UDP TS
|
Supports Windows Platform and Kirin System |
|
Application
Gimbal cameras could be extensively used in power inspection,forest fire prevention, emergency rescue, environmental protection traffic monitoring, industrial automationand and photovoltaic inspection.
Specifications
|
||
| CT100Q | ||
| Visible light camera | Resolution | 48Million |
| Lens | 15mm ~ 50mm | |
| FOV | 29°×23.5° ~ 9°×7°(±5%) | |
| Digital zoom | 3.3X | |
| Capture | Images: 8000×6000, JPG; Video: 4k@30,1080p@60, MP4 | |
| Wrist-to-angle visible light camera | Resolution | 48Million |
| Lens | 4.49mm | |
| FOV | 83°×53° | |
| Capture | Images: 8000×6000, JPG; Video: 4k@30,1080p@60, MP4 | |
| Infrared thermal imager | Detector resolution | 640×512 |
| Pixel size | 12μm | |
| Lens | 19mm | |
| FOV | 22.8°×18.4° (±5%) | |
| Temperature Measurement | -20°C ~ +150°C/±2°C or ±2% (high sensitivity) | |
| 0°C ~ +500°C/±3°C or ±3% (low sensitivity) | ||
| Digital zoom | 1 ~ 8X | |
| Laserrangefinder | Ranging distance | 5m~1.2km |
| Ranging accuracy | ≤1m | |
| Ranging frequency | 1Hz | |
| Servo platform | Pan angle | 360°×n (360° continuous rotation) |
| Tilt angle | -130° ~ +90° (positive ↑) | |
| Roll angle | -60° ~ +60° | |
| Stabilization accuracy | ≤0.003° (1σ) | |
| Maximum angular velocity | Azimuth≥60°/s, Pitch≥60°/s | |
| Maximum Rotational Acceleration | Azimuth≥50°/s², Pitch≥50°/s² | |
| Image processing | Automatic identification | Automatic identification of human and vehicle targets Number ≥32 |
| Automatic tracking | Target size ≥16×16 | |
| Tracking frame rate | 50Hz | |
| Image output | RTSP/UDP/RTMP optional, code rate 100kbps ~ 6Mbps settable | |
| System Parameters | Voltage | 12VDC |
| Consumption | Stable Power Consumption: ≤20W, 12VDC power-up peak current ≤10A | |
| Weight | ≤380g | |
| Dimensions | ≤90mm×105mm×124mm | |
| Interface | Control interface | UART/Network optional |
| Video interface | 100 megabit Ethernet | |
| Storage interface | ≤512G Memory Card (Micro SD Card) | |
| Picture format | jpg Format | |
| Video format | avi Format | |
| Environmental Adaptability | Working temperature | -20°C ~ +55°C |
| Storage temperature | -40°C ~ +60°C | |
| Protection Level | Can fly in light rain |
