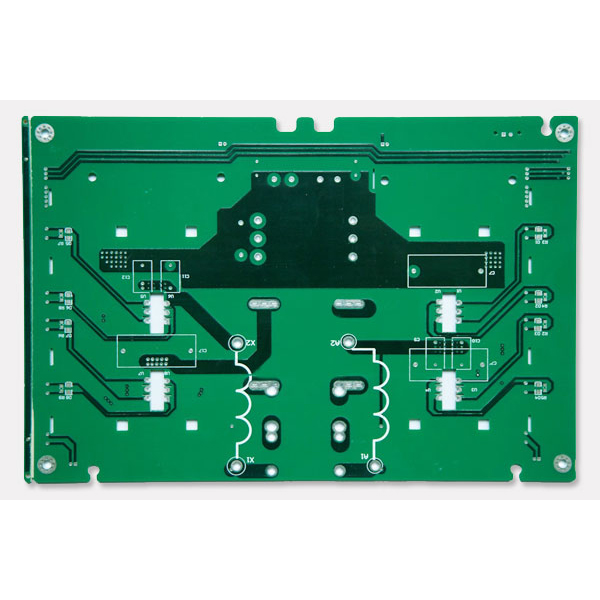

Consumer Electronics Double-Layer PCB – Electronic Scale Power Board

Product Introduction

This Double-Layer PCB is designed specifically for electronic scale power circuits. It provides reliable signal and power transmission, stable performance, and compact construction, ensuring accurate measurement and efficient power management for electronic scales and other small consumer devices.

Structure

A typical double-layer PCB for electronic scale power circuits consists of:

• Top/Bottom Copper Layers – For current conduction and signal routing.

• Dielectric Insulation Layer – Ensures electrical isolation and stability between layers.

Key Features

• Stable Power Transmission – Supports reliable operation of electronic scales.

• Durable Construction – Resistant to bending and mechanical stress during assembly.

• Compact Design – Suitable for small and portable consumer devices.

• Eco-Friendly Materials – RoHS compliant and free of harmful substances.

• Cost-Effective Solution – High performance at an economical price.

Applications

• Electronic scale power supply PCB

• Small consumer electronic devices requiring stable power

• Compact electronics with 2-layer PCB structure

Specifications

• Base Material: FR-4

• Layer Count: 2L

• Board Thickness: 1.6mm

• Board Size: 127.3 × 96mm

• Min. Hole Diameter: 0.53mm

• Min. Line/Spacing: 0.47 × 0.51mm

• Surface Finish: HASL (Spray Tin)

• Solder Mask/Legend: Green / White

• Copper Thickness: 35μm

Packaging & Delivery

• Vacuum-sealed, moisture-proof bag

• Bubble wrap for protection

• Packed in export carton

• Customized packaging available
