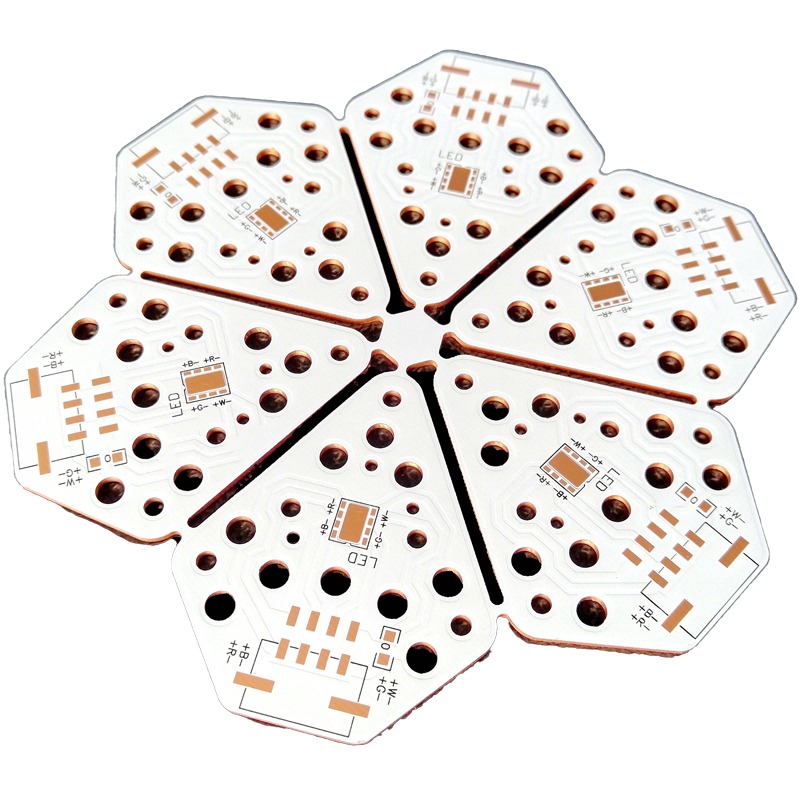

Aluminum PCB – High Thermal Conductivity, Durable & Lightweight Metal Core Board

Aluminum PCBs are metal-based circuit boards with an aluminum core, offering excellent heat dissipation, high durability, and lightweight strength.

Aluminum PCB (Metal Core PCB)

Aluminum PCBs are metal-based printed circuit boards that use aluminum as the core material for superior heat dissipation. They are ideal for high-power LED lighting, power supplies, and applications requiring excellent thermal management.

Features & Advantages

  • Excellent heat dissipation and thermal conductivity

  • Higher durability compared to traditional FR4 boards

  • Lightweight yet strong metal core structure

  • Improved product lifespan in high-temperature environments

  • Cost-effective solution for thermal management

Typical Applications

LED lighting, power converters, automotive lighting, communication base stations, high-power equipment, and industrial control systems.

Typical Specifications

Layer Count Single layer, double layer, multilayer (custom)
Base Material Aluminum core with dielectric layer and copper foil
Copper Thickness 1 oz to 3 oz
Dielectric Thickness 50 μm to 200 μm (customizable)
Thermal Conductivity 1.0 W/m·K to 3.0 W/m·K
Surface Finish HASL, ENIG, OSP, Immersion Silver
Board Thickness 0.8 mm to 3.0 mm
Max Board Size 600 mm × 500 mm

Note: Aluminum PCBs can be customized for different thermal requirements and mechanical strengths to meet diverse application needs.
