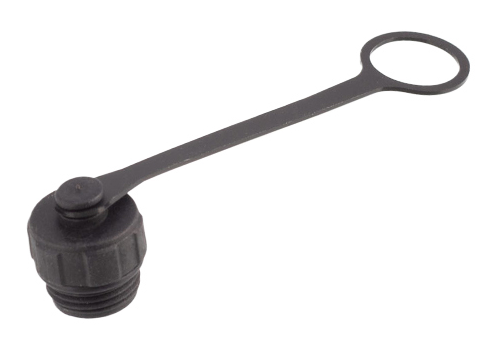

M8 Plastic Dust Cover (Outer screw)
European standard connector: M8 series Structure type: Plastic Dust Cover
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
European standard connector: M8 series
Structure type: Plastic Dust Cover
Ring inner diameter: ∅3、∅7.5、∅10、∅11.5mm
Type: Outer screw
Connection method: Screw
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
DIMENSION DRAWING
WIRE DEFINITION
| Product Name | Product NO: | Ring inner diameter | 3D Download | 2D Download |
| M8 Plastic Dust Cover (Outer screw) | M8P-TV5S-3-N | Φ 3mm | ||
| M8 Plastic Dust Cover (Outer screw) | M8P-TV5S-7.5-N | Φ 7.5mm | ||
| M8 Plastic Dust Cover (Outer screw) | M8P-TV5S-10-N | Φ 10mm | ||
| M8 Plastic Dust Cover (Outer screw) | M8P-TV5S-11.5-N | Φ 11.5mm |
