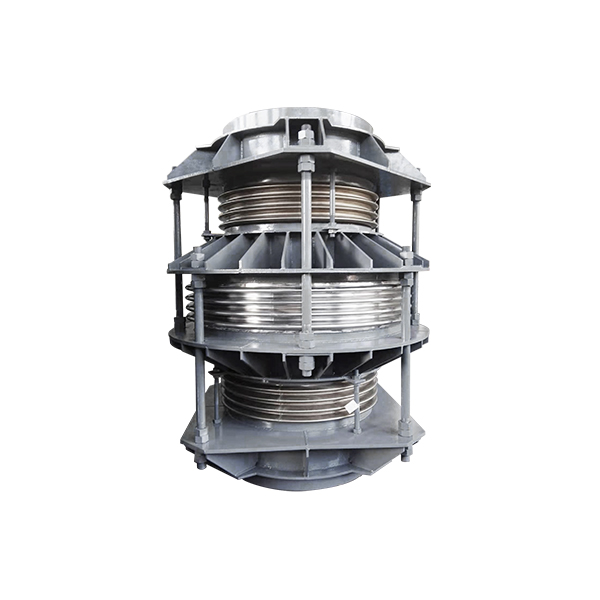

In-line Pressure Balanced Bellows Expansion Joint
It consists of two working bellows at both ends and a balance bellows in the middle, as well as structural parts such as tie rods and end plates
In-line Pressure Balanced Bellows Expansion Joint
It consists of two working bellows at both ends and a balance bellows in the
middle, as well as structural parts such as tie rods and end plates, which are
mainly used to absorb axial displacement and can balance the pressure and thrust
of the bellows expansion joint;
Specification: DN50-DN5000;
Working pressure: 0.25-1.6Mpa.
