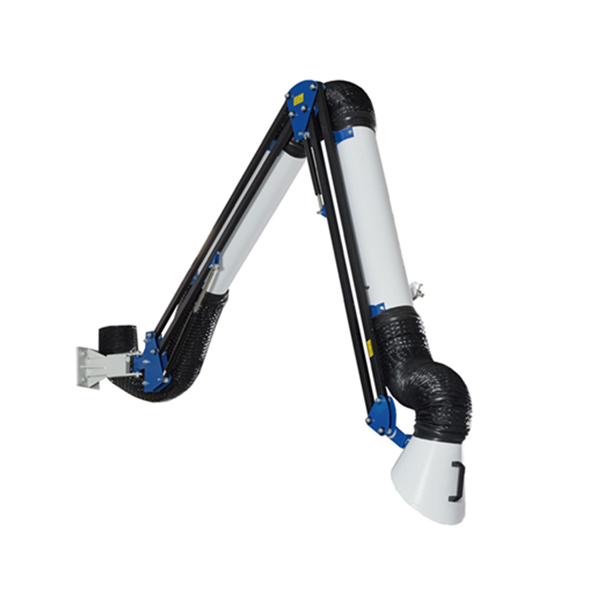

External Suction Arm
Features:
● Persistent tightness
● Arm keeps position due to self-supporting design
● Fast operation due to particularly flexible adjustment
● User-friendly due to particularly smooth movement of the hood with one hand
● Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction and filtration systems
Introduction:
External joint suction arm is suitable for sucking large amount offume, vapor
or non-explosive dust. The typical application workplace is metal processing and
other industrial workplace where large amount exhaust treatment is required.
The external joint suction arm can be applied to welding generates a lot of
flying sparkles, laser or manual plasma cutting, metal spraying, grinding, or
other processing that require mobile suction with excellent arm balance and easy
positioning.
Parameters:
|
Type & Specification |
External Suction Arm |
Extension Rod |
Overlay External Suction Arm |
|
Arm Length |
Hose Diameter |
Rod Length |
Hose Diameter & Length |
|
2 m |
130/160mm |
1/1.5/2 m |
160mm, 1+2 m |
|
3 m |
130/160mm |
2.5/3/4 m |
160mm, 1+3 m |
Applications:
Welding training center case
Suction arm with 2m extension rod
2m Suction arm case
