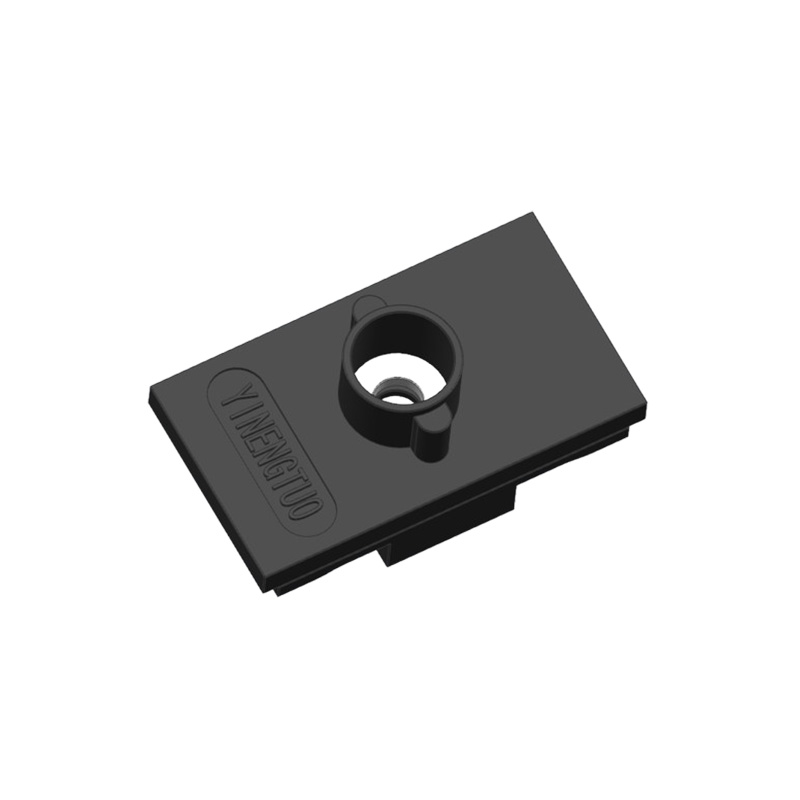

ET-TY-001-Thermal Elastic Washer-20X36-M4
1.Through-hole diameter: 4.2mm;
2.Fixing screw: M3 or M4 standard screw;
3.Screw torque: 6–8 Kgf.cm (0.6–0.8 N.m);
4.Fixing type: fixes two tubes (chips);
1. Through-hole diameter: 4.2mm;
2. Fixing screw: M3 or M4 standard screw;
3. Screw torque: 6–8 Kgf.cm (0.6–0.8 N.m);
4. Fixing type: fixes two tubes (chips);
5. Elastic deformation: 0.5mm–1.0 mm;
6. Installation distance: center distance between two tubes is about
30–31mm;
7. Chip size: 20x16mm (TO-247);
8. Chip thickness: about 3–6mm;
9. Ambient temperature: -40°C~150°C;
10. Flame retardant rating: UL94V-0;
11. Housing material: PA+35GF;
12. Spring clip material: spring steel;All materials comply with RoHS
requirements;Appearance requirements: no burrs, flash, mold marks, or other
defects that affect product function.
