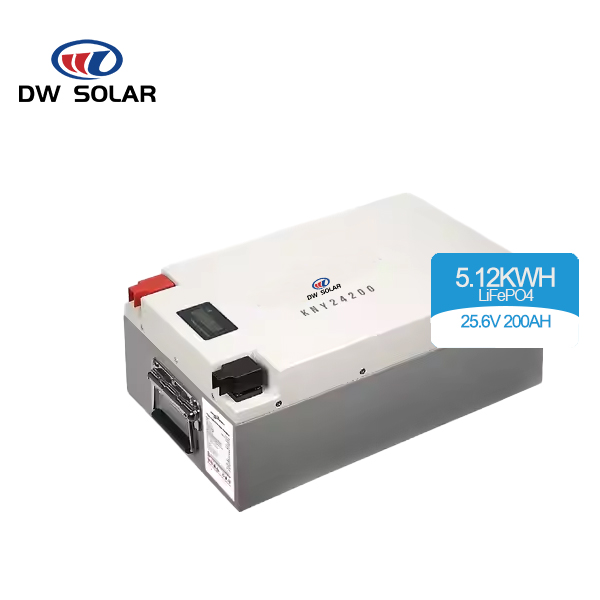

Wall-Mounted LiFePO4 Lithium Battery 25.6V 200Ah for Residential Energy Storage
24V 200Ah Lithium Ion battery is the latest high-quality, high-cycle battery developed by DW SOLAR. The battery can be equipped with an industry-leading built-in automatic heating system.
24V 200Ah lithium battery specification
24V 200Ah Lithium Ion battery is the latest high-quality, high-cycle battery developed by DW SOLAR. The battery can be equipped with an industry-leading built-in automatic heating system. When the ambient temperature is lower than the designed temperature, the battery will automatically start the heating system to ensure that the battery can perform well in low temperature environments.
The standard version of the battery can still charge and discharge normally when the ambient temperature is below -10℃, but the charging time will be longer, and it cannot reach 100% discharge.
Product Parameter
|
Basic Information |
Battery Type-Chemistry |
LiFePO4 |
|
Nominal Voltage |
25.6V DC |
|
|
Voltage Range |
22V-29.2V |
|
|
Nominal Capacity |
200 Ah |
|
|
Rated Capacity |
5.12kWh |
|
|
Cycle Life |
3000(@80% DoD) |
|
|
Waterproof Level |
IP20 |
|
|
Dimensions(mm) |
550*390*210cmmm |
|
|
Weight (kg) |
45kg |
|
|
BMS |
BMS Build-in |
NO |
|
Charging Parameters |
Recommended Charging Current |
100A |
|
Max. Charging Current |
200A |
|
|
Recommended Charging Voltage |
25.6V |
|
|
Max. Charging Voltage |
29.2V |
|
|
Discharging Parameters |
Recommended Discharging Current |
100A |
|
Max.Discharging Current |
200A |
|
|
Temperature Parameters |
Discharging Temperature |
-20~60°C |
|
Charge Temperature |
0 ∽ 55℃ |
|
|
Storage Temperature |
-20~45°C |
|
| Certifcates |
CE, UN38.3 |
