BM578 smart BMS
The BM578 is a high-performance BMS for applications like battery leasing, shared mobility, AGVs, electric motorcycles, sightseeing cars, and golf carts.
https://en.szmtxny.cn/BMS/BM578.html
• High-precision timing
• Built-in battery with power-loss detection
• Low-voltage warning
• Multiple alarm functions
| Support Strings | 13-24S(LiFePO4 at least supports 14 strings, NCM supports up to 20strings) |
| Continuous Current | 60A/80A |
| Charging Method | Same Port |
| Temperature Detection | 4 Channels |
| Balanced Approach | Passive Balancing 30-80mA |
| Self-Discharge | ≤20μA |
| Operating Current | ≤25mA |
| Communication | LTE、BT、RS485 |
| Size | 136*80*17mm |
| Basic Function | Special Handle/Antenna Box Software Remote Control OTA Bluetooth Current Integration Power on Wake-up Load Detection anti-spark |
| Optional Function | SIF Buzzer Light Sensor Anti-Tamper Battery Level Indicator Panel |
| Application Area | Battery Rental and Swap Electric Two-wheeler Electric Motorcycle AGV |
Related products
-
Hammerlock Ground Clamp Copper Hammer Lock for Earth Rod Factory Price in Bulk Sale
Contact UsSunlight Hammerlock Ground Clamp is made from high-conductivity copper, provides a permanent, high-conductivity connection between grounding rods and wires, ensuring high-quality grounding connection.
-
Copper Bonded Steel Stranded Conductor Factory Price and Supplier
Contact UsSunlightweld offers high-quality Copper Bonded Steel Stranded, Copper Clad Steel Stranded Grounding Conductors, which are designed to meet industry standards and provide reliable performance.
-

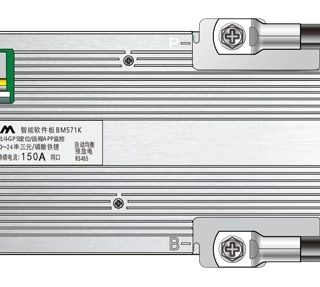

BM571K/BM571KO
Contact UsThe BM571K/BM571KO is a smart BMS offering high‑precision timing, power‑loss detection, low‑voltage warnings, and multiple alarms.
-

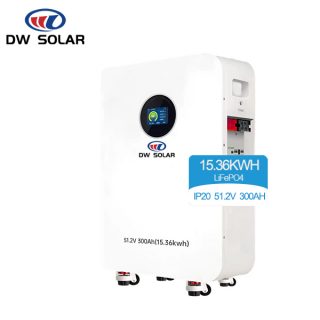

WiFi Bluetooth Functionality 51.2V 300Ah IP20 Lithium Battery
