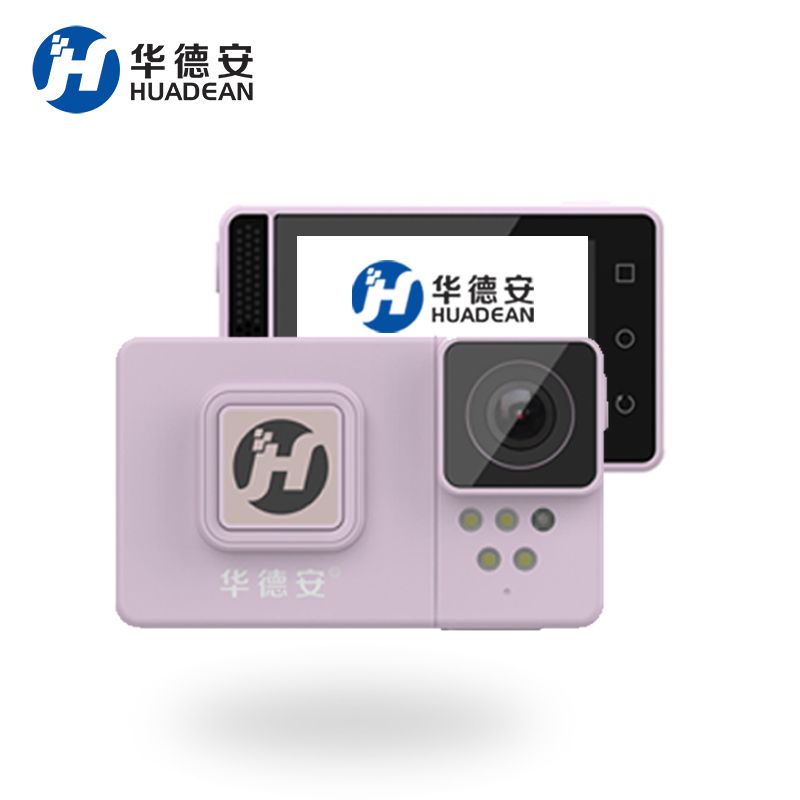

BWC-H9 Three-Key Landscape — Wearable Body-Worn Camera
BWC-H9 Three-Key Landscape
Product Specifications
This wearable recording device is equipped with a CMOS sensor and approximately 125° ultra-wide-angle lens, providing broad visual coverage for daily recording and professional applications.
| Specification | Details |
|---|---|
| Lens & Sensor | CMOS sensor with approx. 125° ultra-wide-angle lens |
| Video Resolution | 2K @ 30fps; 2304 × 1296 @ 30fps; 1920 × 1080 @ 30fps |
| Operating Time | Up to 9 hours at 1080P with a single battery; up to 18 hours with dual batteries |
| Drop Protection | Designed to withstand drops from up to 2 meters |
| Data Interface | Type-C |
| Display | 2.4-inch HD touchscreen with landscape orientation |
| Video Encoding | H.264 / H.265 |
| Storage Options | 32GB / 64GB / 128GB / 256GB / 512GB / 1TB |
| Weight | Approx. 120g |
| Dimensions | Approx. 76 × 47 × 27mm |
| Additional Features | Supports multiple wearing and mounting modes |
Key Features
-
125° Ultra-Wide Viewing Angle: Captures a wider field of view for more comprehensive video coverage.
-
Multiple Recording Options: Supports several resolution settings to meet different recording requirements.
-
Extended Battery Operation: Provides up to 9 hours of continuous 1080P recording with one battery and up to 18 hours with a dual-battery configuration.
-
Durable Design: Features 2-meter drop protection for improved reliability during daily use.
-
HD Touchscreen Control: The 2.4-inch landscape touchscreen provides convenient device operation and video management.
-
Large Storage Capacity: Offers storage options ranging from 32GB to 1TB.
-
Efficient Video Compression: Supports both H.264 and H.265 encoding formats.
-
Flexible Wearing Modes: Can be configured with different wearing options to suit various working environments.
This compact and lightweight device combines wide-angle recording, long operating time, durable protection, flexible storage options, and multiple wearing modes in a portable design.
