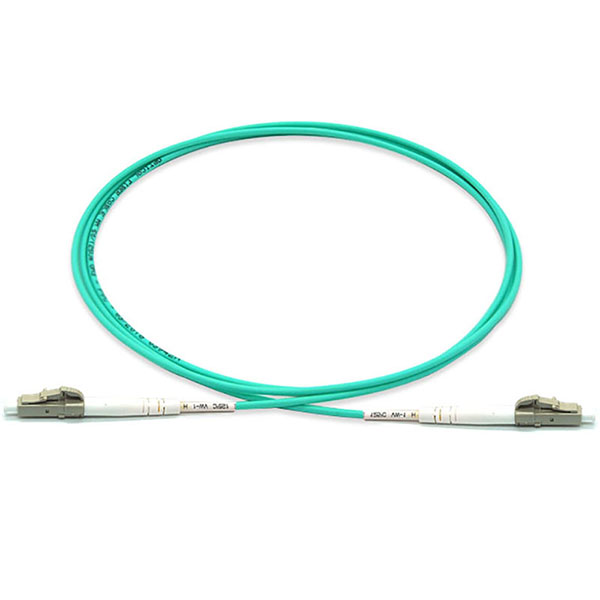

LC/UPC – LC/UPC OM3 Simplex Fiber Optic Patch Cord

Fiber optic patch cords are designed to deliver stable, low-loss optical signal transmission in modern communication networks. This product series supports both single-mode and multi-mode transmission requirements and is engineered for high reliability in telecom, data, and structured cabling environments.

Product Features

• Supports both Single Mode (9/125μm) and Multi Mode (50/125μm, 62.5/125μm) fiber types to meet different network transmission requirements.

• Customizable cable lengths available, including 0.5m, 5m, 10m, and other specified lengths based on project needs.

• Equipped with high-precision zirconia ceramic ferrules, ensuring stable alignment and long-term durability.

• Available connector polishing types:

• PC (Pre-polished Contact)

• UPC (Ultra Physical Contact)

• APC (Angled Physical Contact)
  These polishing methods reduce back reflection and insertion loss while improving connection repeatability and optical stability.

• Designed with low insertion loss, strong repeatability, high interchangeability, and excellent temperature stability, suitable for long-term deployment in demanding environments.

Application Areas

• FTTx fiber access networks

• Data transmission systems

• Telecommunications infrastructure

• CATV / LAN / MAN / WAN networks

• Testing and measurement instruments

Technical Specifications

Fiber Type Options

• Single Mode: G652D / G655 / G657A / G657A2 / G657B2 / G657B3

• Multi Mode: OM1 / OM2 / OM3 / OM4 / OM5

• Core Structure: 9/125μm, 50/125μm, 62.5/125μm

• Fiber Brand Options: YOFC, Corning, and equivalent-grade manufacturers

Optical Performance

Connector & Mechanical Structure

• Connector types: FC, SC, ST, LC, E2000, MU, MTRJ, DIN, D4, SMA, etc.

• Ferrule material: High-grade zirconia ceramic

• Ferrule concentricity:

• < 0.5 μm / < 1 μm (SM)

• < 1 μm (MM)

• Cable structure options: simplex, duplex, 4-core, 6-core, 12-core, 24-core, etc.

• Outer jacket materials: PVC / LSZH

• Cable diameter options: 0.9 mm / 2.0 mm / 3.0 mm

End Face Geometry & Polishing Parameters

• Radius of curvature:

• Φ2.5 mm UPC: 10–25 mm

• Φ2.5 mm APC: 5–15 mm

• Φ1.25 mm UPC: 7–25 mm

• Φ1.25 mm APC: 5–12 mm

• Apex offset: ≤ 50 μm

• Fiber height (spherical):

• Φ2.5 mm UPC & APC: -100 to +50 nm

• Φ1.25 mm APC: -100 to +10 nm

Mechanical Reliability

• Plug durability: > 1000 mating cycles

• Tensile strength: 100 N / 10 minutes

• Repeatability performance:

• Insertion loss variation ≤ 0.1 dB

• Return loss variation < 5 dB

Environmental Performance

• Operating temperature: -40°C to +80°C

• Storage temperature: -40°C to +80°C

• Flame resistance standard: IEC 60794-2-30

Compliance Standards

• RoHS compliant

• IEC standards compliant

• GR-326 compliant

Summary

This fiber optic patch cord series is designed for high-performance optical interconnection across telecom, data center, and industrial communication systems. With low insertion loss, stable return loss performance, and strong mechanical reliability, it ensures consistent signal integrity in both standard and harsh operating environments.
