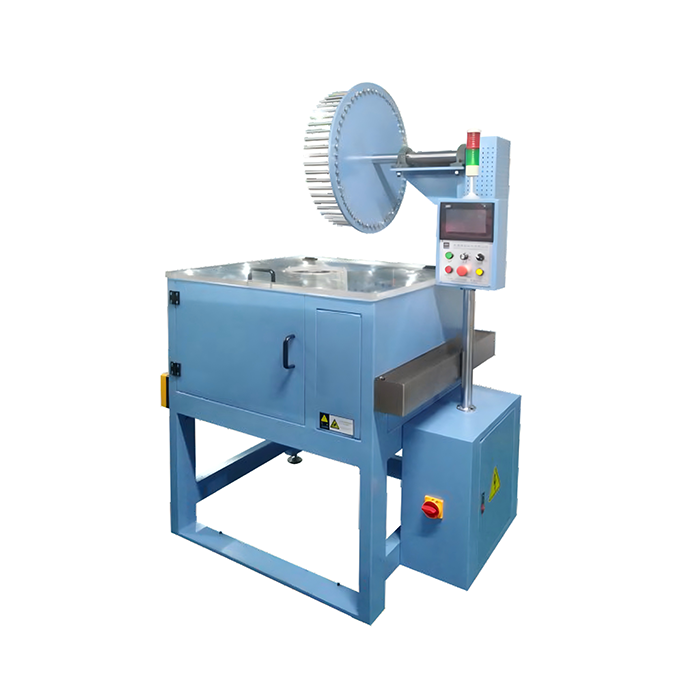

Wire Harness Braiding Machine(GB-24A1DT)
This type of braiding machine primarily handles the braiding of various split wire harnesses. The entire series adopts a CNC pitch system, enabling one-key setting for variable diameter and variable weft density. Combined with an ergonomic design, its running precision and ease of use are superior to imported equipment. A full range of models is available, covering 16 to 56 carriers for your selection.
GuanBo wiring harness braiding machine is designed for theproduction of cable
harnesses for automotive and aviationapplications. the machine is equipped with
automatic braidingpitch set up system which realizes that braiding diameter
andbraiding pitch can be easily and precisely set up on the controlpanel.With
our special ergonomic design, this model is easier tooperate than the imported
machines. The standard spindlenumber of this model is 16-56, special spindle
number can becustomized.
Guanbo's series of wire harness braiding machines are high-end, intelligent
equipment designed specifically for processing complex bifurcated wire
harnesses. With their exceptional flexibility, precise braiding control, and
user-friendly operation, these machines are widely used for shield braiding in
automotive wiring harnesses, military cables, and precision electronic
cables.
|
Model |
GB-24/32/48A1DT |
|
Speed of the Horngear |
400rpm |
|
Motor Power |
0.55kw/0.75kw/1.1kw |
|
Braiding Diameter |
≤6mm/≤10mm/≤15mm |
|
Braiding Pitch |
5-30PPI |
|
Braiding Material |
Chemical fiber |
|
Bobbin Volume |
A3:Φ47*140mm/210cc |
