V16

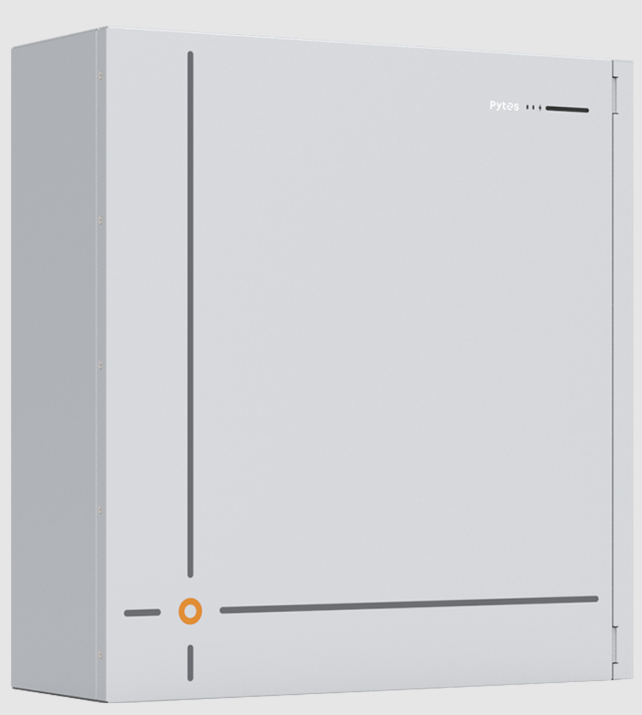

Pytes V16 – a breakthrough in home and commercial energy storage. Built for those who demand more power, more capacity, and more resilience.
-
Enhanced Safety
Tier 1 automotive-grade 314 Ah cells
Built-in aerosol fire suppression system
ESS emergency shutdown function
Proven and mature BMS protection mechanisms
-
ReliableIP66 enclosure
C4-M corrosion resistance
Self-heating function for low-temperature operation
UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3
-
Easy & FlexibleWall-mounted or floor-mounted installation
Seamless integration with mainstream inverters via closed-loop control
Remote monitoring and upgrading
Suitable for indoor or outdoor applications
-
ScalableExpandable up to 16 units (256 kWh) in parallel without a Pytes Hub
| Battery Model | V16 |
|---|---|
| Electrical | |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
|
Rated Voltage |
51.2V |
| Voltage Range | 314Ah |
| Rated Energy | 16kWh |
| Recommended Discharge Current | 150A (7.68kW) |
| Recommended Charge Current | 125A (6.4kW) |
| Max Continuous Charge/Discharge Current | 200A (10.24kW) |
| Peak Discharge Current |
300A (15.36kW)@15s |
| General | |
| Dimensions(L x W x H) |
27.10 ± 0.08 × 10.24 ± 0.08 × 27.56 ± 0.08 inch / 688.4 ± 2.0 × 260 ± 2.0 × 700.0 ± 2.0 mm |
| Weight(lb / kg) | 280 / 130.5 |
| Ingress Protection Rating | IP66 |
|
Mounting Method1 |
Wall/ Ground （W/Optional Battery Tray） |
| Terminal | Phoenix Plug & Play DC Connector |
| Communication Ports | CAN / RS485 / RS232 / Dry Contact / WiFi |
| Cycle Life2 | 8000 Cycles |
| Warranty3 | 10 Years |
| Internal Heating Film | |
| Rated Input Voltage |
51.2 Vdc |
| Rated Power | 500W |
| Control Temperature |
On:≤41 °F (5 °C) |
| Environmental | |
| Charging Temperature4 | 32 °F ~ 131 °F (0 °C ~ 55 °C) |
| Discharging Temperature | -4 °F ~ 131 °F (-20 °C ~ 55 °C) |
| Recommended Operating Altitude | ≤9843 ft (3000 m) |
| Relative Humidity | 0 ~ 95%, Non-condensing |
| Compliance | |
| Certifications | UL 9540 Ed.3 (2023), UL 9540A, UL 1973, UN 38.3 |
1. Floor installation requires the additional purchase of a ground mounting bracket.
2. Operating conditions: 77 °F土7 °F (25 °C土4 °C), 0.5 C/0.5 C@ 90% DOD, ret @70% (EOL). Total throughput energy: (51.2 Vx314 Ah / 1000 x 80% x 8000 / 1000)x90%=92 MWh.
3. 10 years or 8000 cycles (whichever comes first). Optional 2 year warranty extension available for purchase.
4. When the ambient temperature is between-0.4°F (-18 °C) and 32 °F (0 °C), the heating film will activate to warm the battery until the temperature reaches the battery charging temperature range.
External charging source (PV, grid, generator) is required for heating film operation.
