TrackScan-P Optical 3D Tracking Scanner
TrackScan-P Optical 3D Tracking Scanner can be equipped with a fill light module to provide more uniform illumination and support accurate measurement of circles, slots
Product Introduction

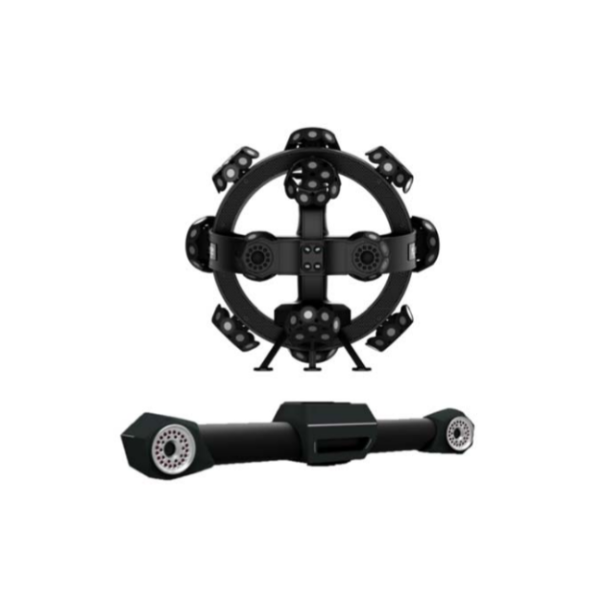

TrackScan-P Optical 3D Tracking Scanner consists of a 3D scanner and an i-Tracker optical tracker. It uses intelligent optical tracking measurement technology and is equipped with a high-resolution smart camera. It can complete ultra-high-precision dynamic 3D measurement without sticking points. It can meet the diverse needs of quality control, product development, reverse engineering, automated measurement, etc. in the aerospace, automobile manufacturing, rail transportation, mold manufacturing and other industries.
TrackScan-P series 3D scanning system can be equipped with fill light module, which can provide more uniform illumination and support accurate measurement of circles, grooves and machined holes of sheet metal parts. The tracking measurement light pen can accurately obtain the boundary, circle, groove and other features of the workpiece; it works in collaboration with the robot to achieve intelligent online automated batch 3D inspection.
Product Details
|
model |
TrackScan-P550 |
TrackScan-P542 |
|
|
Scan Mode |
High-speed scanning |
42 crossed blue laser lines |
34 cross-beam blue laser lines |
|
Detailed Scan |
7 parallel blue laser lines |
||
|
Deep hole scanning |
Additional 1 blue laser line |
||
|
Accuracy |
Higher 0.025 mm |
||
|
Maximum scanning rate |
2,600,000 measurements/second |
2,200,000 measurements/second |
|
|
Larger scanning area |
500 mm × 600 mm |
||
|
Laser Type |
ClassⅡ (eye safety) |
||
|
Higher resolution |
0.020 mm |
||
|
Volume accuracy |
10.4 m³ |
0.060 mm |
|
|
18 m³ |
0.075 mm |
||
|
Volume accuracy (with MSCAN global photogrammetry system) |
0.044 mm + 0.012 mm/m |
||
|
T-Probe tracking measurement light pen single point repeatability |
0.030 mm |
||
|
Hole position accuracy |
0.050 mm |
||
|
Scan object size range (recommended) |
100–8000 mm |
||
|
Reference distance |
300 mm |
||
|
Depth of Field |
400 mm |
||
|
Output Format |
.stl, .ply, .obj, .igs, wrl, .xyz, .dae, .fbx, .ma, .asc, etc., customizable |
||
