TL26 series

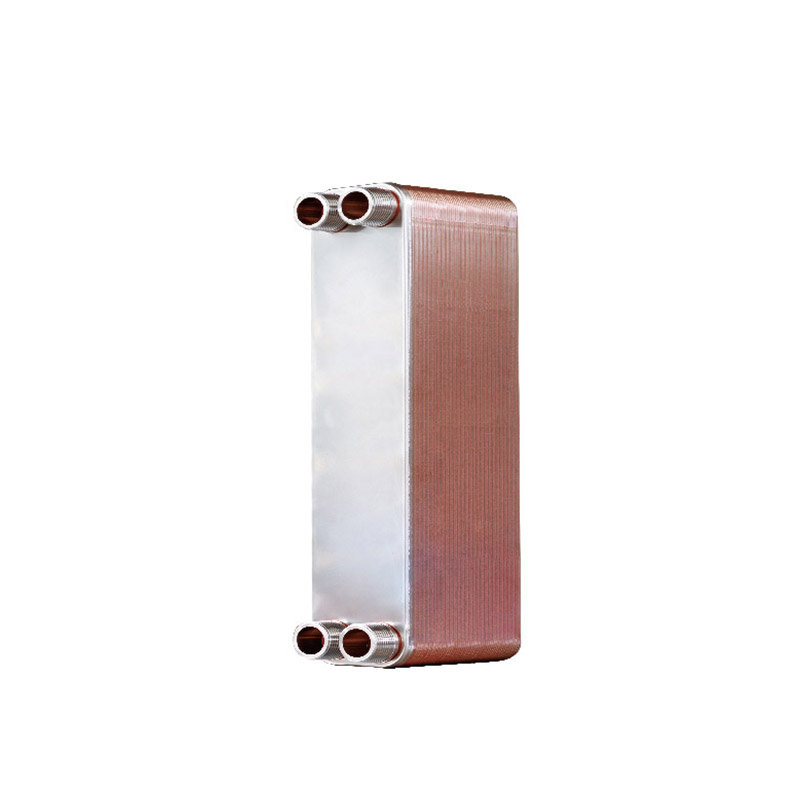

The TL26 brazed heat exchanger covers a cooling capacity range of 4~25KW and can be used as a condenser and evaporator, as well as a subcooler and superheater.
TL26 series

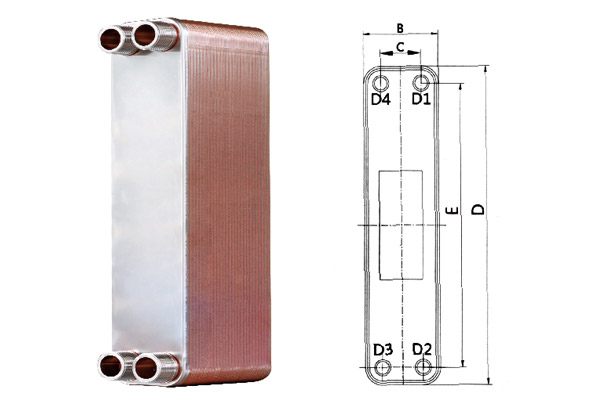

| Model | B(mm) | C(mm) | D(mm) | E(mm) |
| TL26 | 111 | 50 | 310 | 250 |
| Technical parameters | Thickness(mm) | Weight(kg) | Stagnant liquid volume (L) | Design pressure (Mpa) | ******Flow(L) | Design temperature(℃) |
| TL26 | 10+2.36N | 1.3+0.12N | 0.025(N-2) | 3/4.5 | 18m³/h | -196~225 |
