Six Axis Industrial Robot BRTIRUS3511A
Six Axis Robot BRTIRUS3511A
Arm span: 3500mm
Load: 100kg
Six Axis Handling Robot Product Details
BRTIRUS3511A is a six-axis robot developed by Bronte for certain monotonous, frequent and repetitive long-term operations, or operations in dangerous and harsh environments. It has a 3500mm arm span and a maximum load of 100kg. With the flexibility of multiple degrees of freedom, it can freely handle scenarios such as loading and unloading, handling, and palletizing. High protection level: IP50, dust proof. High precision: Repeat positioning accuracy ±0.2mm.
Main Specification
Arm span (mm): 3500
Repeat positioning accuracy (mm): ±0.2
Maximum load (KG): 100
Power capacity (KVA): 28
Weight (KG): about 1350
|
Project |
Scope |
Maximum Speed |
|
|
Arm |
J1 |
±160° |
85°/S |
|
J2 |
-75°/+30° |
70°/S |
|
|
J3 |
-80°/+85° |
70°/S |
|
|
Wrist |
J4 |
±180° |
82°/S |
|
J5 |
±95° |
99°/S |
|
|
J6 |
±360° |
124°/S |
|
No further notice if the specification and appearance are changed due to improvement and other reasons. Thank you for your understanding.
Related products
-
Customized Automatic Repair Zipper Fast Door Manufacturer
Contact UsFast opening and closing speed: The opening speed of the turbo fast door can reach 2.5 meters per second, and the opening speed is fast. It is very suitable for the logistics channel occasions that require frequent opening and closing, and effectively improves the logistics efficiency.
-

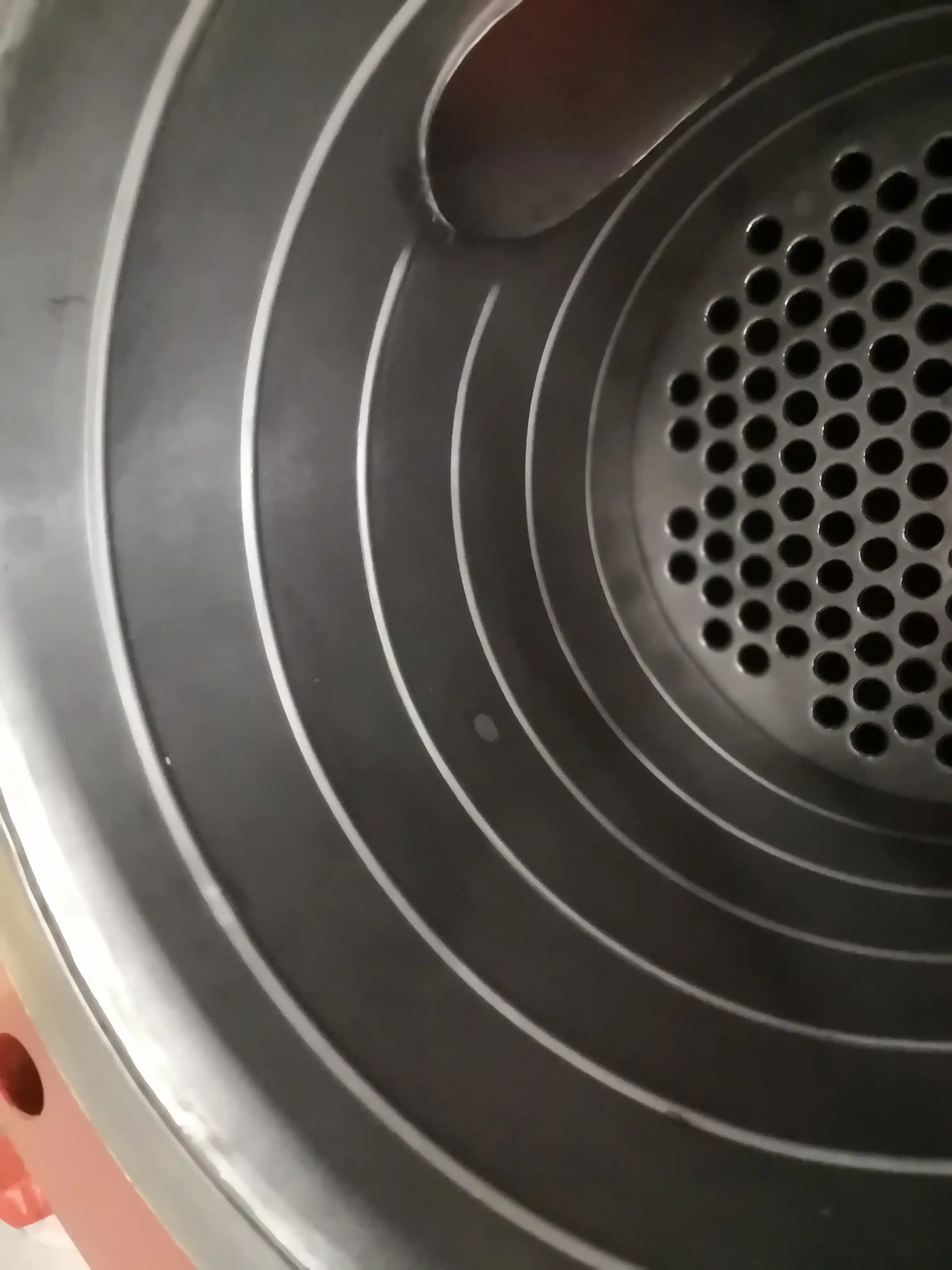

Gas-water heat exchanger
