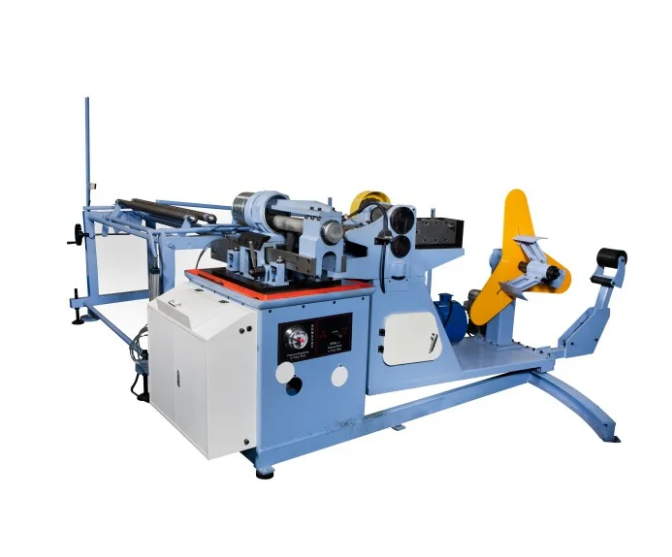

Spiral Tube Former
A spiral duct machine is specialized equipment for manufacturing spiral ducts-essential for heating, ventilation, and air conditioning (HVAC) systems. Duct material is fed through rollers to form a sp
A spiral duct machine is specialized equipment for manufacturing spiral ducts-essential for heating, ventilation, and air conditioning (HVAC) systems. Duct material is fed through rollers to form a spiral, whose edges are joined via specialized welding or fastening. The finished spiral ducts outperform traditional rectangular ductwork in airflow, noise reduction, and energy efficiency.
Spiral Duct Machine's Features:
Spiral duct machine is used for producing HVAC round duct. Spiral duct is made of metal strip rolled into a spiral bite wall of the thin tube, round, no welding, no leakage. The spiral duct machines produced by HCY company have high yield and stable pipe diameter, and good bite, good sealing, long-term innovation.
-
Spiral duct machine with patented mold which has its own patent and easy to adjust, save the metal strip.
-
High-speed synchronous cutting system
-
PLC control
-
Can be on-site construction
-
Can be adjusted
-
High-quality products, high-quality services
-
The system can handle galvanized sheet, aluminum
-
automatic roll out of equipment
-
Can produce a variety of different diameter spiral tube
|
Machine name and model |
HVAC strip spiral duct making machine HCY-2000 |
|
Diameter of duct(mm) |
100-2000 |
|
Sheet thickness(mm) |
galvanized steel 0.4-1.3 stainless steel 0.4-0.8 |
|
Material width(mm) |
137 |
|
production speed |
1-30m/min |
|
Cutting System |
The patented flying slitter |
|
Power(kw) |
galvanized steel 04-1.3 stainless steel 0.4-0.8 |
|
Weight(T) |
1.75 |
|
Dimension L*W*H (mm) |
3600*1800*1500 |
Technical Parameters
|
Name |
Spiral duct machine HCY-1500 |
|
Diameter range |
Φ80-Φ1500mm |
|
Tube length |
100-12000mm |
|
Strip width |
137mm |
|
Lock seam |
Outside tube,on the inside on request |
|
Material Galvanized sheet |
0.4-1.2mm |
|
Strip speed |
60m/min adjustable |
|
Dimension |
3900x3550x1800mm |
|
Weight |
2000kg |
|
Control system |
PLC automatic control |
|
Main motor power |
16.5KW |
|
Electrical |
380V/50HZ/3PH Voltage customized |
This type of spiral duct machine with 5 sets molds, and no adjusting.
FAQ
Q: Factory or trading company?
A: Professional direct manufacturer.
Q: Not sure how to operate the machine?
A: Multiple support options:
Attached detailed operation manual.
Our engineers on-site, or your team trained at our factory.
24/7 Phone & Email support.
Q: What payment terms do you accept?
A: Support T/T, L/C, Western Union. Other methods negotiable by mutual agreement.
Q: Machine warranty period?
A: 1 year.
Main parts: high tool steel with special quenching (anti-corrosion, wear-resistant).
Free replacement for quality-related broken parts.
Q: Do you have stock?
A: Yes. Over 100 units in stock for quick delivery.
Q: How do you control quality?
A: Quality first. Strict control through the entire production process.
Q: Shipping cost from China to us?
A: Sea/air to your port/door. Provide your nearest port/address (with postcode) for quote. Reliable agents ensure safe, on-time delivery.
