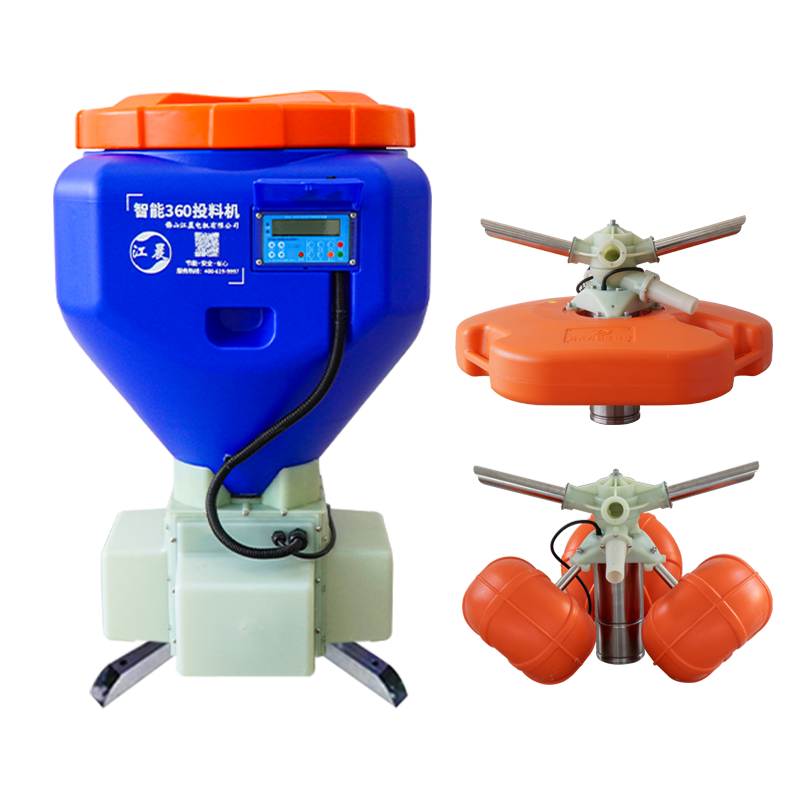

Single-Phase 360° Wind-Fed Feeder

1. Product Overview

Model A is a single-phase 360° wind-fed feeder tailored for small-to-medium
aquaculture ponds , operating on 220V household power (no three-phase power
required) while delivering full-range 360° feed distribution. Built with a
weatherproof shell and a rotating wind-conveying mechanism, it combines
single-phase accessibility, 360° coverage, and wind-driven uniformity—making it
a cost-effective, user-friendly choice for farmers seeking all-around feeding
without complex equipment.

2. Core Features

• Single-Phase Power & 360° Coverage: Runs on 220V 50Hz single-phase
power (≤12W consumption) for universal use; the wind-conveying nozzle rotates
360° automatically ，to spread feed evenly across the entire pond, eliminating
blind spots and ensuring all aquatic organisms have access to feed.

• Wind-Driven Uniform Dispensing: Equipped with a low-noise axial fan , the
feeder propels feed (0.3–5mm particle size) to an 8–13m radius. Wind pressure is
adjustable (2 gears) to adapt to light floating pellets or dense sinking feed,
preventing clumping and minimizing waste.

• Durable & Safe Design: IP65 waterproof/dustproof shell protects
internal components from pond moisture and dust; the 360° rotating mechanism
uses a corrosion-resistant plastic gear (service life ≥3 years); feed-contact
parts are food-grade PP to avoid contamination.

3. Technical Parameters

4. Product Advantages

• Single-Phase Accessibility: Runs on standard household power, avoiding the
cost of three-phase power installation—ideal for rural or small-scale farms.

• 360° Full Coverage: Automatic rotation ensures no feeding blind spots,
improving feed utilization rate by 10–15% compared to fixed-direction
feeders.

• Low Cost & Labor-Saving: automated timing eliminates manual feeding,
saving 1–2 hours/day of labor.

• Versatile Application: Compatible with floating/sinking pellets, crushed
grains—suited for tilapia, shrimp, carp, and other common aquaculture
species.

5. Application Scenarios

• 400–700㎡ Ponds: Perfect for small-to-medium ponds raising mixed
fish/shrimp, where full-range feeding is needed.

• Small Commercial Farms: Suited for farmers with limited power access but
requiring uniform, automated feeding.

• Hobbyist Aquaculture: Easy to operate for backyard pond owners seeking
efficient, low-maintenance feeding equipment.

6. Operation & Maintenance

• Operation: Fill the hopper, set cycles/timing/output via the digital panel,
adjust wind gear— the feeder runs automatically with 360° rotation.

• Maintenance: Empty residual feed daily; wipe the nozzle/hopper weekly;
lubricate the rotation gear quarterly (with neutral oil) to extend service
life.
