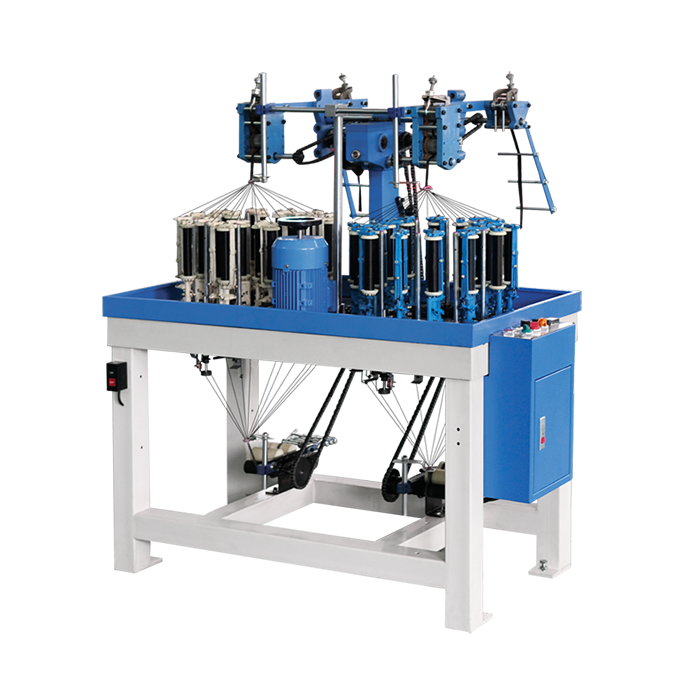

Series A Rope Braiding Machine(GB-21A02S)
The Guanbo A Series twin-head, 21-spindle rope and webbing machine features an innovative “dual-head linkage” design, combining high efficiency, performance, and adaptability.
|
Model |
GB-21/25/33A02S |
|
Speed of the Horngear |
400rpm |
|
Motor Power |
0.75kw |
|
Braiding Diameter |
≤12mm |
|
Braiding Pitch |
5-30PPI |
|
Output Speed |
120m/h(10PPI) |
|
Braiding Material |
Chemical fiber |
|
Bobbin Volume |
A3:Φ47*140mm/210cc |
