Q-Flex High-Temperature Accelerometer

In modern energy exploration, especially in logging-while-drilling (LWD) and cable logging operations, equipment must operate reliably under extreme downhole conditions. High temperature, vibration, and pressure can severely affect measurement accuracy. To address these challenges, Honeywell provides its advanced QAT and Mini Q high-temperature accelerometers, designed specifically for oil and gas applications.

Built on Aerospace-Grade Q-Flex Technology

At the core of these accelerometers is Honeywell’s proven Q-Flex etched quartz bending inertial system, originally developed for aerospace-grade navigation systems. This technology uses amorphous quartz calibrated mass structures to ensure extremely stable performance in harsh environments.

Key benefits include:

• Excellent bias stability

• High scale factor accuracy

• Strong axis alignment stability

These features make the sensors highly reliable for both static and dynamic acceleration measurements in downhole conditions.

Product Range Designed for Extreme Temperatures

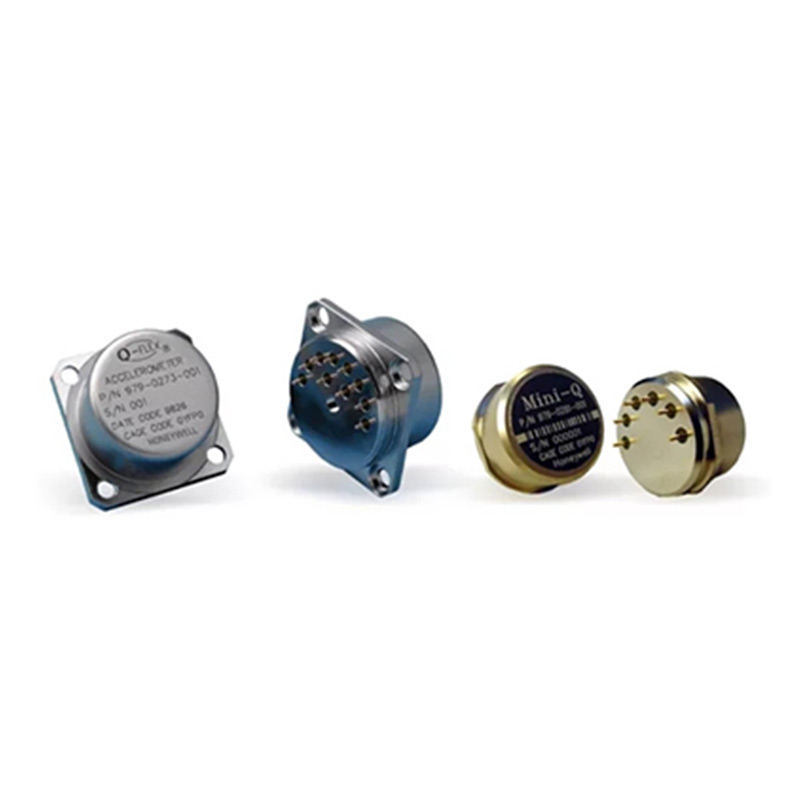

Honeywell offers multiple models to meet different operational requirements:

• QAT Series: 160°C and 185°C operating ranges

• Mini Q Series: 150°C, 185°C, and 200°C operating ranges

Each model is engineered for specific temperature thresholds, ensuring flexibility across a wide range of energy exploration environments.

Advanced Signal Output and Customization

The QAT and Mini Q accelerometers generate a current output proportional to acceleration, which can be converted into a voltage signal using an external load resistor. This allows users to easily adjust the measurement range according to application needs.

In addition, the devices include:

• Integrated current-output temperature sensors

• Advanced thermal compensation algorithms

• Improved bias and scale factor stability under temperature variation

These features significantly enhance measurement precision in fluctuating downhole conditions.

Reliable Performance in Harsh Environments

Honeywell designs its Q-Flex accelerometers with a strong focus on durability and long-term reliability. Rigorous manufacturing standards and strict quality control ensure stable performance even in extreme oilfield environments.

Performance comparison highlights:

• One-year repeatability down to 1 mg – 1.8 mg

• Operating temperatures up to 200°C (Mini Q 200)

• Temperature tolerance up to 215°C in certain models

This makes them highly suitable for continuous operation in challenging energy exploration scenarios.

Key Advantages for Oil & Gas Applications

Honeywell QAT and Mini Q accelerometers offer several critical advantages:

• High-temperature resistance for downhole environments

• Low-power electronic design for energy efficiency

• Built-in self-test functionality for system reliability

• Internal temperature sensor for precise thermal compensation

• Adjustable measurement range via external configuration

• Rugged aerospace-grade construction for long service life

Optional mounting configurations (square or round flange on QAT models) further enhance installation flexibility.

Ideal Applications in Energy Exploration

These accelerometers are widely used in:

• Logging-while-drilling (LWD) systems

• Wireline and cable logging tools

• Oil and gas exploration instruments

• Downhole directional measurement systems

• High-temperature industrial sensing platforms

Their precision and reliability make them a preferred choice for engineers working in extreme subsurface environments.

Conclusion

The Honeywell QAT and Mini Q high-temperature accelerometers combine aerospace-grade engineering with rugged oilfield durability. With exceptional thermal resistance, stable performance, and flexible configuration options, they provide a trusted sensing solution for modern energy exploration technologies.

For applications where accuracy and reliability cannot be compromised, Honeywell’s Q-Flex-based accelerometers continue to set the industry benchmark.
