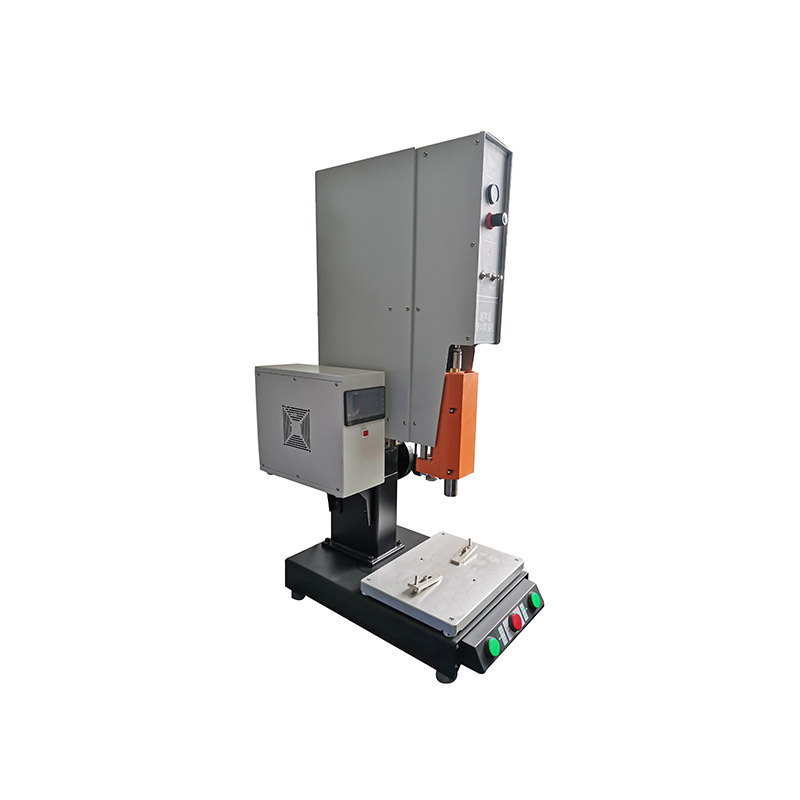

Precision ultrasonic welding machine

1、 Product Overview

The HC series precision ultrasonic welding machine focuses on the needs of
high-precision plastic welding scenarios, integrates CNC machining processes,
multiple circuit protection designs, and high-quality imported core components.
With "high-precision positioning, stable output, and convenient debugging" as
its core advantages, it is suitable for production scenarios with high
requirements for welding accuracy and consistency, while balancing efficiency
and quality controllability.

2、 Core product features

The key structural components of the entire machine are processed using
integrated CNC machine tools, with a machining tolerance of ≤± 0.01mm. The
assembly accuracy of the machine body is high, which helps to improve welding
consistency and reduce production defects;

Optimize the circuit design, equipped with a frequency automatic compensation
circuit (compensation range ± 0.3kHz), and matched with a triple protection
circuit for overcurrent, overvoltage, and phase (overcurrent protection
threshold can be accurately set), effectively avoiding the impact of voltage
fluctuations and load abnormalities on equipment and welding performance;

Equipped with Japanese imported piezoelectric ceramic transducers, the energy
conversion efficiency is ≥ 93%, and the output energy fluctuation is ≤± 1.5%,
ensuring the stability and continuity of the welding process;

Adopting titanium alloy amplitude transformer (material grade: TC4), hardness
≥ HRC35, wear-resistant and corrosion-resistant, service life ≥ 10000 hours,
suitable for high-frequency precision welding requirements;

Adopting a square column+linear sliding rail guiding structure, coupled with
a precision fine-tuning device (adjustment range ± 0.1mm, adjustment accuracy
0.005mm), the welding head is accurately positioned and runs smoothly without
deviation;

The bottom plate adopts an adjustable design, supporting knob style quick
adjustment (adjustment stroke ≥ 20mm), and the mold installation and debugging
process is convenient, which can shorten the mold replacement time;

Adopting a split structure design, the electrical control unit is physically
separated from the welding actuator to reduce signal interference and vibration
transmission during operation, ensuring the stability of precision welding;

The core electrical components are all selected from high-quality imported
components in the industry (such as imported PLC controllers, Omron relays,
Schneider Electric components), and undergo a triple quality control process of
"24-hour component aging testing+36 hour continuous operation testing of the
whole machine+precision calibration" to ensure stable product quality.

3、 Product parameters

Specification and model HC-2020 HC-1526

Ultrasonic rated power 2000W 2600W

Ultrasonic frequency 20kHz 15kHz

Automatic frequency compensation range ± 0.3kHz ± 0.3kHz

Welding repeat positioning accuracy ≤± 0.005mm ≤± 0.005mm

Fine tuning device adjustment range ± 0.1mm ± 0.1mm

Bottom plate adjustment stroke ≥ 20mm ≥ 20mm

Power requirement: AC 220V 50Hz AC 220V 50Hz

4、 Applicable scenarios

The equipment, with its high-precision welding performance, is widely
suitable for industries and products that require high welding accuracy and
consistency

Electronics industry: Welding of micro electronic components, precision
circuit board components, and small sensor housings;

Medical industry: welding of small medical consumables (such as syringe
components, test paper shells), precision medical instrument plastic
accessories;

Optical instrument industry: fixed welding of lens housings and optical
components;

Watch/eyewear industry: precision splicing of watch plastic shells and
eyewear frames;

Precision plastic parts industry: Non overflow welding of small precision
plastic structural components and thin-walled plastic products.
