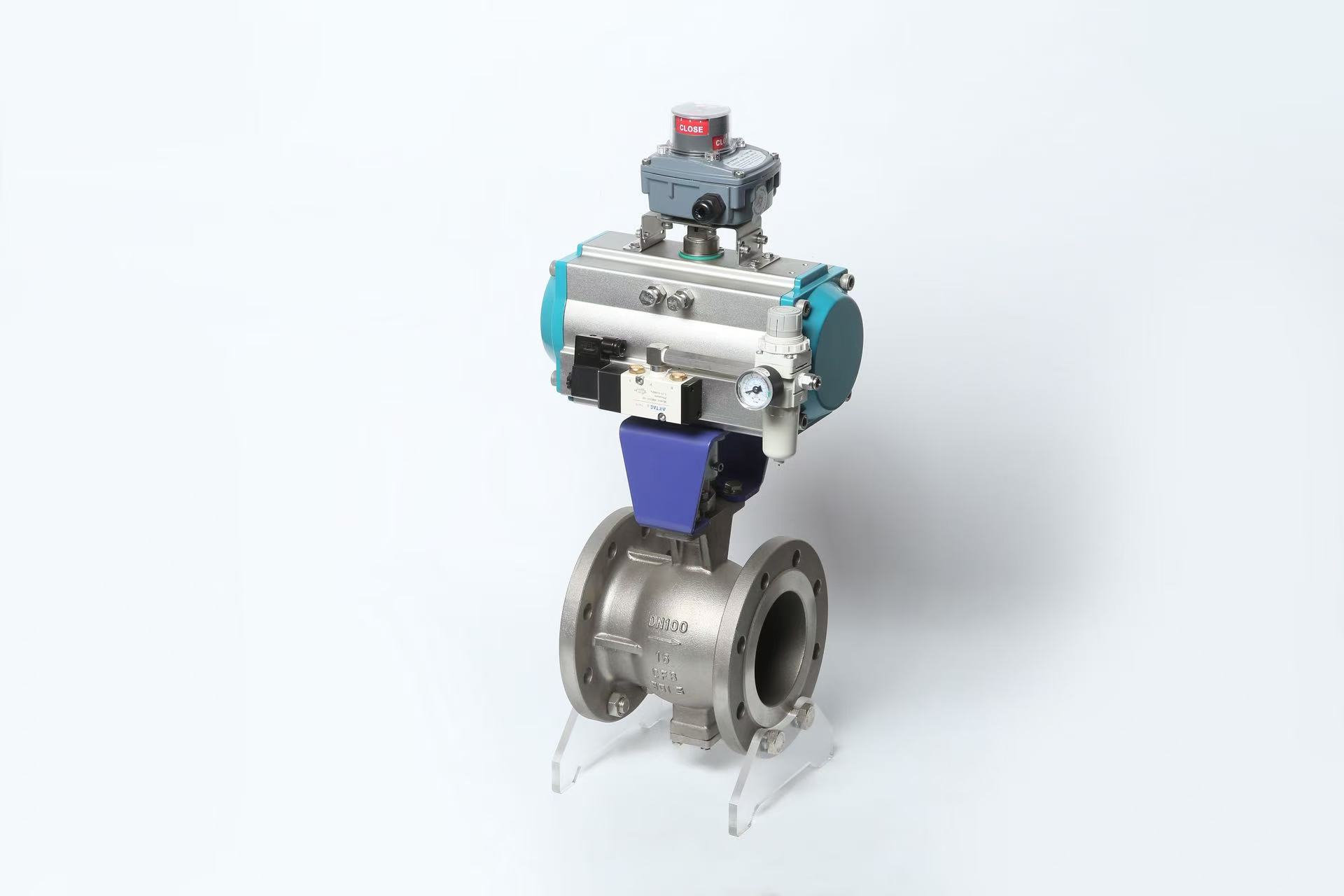

Pneumatic V-Port Ball Valve
The pneumatic V-port ball valve is a valve driven by compressed air, consisting of a pneumatic actuator and a V-port ball valve.
The pneumatic V-port ball valve is a valve driven by compressed air, consisting of a pneumatic actuator and a V-port ball valve. Its valve core (ball) has a V-shaped notch. When rotating, it can precisely regulate the flow. It can also rely on the shearing action of the V-shaped notch to effectively cut off fibrous and granular media. With good sealing performance and high regulation precision, this valve is widely used in industrial fields such as petroleum, chemical engineering, and papermaking, where there are relatively high requirements for flow control and medium cutoff.
| Model NO. | Q670F |
| Driving Mode | Pneumatic |
| Connection Form | Wafer Type |
| Nominal Pressure | ANSI CLASS 150-900 |
| Temperature | -40°c~300°c |
| Standard | ANSI; JIS; DIN |
| Rotary Angle | 90 Deg C |
| Application | Industrial Usage |
| Specification | DN25-500mm |
