Pneumatic Diaphragm Stop Valve
Pneumatic diaphragm stop valve
|

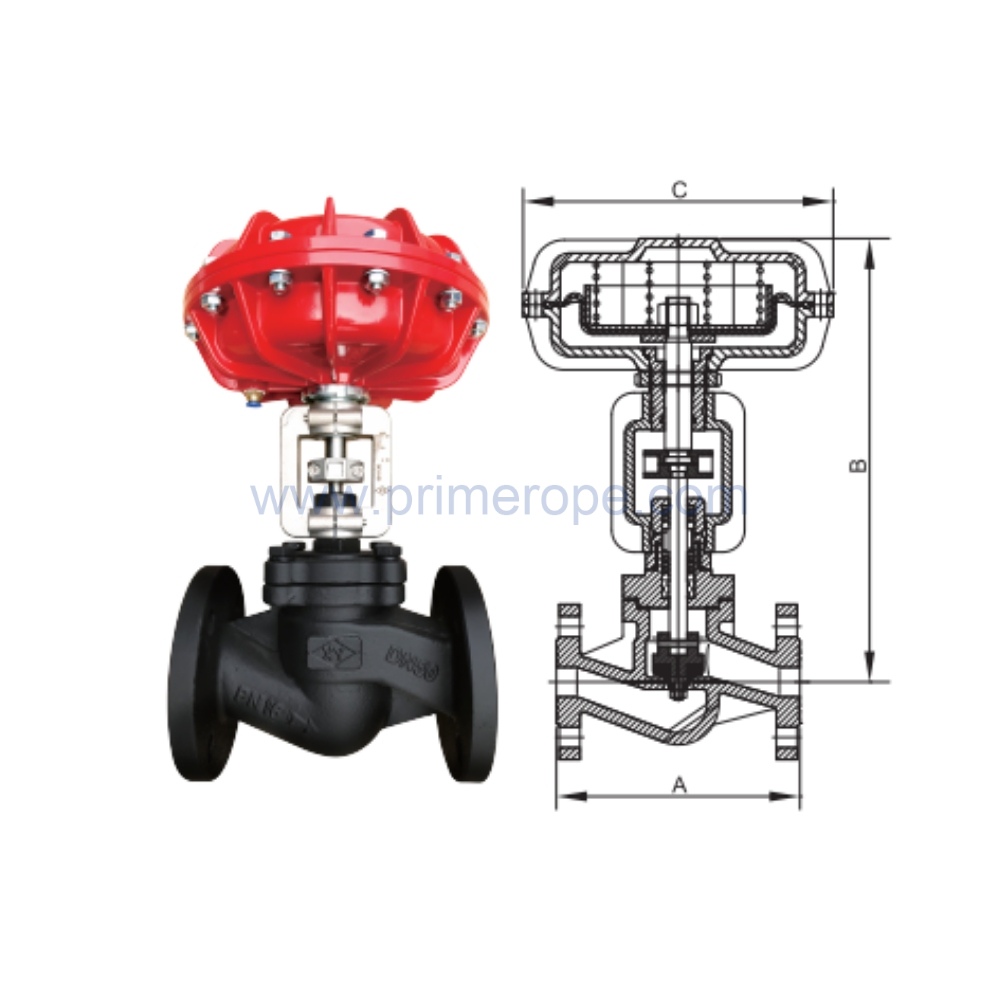

SIZE |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
|
3/4” |
1” |
1 1/4” |
1 1/2” |
2” |
2 1/2” |
3” |
4” |
5” |
|
|
A |
165 |
165 |
190 |
195 |
215(230) |
230(290) |
260(310) |
275(350) |
400 |
|
B |
300 |
300 |
305 |
328 |
333 |
343 |
363 |
425 |
576 |
|
C |
210 |
210 |
210 |
242 |
242 |
242 |
288 |
288 |
335 |
