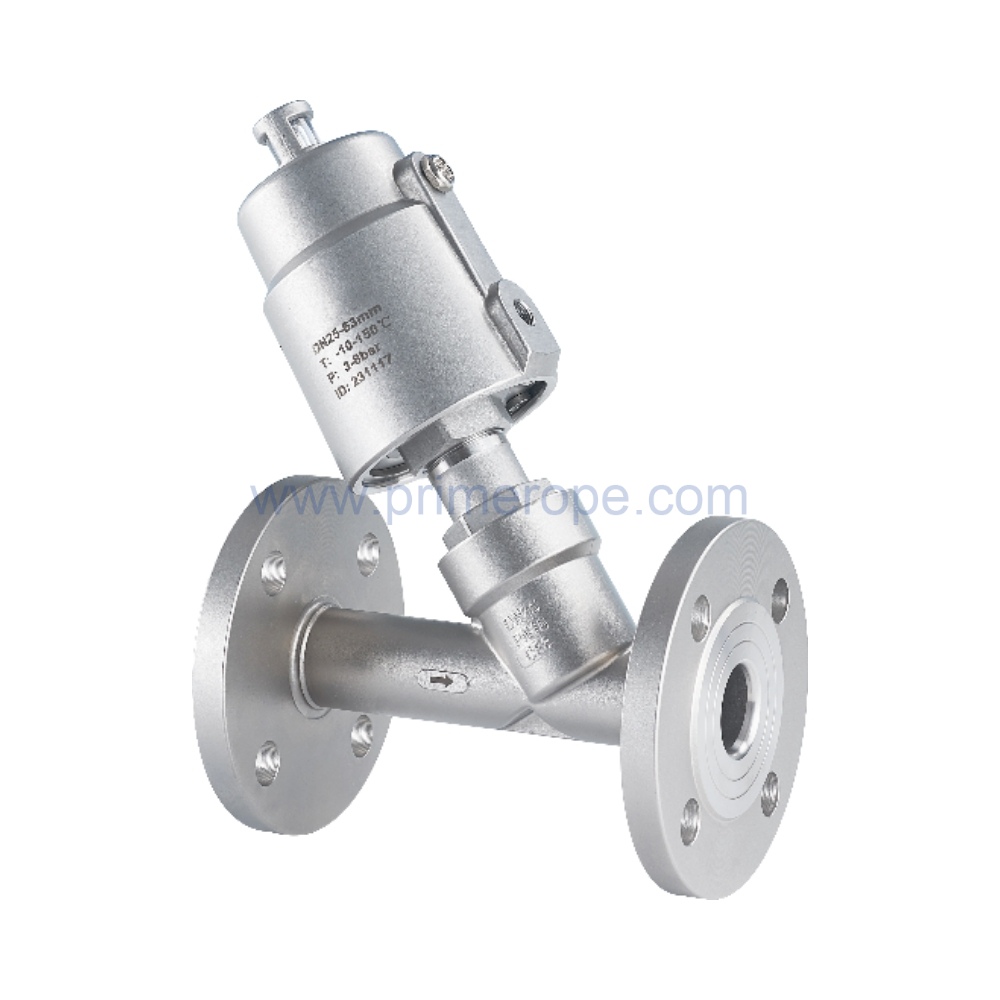

Pneumatic Angle Seat Valve
Valve body: CF8, CF8M, SS316L, 2205
Actuator: stainless steel
Seat sealing: PTFE, RPTFE, PEEK
Valve stem seal: PTFE, FKM, RPTFE
Piston seal: FKM, NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), optional vacuum as low as -0.9bar
Control pressure: 2-10bar
Control medium: clean compressed air, neutral gas, temperature: ≤ 60 ℃
External temperature (environment): -10 ℃~+80 ℃
Applicable media: water, neutral gases or liquids, alcohol, oil, fuel, steam, organic solvents, acid-base solutions, etc
Medium temperature: -10 ℃~+180 ℃ (PTFE room temperature type)
+25 ℃~+220 ℃ (PTFE high-temperature type)
Maximum viscosity: 600cst (mm2/s)
Valve leakage level: DIN EN 12266 Class A
Note: * The dimensions are the blank design dimensions (the actual dimensions may vary, for reference only)
|
Specification |
Actuator mm |
E |
H |
A |
L |
φD* |
S* |
|
DN10 |
50 |
60 |
141 |
140 |
70 |
17.4 |
3.8 |
|
DN15 |
50 |
60 |
141 |
140 |
70 |
22 |
3.25 |
|
DN20 |
50 |
60 |
145 |
149 |
80 |
27 |
3.75 |
|
DN25 |
63 |
75 |
167 |
174 |
100 |
34 |
4.25 |
|
DN32 |
80 |
94 |
200 |
217 |
125 |
39 |
3.75 |
|
DN40 |
80 |
94 |
200 |
217 |
130 |
45 |
3.75 |
|
DN50 |
80 |
94 |
208 |
229 |
150 |
57 |
3.75 |
Technical parameters
Interface nominal diameter: DN8-DN100 (1/4"-4")
Connection method: thread, welding, quick-install, flange, other methods for customized consultation
Valve body: CF8, CF8M, SS316L,2205
Actuator: stainless steel
Valve seat seal: PTFE, RPTFE, PEEK
Valve stem seal: PTFE, FKM, RPTFE
Piston seal: FKM, NBR
Nominal pressure (working pressure): 0-16bar (0-232Psi), vacuum as low as -0.9bar optional
Control pressure: 2-10bar
Control medium: clean compressed air, neutral gas, temperature: ≤60℃
External temperature (environment): -10℃ ~ +80℃
Applicable media: water, neutral gas or liquid, alcohol, oil, fuel, steam, organic solvent, acid and alkali solution, etc.
Medium temperature: -10℃~+180℃ (PTFE normal temperature type)
+25℃~+220℃ (PTFE high temperature type)
Maximum viscosity: 600cst(mm2/s)
Valve leakage level: DIN EN 12266 Class A
Features
1. Compact structure, high flow capacity;
2. Simple and fast commissioning;
3. Automatic stem correction (self-adjusting), self-lubricating, maintenance-free;
4. Visual position indicator rod;
5. Very suitable for high-frequency switching and quantitative operation;
6. Good adjustment characteristics;
7. The cylinder is made of stainless steel, performs well in harsh environments, has modular accessories, can be rotated 360°, and has a low maintenance rate. Stainless steel is particularly durable on steam and corrosive applications; has durable and reliable sealing elements, good sealing, tight closing, and long life;
8. Can be installed in any position (upward, flat or tilted), the cylinder is more suitable for upright position.
