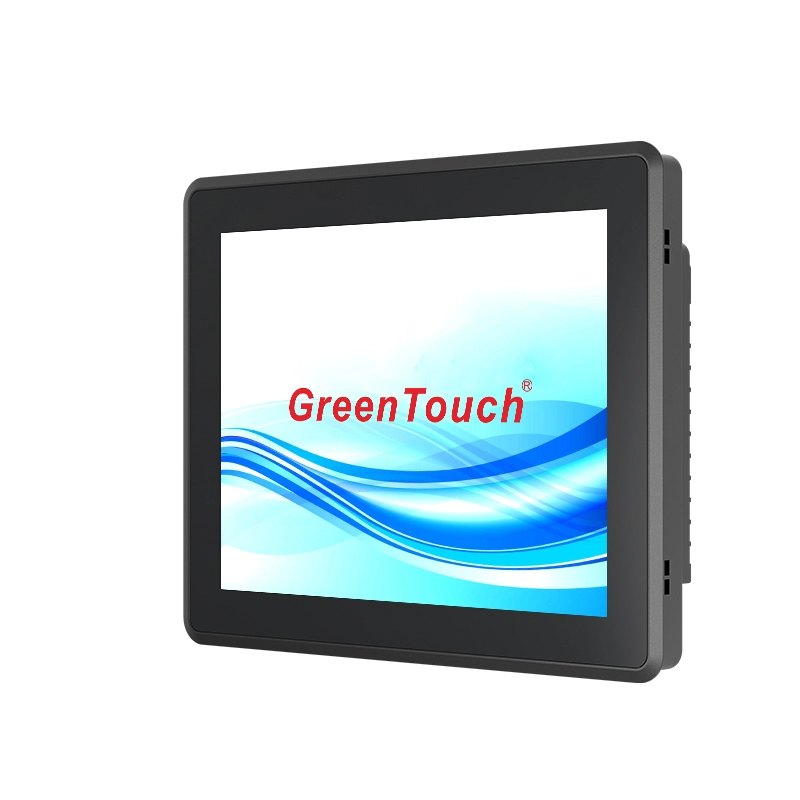

Panel Mount Touch Monitor 10.1-23.8 Inches (3D Series)

Product Introduction

Panel Mount Touch Monitor 10.1-23.8 Inches (3D Series) is an industrial-grade touch display designed for applications requiring reliable operation, durable construction, and flexible installation. Featuring a seamless aluminum unibody housing, fully sealed structure, and optically bonded touch panel, the 3D Series is built to withstand demanding operating environments.

The monitor is available in multiple screen sizes and aspect ratios, making it suitable for industrial automation, smart manufacturing, medical and laboratory equipment, transportation systems, outdoor and public facilities, retail, food service, energy, and utility applications.

Its rugged aluminum alloy enclosure provides corrosion resistance and interference resistance, while the fanless finned rear cover improves heat dissipation without generating additional operating noise.

Key Product Features

Seamless Aluminum Unibody Housing

The bezel and rear cover are manufactured from high-quality aluminum alloy using a custom die-casting process. The seamless unibody structure provides a robust enclosure for demanding industrial environments while supporting effective corrosion resistance.

Fully Sealed Construction

The fully enclosed housing helps prevent water, dust, dirt, and other contaminants from entering the monitor. With IP65 front protection, the 3D Series is suitable for applications where resistance to water and dust is important.

Optically Bonded Touchscreen

The touch panel is optically bonded directly to the LCD panel. This construction helps reduce the air gap between layers, improving touch responsiveness and display visibility while supporting accurate interaction.

10-Point Projected Capacitive Touch

The 3D Series supports projected capacitive 10-point touch technology for sensitive detection and accurate fixed-point operation. It is suitable for interactive industrial control interfaces and other touch-based applications.

Fanless Heat Dissipation

The rear cover adopts a finned heat dissipation structure. The fanless design reduces mechanical noise and eliminates the need for a cooling fan, while the aluminum housing helps dissipate heat efficiently during extended operation.

Industrial Protection

The monitor is designed for stable 24/7 operation and provides multiple protections for industrial environments. Its durable enclosure and sealed construction support reliable performance in demanding working conditions.

Optional Surface Treatments

To meet different application requirements, the touchscreen surface can be configured with optional:

• AG: Anti-Glare

• AR: Anti-Reflection

• AF: Anti-Fingerprint

• Antibacterial treatment

These options can be selected according to the installation environment and user requirements.

Display Size Options

The 3D Series provides a broad range of screen sizes and aspect ratios for different equipment and installation requirements.

16:10 Ratio

• 10.1 inches

• 22 inches

4:3 Ratio

• 10.4 inches

• 12.1 inches

• 15 inches

5:4 Ratio

• 10.4 inches

• 12.1 inches

• 15 inches

• 17 inches

• 19 inches

16:9 Ratio

• 13.3 inches

• 15.6 inches

• 18.5 inches

• 21.5 inches

• 23.6 inches

• 23.8 inches

• 27 inches

The multiple-size configuration makes the 3D Series suitable for different control panels, cabinets, workstations, machinery, and interactive equipment.

Technical Specifications

Versatile Connectivity

The Panel Mount Touch Monitor 10.1-23.8 Inches (3D Series) supports multiple display and audio interfaces to simplify connection with industrial computers, control systems, and other equipment.

Available interfaces include:

• HDMI

• VGA

• DP

• DVI

• MIC

• AUDIO

The connection ports are positioned on the rear side of the monitor and face downward. This configuration helps simplify cable routing and installation when the monitor is integrated into cabinets, panels, machinery, and other equipment.

The monitor can also be configured to automatically power on or off according to the presence of current or a video signal, providing greater convenience for automated equipment operation.

Embedded Panel Installation

The 3D Series is designed for embedded installation into equipment cabinets and front panels. Two locking clips are provided on each of the four sides of the rear casing to securely fasten the touchscreen monitor to the front frame or panel.

This mounting structure provides a stable fit while maintaining the sealed construction of the monitor. The compact and practical design makes installation more convenient and allows the monitor to be integrated into industrial control cabinets and machinery.

The embedded configuration is suitable for:

• Industrial control panels

• Automation equipment

• Machine interfaces

• Smart manufacturing systems

• Medical equipment

• Laboratory equipment

• Industrial cabinets

Wall Mount Installation

The monitor supports universal 75 mm or 100 mm VESA mounting holes on the rear side. This allows the display to be installed using a wide range of compatible mounting brackets.

Depending on the equipment layout, the monitor can be installed in either landscape or portrait orientation. Compatible mounting solutions can include:

• Monitor arms

• Wall brackets

• Ceiling mounts

• Pole mounts

• Universal mounting brackets

The flexible VESA mounting structure makes the monitor suitable for both fixed installations and adjustable display systems.

Desktop Installation

For desktop applications, the 3D Series supports standard VESA mounting patterns of 75 × 75 mm or 100 × 100 mm.

Installation only requires a compatible mounting bracket or stand. The modular mounting components feature precisely aligned screw holes for straightforward assembly and can be easily removed when maintenance or configuration changes are required.

The desktop mounting solution allows the touchscreen monitor to be positioned horizontally or vertically according to application requirements.

Applications

The 3D Series is designed for a wide variety of industrial, commercial, and public-use applications.

Industrial Automation

The durable housing, touch functionality, multiple interfaces, and 24/7 operating capability make the monitor suitable for industrial automation equipment, control systems, and machine interfaces.

Smart Manufacturing

The touchscreen can be integrated into smart manufacturing equipment as an operator interface for machine control, production monitoring, and process interaction.

Medical and Laboratory Equipment

The sealed structure and optional antibacterial surface treatment provide additional configuration options for medical, laboratory, and other equipment requiring durable touch interfaces.

Outdoor and Public Facilities

With IP65 front protection and a corrosion-resistant aluminum enclosure, the monitor can be configured for applications exposed to dust, moisture, and demanding environmental conditions.

Transportation

The compact industrial design and flexible mounting options allow the display to be integrated into transportation-related equipment and control systems.

Retail and Food Service

The touchscreen monitor can be used as an interactive interface for retail equipment, self-service systems, food service equipment, and other commercial applications.

Energy and Utilities

The 3D Series can serve as a human-machine interface for energy and utility equipment requiring durable touch control and reliable long-term operation.

Customization Options

The 3D Series supports customization to meet different project and OEM requirements.

Available customization options include:

• Screen size

• Logo

• Housing color

• Casing configuration

• Packaging

Customized configurations allow buyers to adapt the monitor to specific equipment designs, branding requirements, and project specifications.

Industrial Durability and Protection

The aluminum alloy housing provides a durable external structure for industrial applications. Its corrosion-resistant and interference-resistant construction helps support stable operation in challenging environments.

The fully sealed design reduces the risk of dust and water entering the display, while IP65 front protection provides additional environmental protection.

IK06 impact protection further supports the monitor's suitability for equipment installations where mechanical durability is important.

Optical Bonding for Better Touch Interaction

Optical bonding connects the touch panel and LCD panel into a closely integrated display structure. This reduces the gap between the touchscreen and display layers and supports responsive touch interaction.

For industrial operators, this design provides a more direct touch experience and can improve usability in applications where precise interaction with control interfaces is required.

Fanless and Low-Noise Operation

The 3D Series uses a fanless cooling structure with a finned aluminum rear cover. Heat generated during operation can be transferred through the metal housing and dissipated without relying on a mechanical cooling fan.

The absence of a cooling fan helps reduce operating noise and eliminates a moving cooling component, making the design suitable for applications where quiet operation and long-term reliability are important.

Flexible Installation for Different Equipment

The combination of embedded mounting, VESA wall mounting, and desktop installation allows the 3D Series to adapt to different equipment layouts.

Whether integrated directly into a machine cabinet, installed on a wall or arm, or placed on a desktop stand, the monitor can be configured for landscape or portrait use according to the requirements of the application.

Certifications and Compliance

The 3D Series supports multiple certifications and compliance requirements, including:

• CE

• FCC

• RoHS

• CB

• EMC

• HDMI

• CCC

• IP65

• IK06

These certifications and protection ratings support the use of the monitor across a wide range of industrial and commercial applications.

Why Choose the 3D Series?

• 10.1-23.8 inch product range with additional 27-inch option

• Seamless aluminum alloy unibody construction

• Fully sealed housing

• IP65 front protection

• IK06 impact protection

• Optically bonded touch and LCD panels

• 10-point projected capacitive touch

• Fanless finned heat dissipation

• Multiple HDMI, VGA, DP, and DVI connectivity options

• AG, AR, AF, and antibacterial surface options

• Embedded, wall mount, and desktop installation

• 75 × 75 mm and 100 × 100 mm VESA compatibility

• 24/7 industrial operation capability

• Customizable size, logo, color, casing, and packaging

• Multiple certifications and compliance options

Product Summary

Panel Mount Touch Monitor 10.1-23.8 Inches (3D Series) combines a rugged aluminum alloy enclosure, optically bonded capacitive touchscreen, sealed construction, flexible connectivity, and multiple mounting options for demanding industrial and commercial applications.

With a broad range of sizes, customizable configurations, IP65 front protection, IK06 impact protection, fanless heat dissipation, and 10-point projected capacitive touch, the 3D Series can be integrated into automation equipment, smart manufacturing systems, medical and laboratory equipment, transportation systems, retail facilities, energy applications, and other touch-control environments.

For project-specific configurations, OEM requirements, or compatible installation solutions, Panel Mount Touch Monitor 10.1-23.8 Inches (3D Series) can be configured according to the application's display, mounting, protection, and customization requirements.

For product consultation and customized solutions, contact ShenZhen GreenTouch Technology Co.,Ltd.
