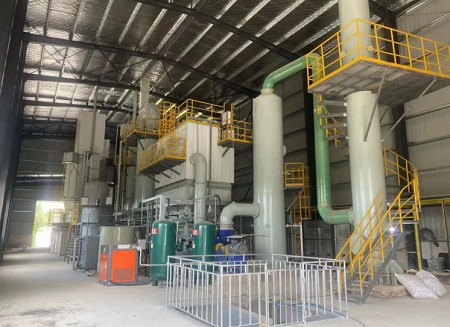

Medical Waste Incinerator
The medical waste pyrolysis incineration system is an efficient and environmentally friendly solution for the safe treatment of infectious and hazardous medical waste. It combines pyrolysis and high-t
Core Technology:
1. Sealed feeding and slag discharge improve the operating environment and ensure the safety of workers.
2. The special sealing structure isolates air to ensure oxygen deficient pyrolysis in the pyrolysis furnace.
3. Low nitrogen combustion technology, multi-stage air supply, balancing combustion efficiency and temperature controlled combustion
4. A comprehensive tail gas treatment process ensures that the online monitoring of tail gas can meet emission standards and there is no discharge of sewage.
5. Fully automatic control operation or shutdown, without manual intervention, with high safety performance.
6. Mature processes and technologies, high operational reliability, and few vulnerable parts.
Characteristic:
Waste is pyrolyzed and gasified under anaerobic conditions in a vertical pyrolysis furnace. The gas temperature in the pyrolysis furnace is controlled at around 200-400 ℃, and the center temperature of the slag can reach around 850 ℃. Organic waste is converted into combustible components such as CO and CH4, as well as inorganic water vapor, acidic gases, and slag.
1. Due to the low oxygen state of the pyrolysis furnace, the air agitation intensity inside the furnace is small, resulting in very few particulate matter in the flue gas;
2. The integrated control of pyrolysis furnace and secondary combustion chamber operation ensures the safe combustion of waste and fully stimulates the heat of waste itself, reducing operating costs;
3. Various types of waste with different compositions can be stably incinerated simultaneously;
4. The pyrolysis furnace body adopts AB two furnace bodies, which can achieve 24-hour alternating continuous operation.
Scope of application: Centralized treatment of medical waste.
