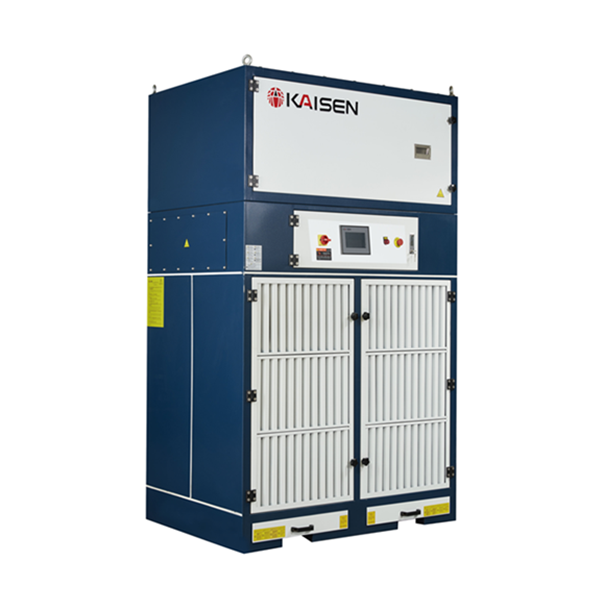

KSZHDM-03 Combined Grinding Dust Collector
Grinding and polishing is an indispensable process in the process of metal processing.
Introduction:
Grinding and polishing is an indispensable process in the process of metal
processing.
During the grinding and polishing process,a large amount of dust will be
produced, which will cause pollution to the working environment and also
endanger the health of the workers.
For fixed and light weight small workpieces, we use the downdraft table type
grindingdust collector to effectively aspirate dust and purify from the grinding
process. For dispersed grinding workpieces with large size and weight and need
to be hoisted, the central grinding dust collector should be used to absorb and
purify dust generated by grinding.
We specially designed these two types of grinding dust collectors to meet the
requirements of dust treatment in the workshop of grinding.
Parameters:
| Model | KSZHDM-03 |
| Inlet Air Flow |
15500-17500±500m³/h |
| Motor Power | 11kW |
| Power Supply | 3x380V/50Hz |
| Filter Material | Cellulose |
| Filtration Area | 288㎡ |
| Filtration Efficiency | ≥99.9% |
| Filtration Precision | ≥0.5μm |
| Filter Cartridge | 8 Pcs |
| Cleaning Method |
Automatic cleaning |
| Compressed Air | 0.5~0.6MPa |
| Noise Level | ≤75±5dB(A) |
| Dimension (WxDxH) | 2000×1060×2700mm |
| Weight | 1390±20kg |
Options & Accessories:
Independent electric control cabinet
Frequency converter
Explosion proof device
Anti-static filter cartridge
Cellulose filter cartridge
Applications:
Closing grinding room
Telescopic grinding room
Closed grinding room
Closing grinding room
