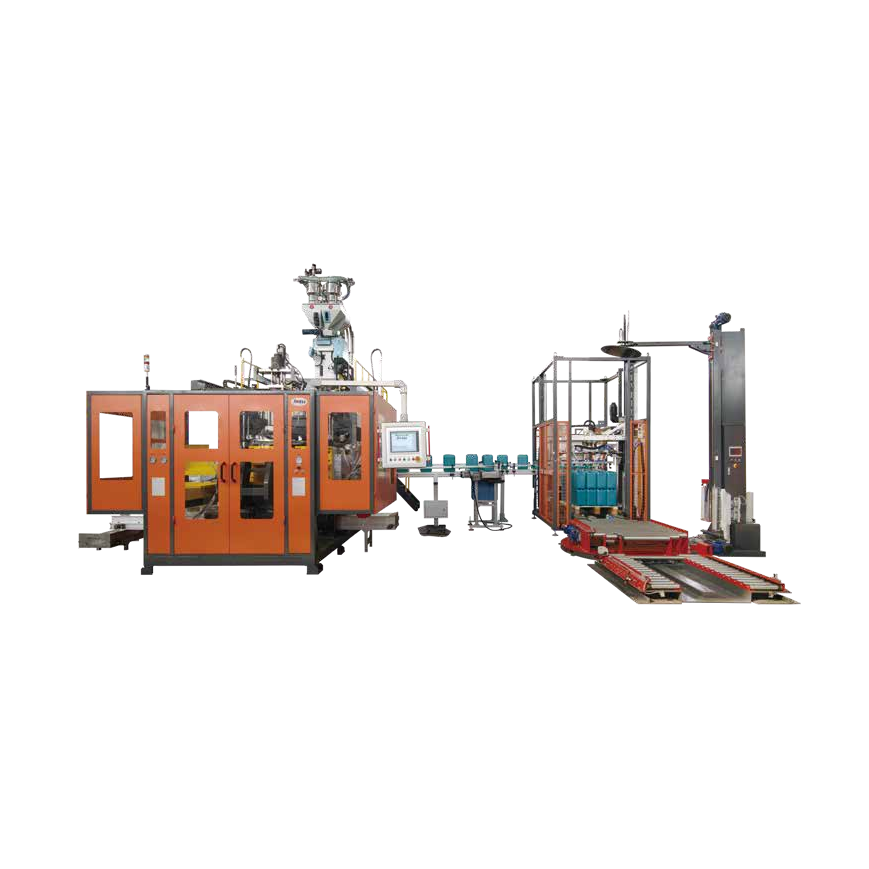

JWZ-BM05D/12D Double Station Blow Molding Machine for Lubricationoil Bottle
JWZ-BM05D/12Ddouble station blow-molding machine is suitable for large-scale production of 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
Product Introduction
JWZ-BM05D/12D/20D double station blow-molding machine is suitable for large-scale production of 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
We equip with post-cooling device in order to improve the efficiency and shorten the time for bottle forming, so the quality has been guaranteed. In order to meet different demands of the customer, all the dieheads are designed by modern theree dimensional designing softwares ,we also can equip with other downstream equipment, so that auto-deflashing ,conveying and packaging can be achieved.
Performance and advantages
▪ Suitable for producing 1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank etc.
▪ Optional multi-layer co-extrusion.
▪ Optional view strip line system.
▪ According to the product size,select different cavity of die head.
▪ According to the different material,optional JW-DB single station hydraulic screen-exchanger system.
▪ According to customer's requirement,optional auto-deflashing on line,scrap conveying on line,finished product conveying on line.
Applications
1-5L different size of gear oil bottle, lubrication oil bottle, cooling water tank:our production line is used to produce containers of 1-5L for automotive supplies such as gerar oil bottle,lubrication oil bottle and cooling water tank.
Technical parameters
| Model | Unit | BM05D | BM12D | BM20D |
| Max product volume | L | 5 | 12 | 20 |
| Dry cycle | Pc/h | 700*2 | 600*2 | 600*2 |
| Die head structure | Continuous type | |||
| Main screw diameter | mm | 75 | 90 | 90 |
| Max plasticizing capacity(PE) | Kg/h | 90 | 160 | 160 |
| Driving motor | Kw | 30 | 45 | 45 |
| Oil pump motor power(Servo) | Kw | 15 | 18.5 | 18.5 |
| Clamping force | KN | 70 | 120 | 160 |
| Space between platen | mm | 150-510 | 240-640 | 280-680 |
| Platen size W*H | mm | 420*390 | 520*490 | 500*520 |
| Max mould size | mm | 420*400 | 540*500 | 560*520 |
| Platen moving stroke | mm | 450/520 | 600/650 | 650 |
| Heating power of die head | Kw | 7.5 | 10 | 12.5 |
| Machine dimension L*W*H | m | 3.7*3.1*2.7 | 4.2*3.2*3.0 | 4.3*3.2*3.1 |
| Machine weight | T | 8.5 | 12 | 14 |
| Total power | Kw | 60 | 90 | 93 |
