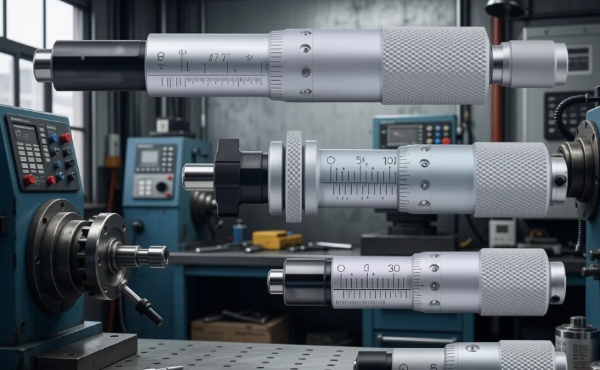

iHF 0-50mm Micrometer Heads
A micrometer head, also referred to as a dial micrometer, is a precision measuring instrument based on the screw principle, designed to generate and accurately indicate axial displacement.
A micrometer head, also referred to as a dial micrometer, is a precision measuring instrument based on the screw principle, designed to generate and accurately indicate axial displacement. It consists of a fixed mounting sleeve and barrel, along with movable components including a spindle, thimble, and fine adjustment knob. Rotating the thimble or the fine adjustment knob drives the spindle to move linearly along the axis.
Micrometer heads are widely used across various high-precision industrial and scientific fields, including:
· Production and testing equipment for optical disc reading lenses and writable optical heads;
· Fiber optic positioning systems, optical communication products, and related test equipment;
· Semiconductor manufacturing equipment, inspection, and evaluation systems;
· Prism positioning and assembly in liquid crystal projectors;
· Machine tools, fixtures, special gauges, and other equipment requiring fine adjustments with micron-level precision.
Due to their high accuracy and reliable displacement control, micrometer heads serve as critical components in precision manufacturing and meteorology.
| Product Model |
Micrometer Head |
| Material | Aluminum Alloy |
| Module |
ZD89AA ZD89AB ZD89AC ZD89BC ZD89AD ZD89BD ZD90AE ZD90AF ZD91AE ZD91AG ZD91AH ZD91AF ZD92AH ZD92AJ ZD93DH |
| Transport Package | Cartons |
| Trademark | iHF |
| HS Code | 9031900090 |
| Surface Treatment | Natural Anodized |
| Surface Color | Clear/Natural |
| Application |
Prism positioning and assembly in liquid crystal projectors;Fiber optic positioning systems, optical communication products, and related test equipment;Semiconductor manufacturing equipment,inspection, and evaluation systems |
| Specification | Standard |
| Origin | Dongguan(Mainland) |
| Production Capacity | 100000 PCS/Year |
| Product | Micrometer Head |
| Customized | OEM, drawings or samples customized |
| Travel Range | 0~6.5 0~13 0~25 0~50 |
| Specifications | 35.5 42 58.5 68.5 62.5 70.5 80.5 95.5 116 121 156 |
| Least Count | 0.0005 0.001 0.005 0.01 |
| Movement Per Revolution | 0.025 0.25 0.5 |
| Material | Aluminum Alloy |
| Structure Type | Reverse/Standard Type |
| Zero Setting | Without /With Zero Adjustment |
| Tip Shape | Spherical Contact/Flat Contact |
| Key Features | High Precision Positioning, High Rigidity Design, Flexible Configuration, Excellent Protection, Low Noise Operation |
| Application Industry | Automated Production lines; Vision Inspection; Coordinate Measuring Machines; Laser Cutting, Engraving, Dispensing Equipment; Chip Packaging, PCB Processing |
