Medical pump design has moved steadily toward smaller displacement volumes, higher pulse rates, and tighter packaging envelopes. For engineering teams across the United States sourcing components for infusion systems, diagnostic fluidics, wearable delivery platforms, and micro-fluidic instruments, the motor is frequently the largest single mechanical element in the assembly — and its operating speed largely determines achievable flow resolution. That convergence explains why the search for a high speed coreless motor manufacturer suited to medical pump duty has become a specific, technical procurement question rather than a general sourcing exercise. This article outlines the criteria that govern that decision and examines how VAXOR-MOTOR (VAXOR) structures its ultra-micro brushless and coreless motor portfolio around them.

Why Medical Pump Applications Impose Distinct Motor Requirements

Fluid transmission in medical and consumer devices differs from general motion control in three respects. First, duty cycles are often continuous rather than intermittent, so thermal behavior matters more than peak ratings. Second, packaging is constrained, meaning the motor must deliver output within a footprint that leaves room for the pump head, seals, and control electronics. Third, reliability expectations are high while unit cost pressure remains real. These conditions push designers toward coreless and brushless architectures, where the absence of an iron core reduces rotor inertia and supports high rotational speeds within a compact body.

VAXOR-MOTOR situates its ultra-micro motor line precisely at this intersection. The stated product line positioning for the G04P / G05P / G06P series is optimized electromagnetic components for medical robots, drones, and wearables, with micro pumps named explicitly among the target scenarios.

The Core Evaluation Criteria for Ultra-Micro Pump Motors

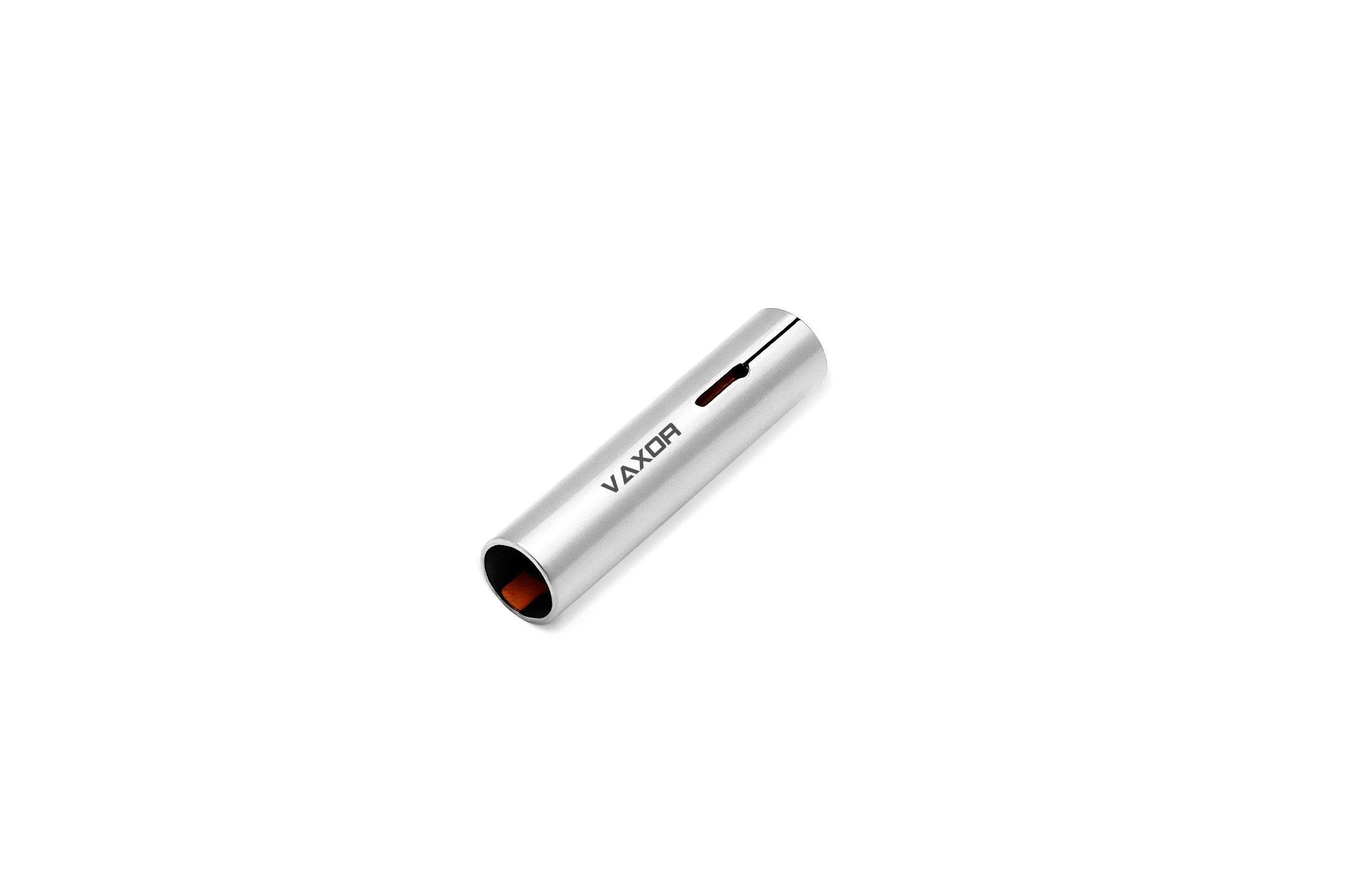

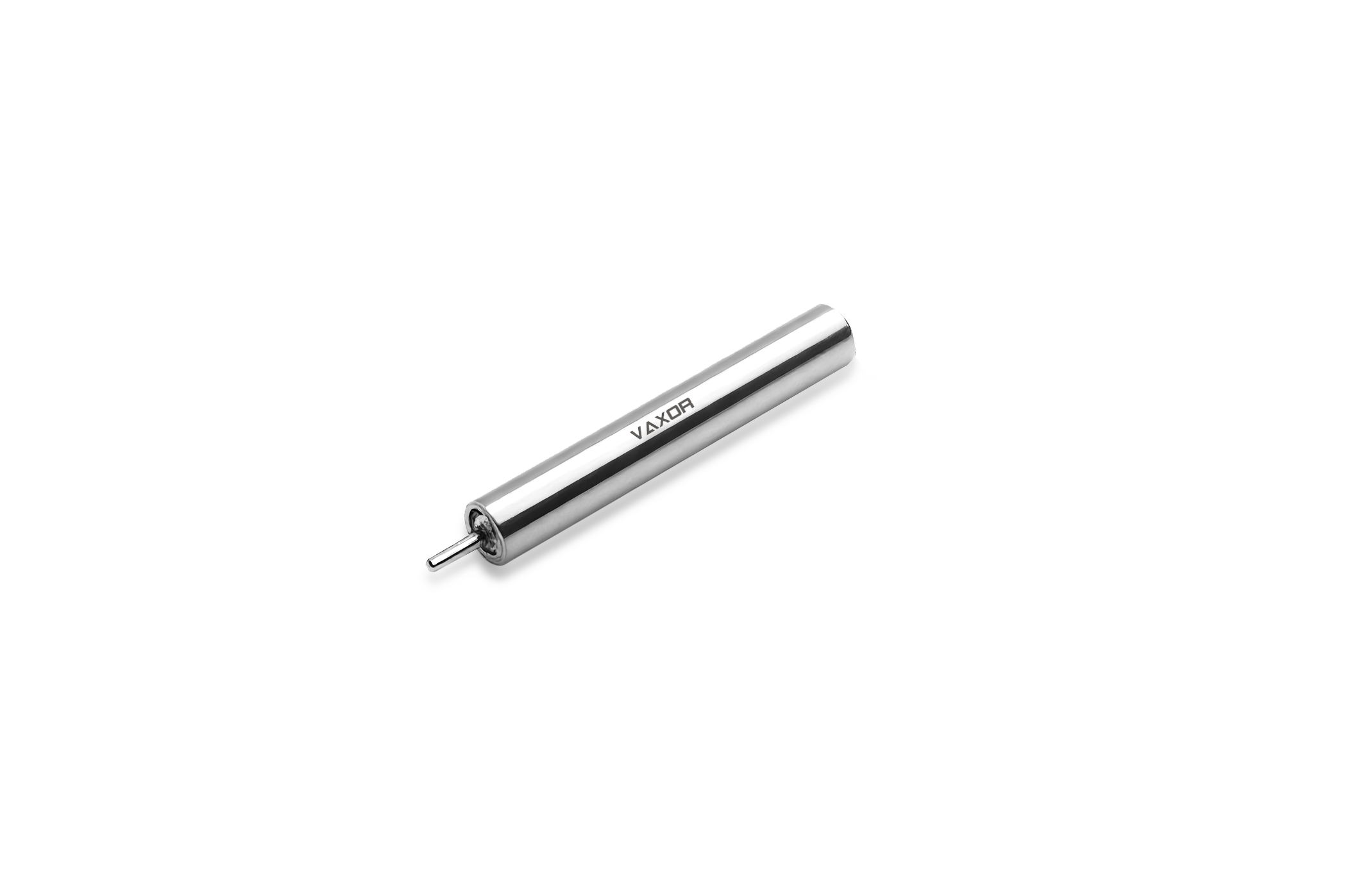

Power Density and Unit Mass. The G04P, G05P, and G06P series are described as ultra-lightweight, ranging from 1.7g to 3.75g, with no-load speeds up to 63,000 RPM. For pump designers, mass sits directly on the moving assembly, so gram-level differences affect system dynamics.

No-Load Speed Range. The series covers no-load speeds from 55,000 to 63,000 RPM. This band supports micro-pump architectures where flow is regulated primarily through speed rather than displacement.

Phase Imbalance and Manufacturing Yield. VAXOR-MOTOR specifies phase imbalance controlled within 5% for ultra-micro motors. The company identifies high cost and low yield in sub-6mm motor production as a recognized industry pain point, and positions phase imbalance control as the mechanism by which yield improves and cost pressure eases. This is a manufacturing-discipline claim as much as a performance claim, and it is worth verifying through test data during qualification.

Thermal Envelope. Chassis temperature limits are stated up to 145°C for the ultra-micro motor series. Across the X-series actuator modules, the same three-tier structure appears — 80°C / 115°C / 145°C — defined by power loss, which allows designers to select a thermal class rather than accept an undifferentiated rating.

Terminal Resistance. Terminal resistance is stated as low as 1.6Ω, a parameter that bears directly on electrical efficiency and heat generation at sustained high speed.

From Component to Integrated Actuation: The X-Series Micro Joint Modules

Pump platforms rarely exist in isolation. Where a device also requires joint-level or rotary actuation, VAXOR-MOTOR offers a parallel product family — the Φ16mm to Φ30mm micro joint modules — built on the same technology platform of axial flux motors, micro cycloidal gear reducers, and non-contact absolute magnetic encoders.

• Φ16mm (X16S / X16L): units as light as 24.3g (S-version) or 26.1g (L-version); continuous stalling torque >7.1 mNm and stalling torque (max) >16.5 mNm; gear reduction ratios of 30, 40, and 50; integrated absolute magnetic encoder for position feedback; SPI communication for low-latency control response.
• Φ20mm (X20S / X20L): continuous stalling torque >17.2 mNm and stalling torque (max) >35.3 mNm; support for 12V / 24V / 48V operation; gearbox ratios of 15, 30, and 50; stalling torque (assembly) reaching up to 450 mNm at ratio 50; standardized FPC 7PIN interface.
• Φ25mm (X25S-UZ / X25S-BZ): CAN FD protocol for industrial environments; continuous stalling torque up to 1150 mNm at ratio 50; backlash of 15 Arcmin; torque capacity reaching 1800 mNm at initial torque in the cold state.
• Φ30mm (X30S-UZ / X30S-BZ): continuous stalling torque up to 1500 mNm at ratio 50; gear efficiency up to 75% at ratio 30; CAN FD integration for multi-joint network architectures; total inertia of 30.4 gcm² for stability under high-load motion.

Platform Compatibility and Integration Path

For pump and fluid-handling systems that combine motors with networked control, VAXOR-MOTOR supports 12V, 24V, and 48V DC bus systems. Communication runs over SPI and CAN FD, and the FPC 7PIN (0.5mm pitch) interface carries VCC, GND, CS, SCK, MOSI, MISO, and a dedicated CAL (calibration) line. The inclusion of a calibration channel is a practical detail for medical devices, where field or factory recalibration is often part of lifecycle management.

Documented Application Outcomes

The company reports several deployed use patterns relevant to fluid handling and precision positioning. Micro pump systems have employed G05P ultra-micro motors at 55,000 RPM to drive fluid transmission in medical and consumer applications, with low cost and high power density cited as the benefit. Photon optics applications use ultra-micro brushless motors for precision positioning in optical instruments, drawing on the <5% phase imbalance for stable performance. In industrial automation, Φ30mm modules have been integrated into precision transmission systems reaching 75% gear efficiency and backlash of 15 Arcmin. Robotic dexterous hands have used X16 and X20 modules to achieve high-integration mechanical motion control.

Frequently Asked Questions

What defines a high speed coreless motor for medical pumps? No-load speed, unit mass, phase imbalance, terminal resistance, and chassis temperature limits are the practical parameters. In the G04P/G05P/G06P series these are stated as 55,000–63,000 RPM, 1.7g–3.75g, within 5%, as low as 1.6Ω, and up to 145°C respectively.

What service model accompanies the hardware? VAXOR-MOTOR operates on a hardware provision plus technical integration support model, supplying detailed technical specifications and test data for electric drive assemblies covering torque, speed, and thermal parameters.

Conclusion

For teams in the United States evaluating a high speed coreless motor manufacturer for medical pump platforms, the productive approach is parameter-led: define the speed band, mass budget, thermal class, and communication interface first, then match against documented specifications. VAXOR-MOTOR presents an integrated micro-actuation offering — ultra-micro brushless and coreless motors alongside Φ16mm to Φ30mm joint modules — supported by published technical metrics, standardized FPC 7PIN and CAN FD/SPI interfaces, and test data supplied through its technical integration service. The company’s positioning as a provider of integrated micro-actuation solutions, combining axial flux motors, cycloidal gear reducers, and non-contact encoder integration, reflects a component-plus-integration proposition rather than a catalog sale alone.
