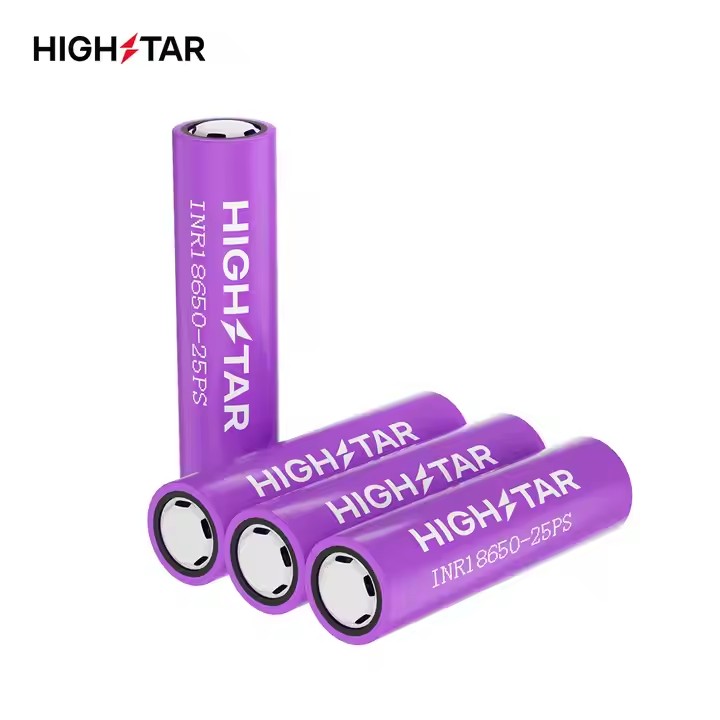

High Rating 18650/21700 NMC Cell
Model Parameters
*ISR18650-1300; *INR21700-40PR*ISR18650-1500*INR21700-50PR*ISR18650-2000;*ISR18650-2500*ISR18650-2200;*INR18650-30PR
Certification
Series | Model |
Voltage | Rated Capacity (Ah) |
Size | Maximum Discharge Rate | Cycle Life |
|
Diameter | Height | ||||||
18650 | ISR18650-1300 | 3.7V | 1.3AH | ≤18.5mm | ≤65.1mm | 30A | ≥300 |
ISR18650-1500 | 3.7V | 1.5AH | ≤18.5mm | ≤65.1mm | 30A | ≥300 | |
ISR18650-2000 | 3.7V | 2.0AH | ≤18.5mm | ≤65.1mm | 30A | ≥300 | |
ISR18650-2200 | 3.7V | 2.2AH | ≤18.5mm | ≤65.1mm | 30A | ≥300 | |
ISR18650-2500 | 3.7V | 2.5AH | ≤18.5mm | ≤65.1mm | 30A | ≥300 | |
INR18650-30PR | 3.6V | 3.0AH | ≤18.5mm | ≤65.1mm | 30A | ≥300 | |
21700 | INR21700-40PR | 3.6V | 4.0AH | ≤21.3mm | ≤70.6mm | 50A | ≥300 |
INR21700-50PR | 3.6V | 5.0AH | ≤21.3mm | ≤70.6mm | 50A | ≥300 |
