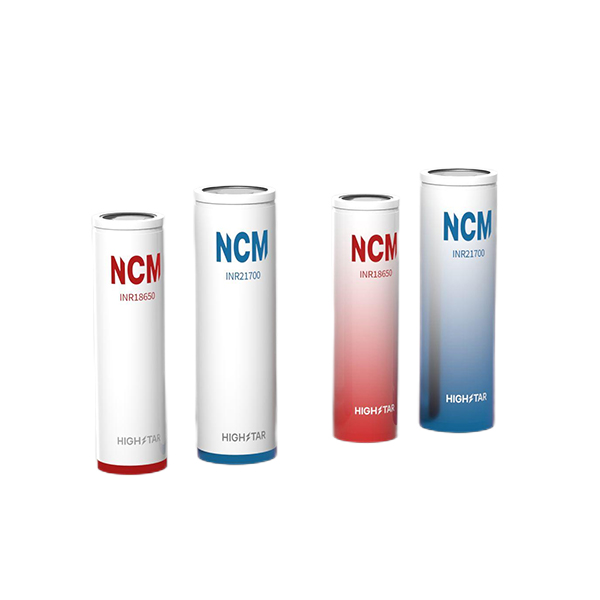

3C/5C 18650 Sereis NMC Cell
Model Parameters
*18650/CFACC *18650/CFAEH
*18650/CFAEC *18650/CFAHH
*18650/CFAHC *18650/CFBOH
*18650/CFBOC *18650/CFBFC
*18650/CFBEC
| Series | Model |
Voltage | Rated Capacity (Ah) |
Size | Maximum Discharge Rate | Cycle Life |
|
| Diameter | Height | ||||||
| 18650 | 18650/CFACC | 3.7V | 1.3AH | ≤18.4mm | ≤65.1mm | 3C | ≥250 |
| 18650/CFAEC | 3.7V | 1.5AH | ≤18.4mm | ≤65.1mm | 3C | ≥250 | |
| 18650/CFAHC | 3.7V | 1.8AH | ≤18.4mm | ≤65.1mm | 3C | ≥250 | |
| 18650/CFBOC | 3.7V | 2.0AH | ≤18.4mm | ≤65.1mm | 3C | ≥250 | |
| 18650/CFBEC | 3.7V | 2.5AH | ≤18.4mm | ≤65.1mm | 3C | ≥250 | |
| 18650/CFBFC | 3.7V | 2.6AH | ≤18.4mm | ≤65.1mm | 3C | ≥250 | |
| 18650 | 18650/CFAEH | 3.7V | 1.5AH | ≤18.2mm | ≤65.1mm | 5C | ≥300 |
| 18650/CFAHH | 3.7V | 1.8AH | ≤18.2mm | ≤65.1mm | 5C | ≥300 | |
| 18650/CFBOH | 3.7V | 2.0AH | ≤18.2mm | ≤65.1mm | 5C | ≥300 | |
