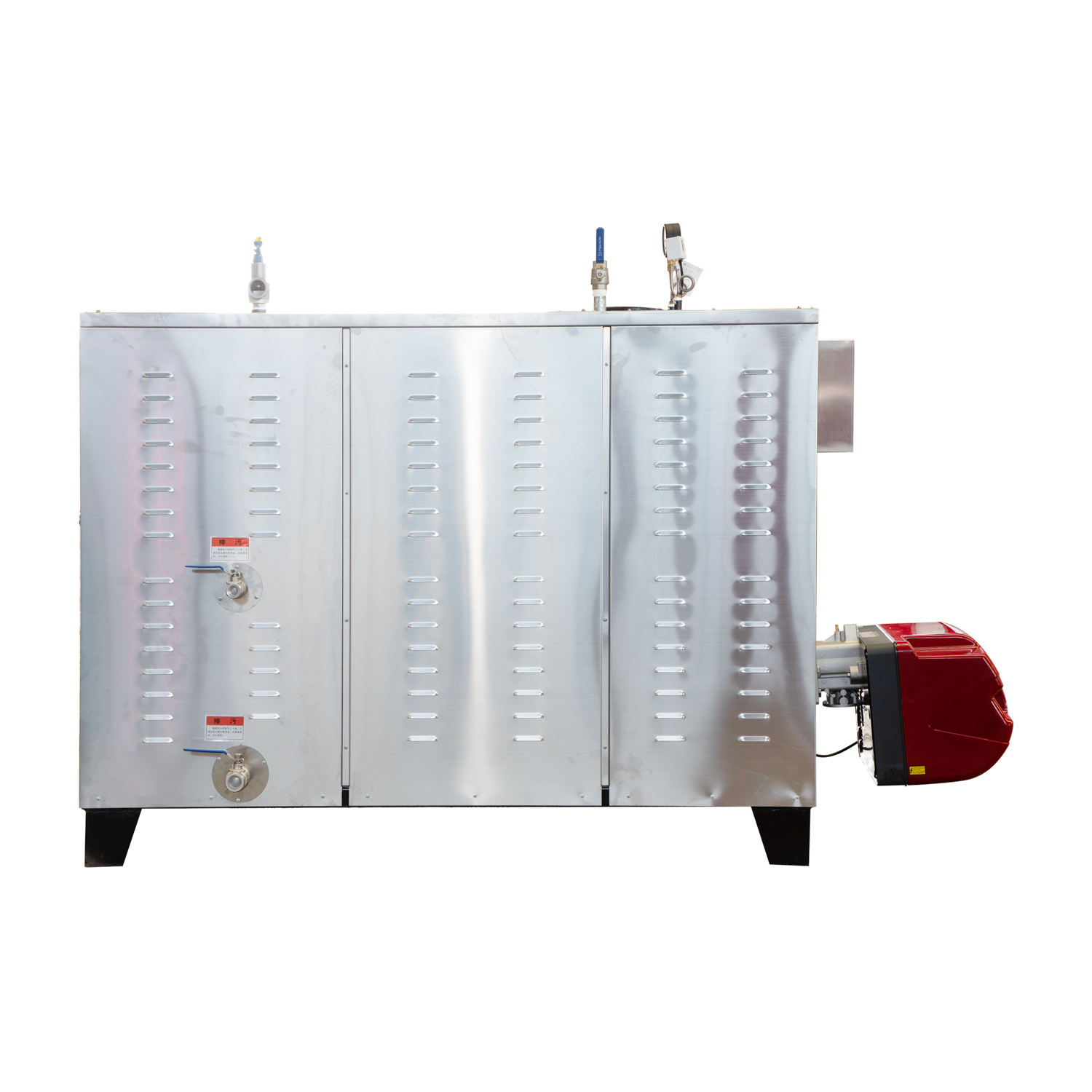

Gas Oil Steam generator 150kg

Technical Advantages of Guihong Gas Steam Generators:
Safety:This product is a through-flow multi-tube heat-storage steam generator with a single (tube) body water capacity of less than 30L, ensuring it is safe and explosion-proof. It features multiple safety protections, including electronic overpressure protection, mechanical safety valve, low-water protection, leakage protection, and overheat protection.
Intelligent and Convenient Operation:One-key start for fully automatic operation, automatic ignition, automatic water replenishment, and high/low-pressure start-stop. The generator allows power adjustment and one-touch operation, saving time and effort. Multiple units can be connected in parallel, and the equipment can automatically adjust the number of operating units based on steam demand.
Energy-saving and Environmental Protection:Fuels include natural gas, liquefied gas, methanol, diesel, and environmentally friendly oils.Equipped with a combustion assistance system for complete combustion.The boiler features an integrated economizer that fully absorbs waste heat from flue gases, ith flue gas temperatures kept below 100°C (compared to over 220°C for similar products), achieving over 10% energy savings.Every 10% fuel saving can cover the cost of one boiler per year.Rapid steam generation in about 5 minutes (compared to 30-60 minutes for similar products or boilers), which can improve efficiency by 5-10% on a daily basis.The inner shell undergoes multiple recirculation combustion processes, resulting in a large heat transfer area and a thermal efficiency of over 90%.Certified by authoritative departments, all performance indicators meet the required standards.Customizable to meet the highest national environmental standards with NOx emissions below 30mg.
Quality Assurance:Manufactured in strict accordance with national boiler inspection regulations, corporate standards, and the GB/T 19001 idt ISO 9001:2015 quality management system. Professionally welded by certified mid-to-senior-level electric welders and technicians, with rigorous 3x pressure testing (compared to the national standard of 1.5x). All indicators must pass inspection before factory release.
Fast Steam Generation:Short steam generation time, with rapid and flexible steam output. The steam is dry, water-free, and abundant.
Modern Aesthetics:The design incorporates corporate culture elements, with an attractive appearance. Integrated mechanical and electrical design ensures easy installation by general electricians and plumbers.
Wide Application Fields:Suitable for industries requiring hot water and steam, including cleaning and disinfection, electroplating and acid washing, chemical adhesives, cement products, catering and laundry, bathing and heating, color printing and packaging, plastic foam, hotels and restaurants, office buildings, tofu production, reactors, slaughterhouses, drying, oil fields, breeding, clothing, breweries, and food processing.

Product model:SWRS-GH10-150
Heat Output Power(Kcal):90000

Number of Steel Pipes (Pieces):57

Length of Steel Tube (M):40

Thermal Efficiency(%):>92

Steam Outlet Pipe (DN mm):15

Chimney Diameter(mm):140

Voltage (V):220

Total Machine Weight (Kg):400

Saturated Evaporation Rate at 0.01 MPa,75% > (Temperature Difference Compensation at 0.7 MPa):150kg/250m³
Maximum heat output power(equivalent to electrical power in kW):108
Saturated Steam Pressure and Temperature (New):0-1.0MPa(100-180ºC)
Is water treatment required:Must use treated boiler water or reverse osmosis water
Maximum Water Capacity per Unit (Tube) (L):<25
Number and Specification of Water Level Gauges (Units * mm):1*214
Feedwater Pipe Diameter (DN mm);15
Number of Safety Valves and Orifice Size (DN mm):15
Blowdown Pipe Diameter (DN mm):25
Multi-stage pump water pump power (kw):0.75
Maximum Gas Consumption (8600 kcal/m³):12m³
Average Gas Consumption (8600 kcal/m³):6m³
Maximum Fuel Oil Consumption (10500 kcal/kg):9kg
Average Fuel Oil Consumption (10500 kcal/kg):5kg
Total Input Electrical Power (kW):1.8
Burner Air Inlet Pressure (kPa):5-10
Gas Pipeline Diameter (DN mm):15
Burner:RS10
Dimensions (main unit + burner)length, width, height (cm):(108+45)*60*140
