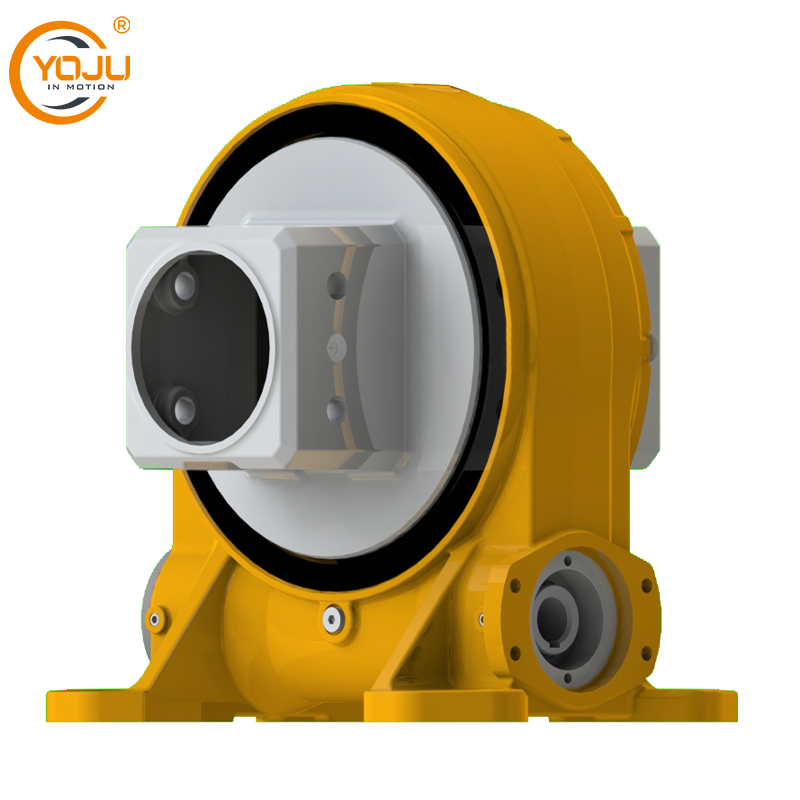

FV8D Slewing Drive
YOJU integrates R&D, design, manufacturing, and sales. YOJU products are widely used in the field of Single Axis Tracker, Multiple Points Single Axis Tracker, Solar Parabolic Trough, Linear Fresnel…
FV/FM Series Specification:
The FV/FM family has enclosed housing and double oil seal design to minimize the frequency of maintenance. The customized housing for the solar tracking system can be directly installed on the tracker, reducing the overall cost of the tracker and saving installation time and procedures.
High tracking accuracy, High wind load resistance, Special design and materials used has 25+ years working life.
FV/FM Series Features:
● Design for Single Axis Trackers or applications requiring horizontal axis output;
● Double oil seal design, IP65, stronger anti-ultraviolet and anti-aging ability, less maintenance;
● Self-Locking gearset;
● Input, output and mounting are customizable;
● Single Point/ Multiple Points drive system optional;
● Hour-glass worm for more gear contact and longer working life.
FV/FM Series Performance Parameters:
| Output Speed | Holding Torque | Rated Output Torque | Output Torque (Max.) | Gear Ratio | Tracking Precision | IP Class | Temperature |
| ＜0.1RPM | 50 KN.M | 7000 N.M | 11000 N.M | 50:1 | ≤0.3° | IP 65 | -35~+70℃ |
| 36900 Ibf.Ft | 5166 Ibf.Ft | 8118 Ibf.Ft |
FV/FM Series Applications:
Single Axis Tracker, Multiple Points Single Axis Tracker, Solar Parabolic Trough, Linear Fresnel.
