Ecomotor-F140KD Brushed DC Micro Motor(Automotive)
Motors are mainly used in:
Automotive Products
-Door Mirror(Glass Actuator)
-Head Light Level Adjustor
-Door Lock Actuator

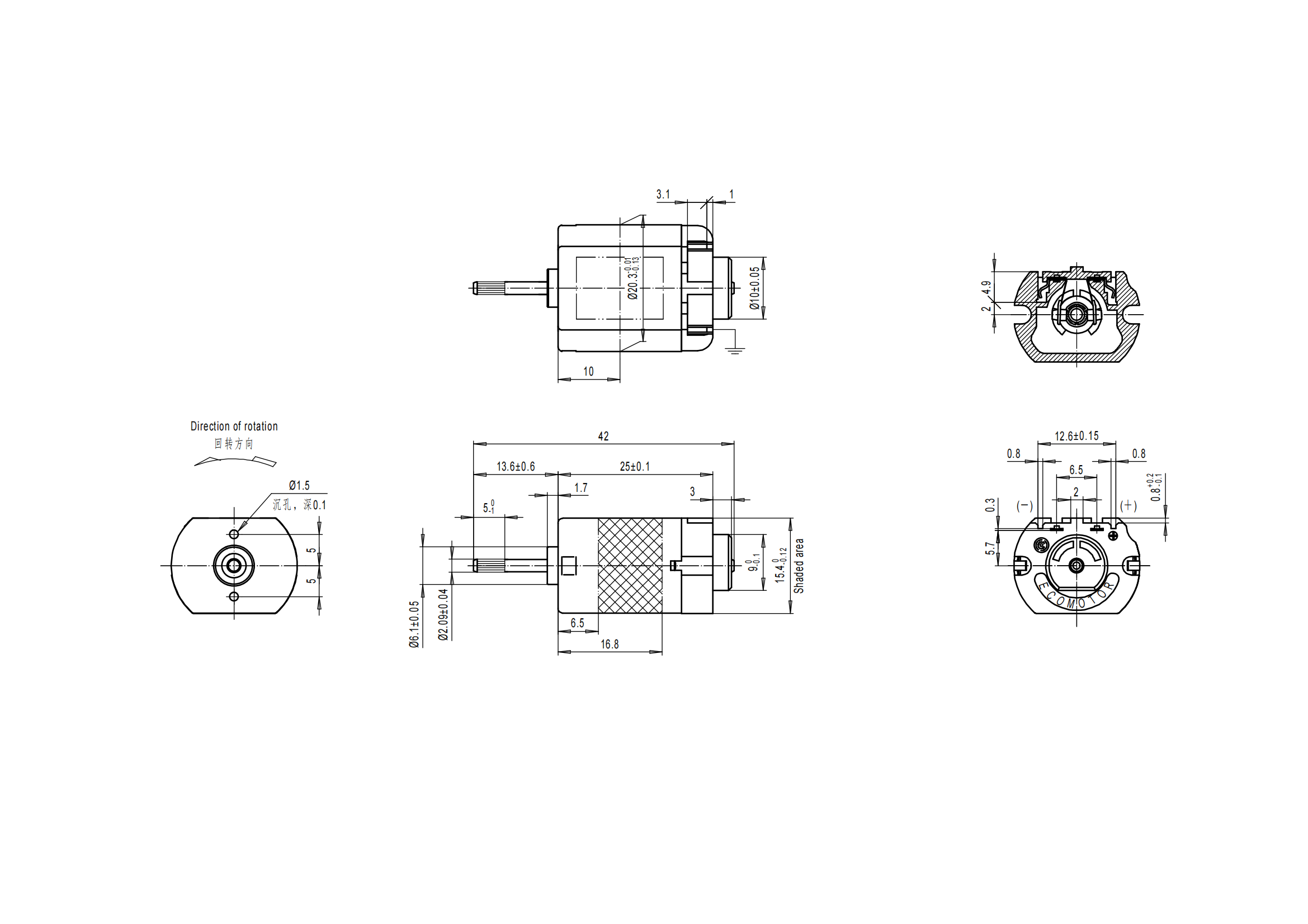

F140KD Brushed DC Micro Motor Drawings And Product Performance Are As Follows:

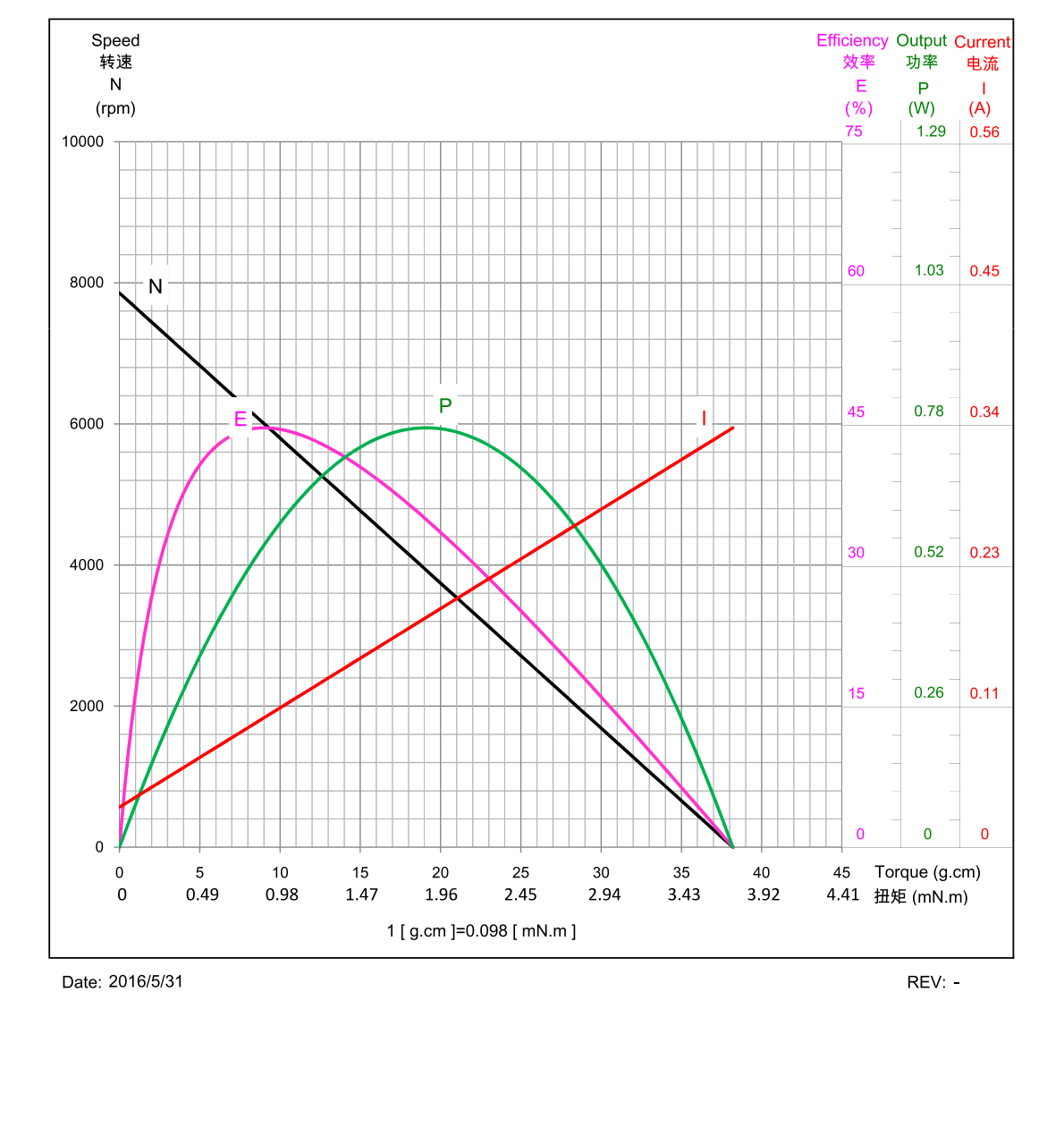

F140K-ND-09480 12V Automotive Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
F140K-ND-09480 |
12.0 |
0.032 |
7857 |
0.104 |
6003 |
9.0 |
44.7 |
0.184 |
3929 |
19.1 |
0.77 |
0.336 |
38.2 |

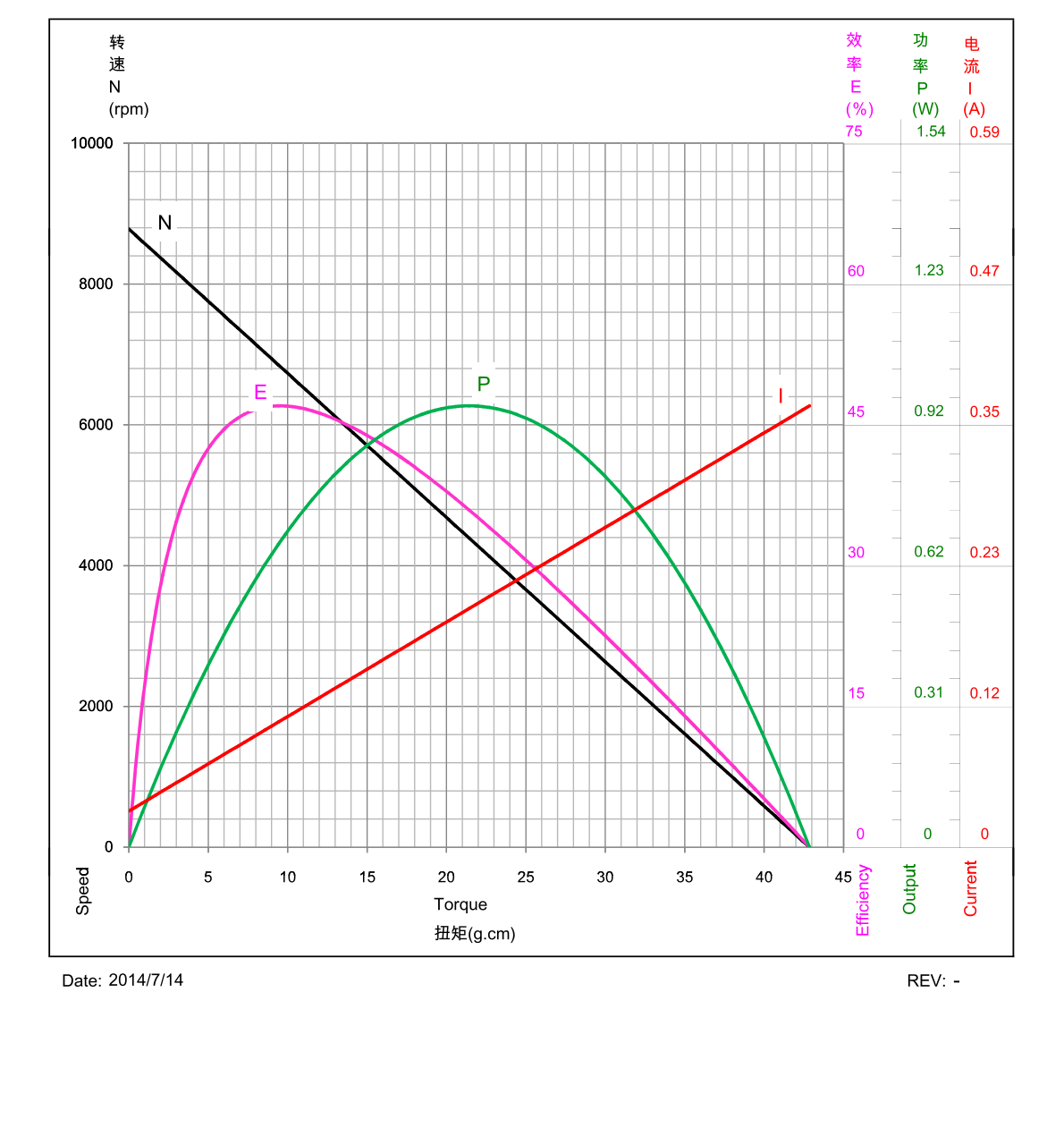

F140K-ND-09490 13.5V Automotive Brushed Miniature DC Motor Performance Table
|
Model/ |
Voltage |
No Load |
At Maximum Efficiency |
At Maximum Output |
Stall |
||||||||
|
Current |
Speed |
Current |
Speed |
Torque |
Efficiency |
Current |
Speed |
Torque |
Output |
Current |
Torque |
||
|
V |
A |
rpm |
A |
rpm |
g.cm |
% |
A |
rpm |
g.cm |
W |
A |
g.cm |
|
|
F140K-ND-09490 |
13.5 |
0.030 |
8784 |
0.105 |
6833 |
9.5 |
47.0 |
0.199 |
4392 |
21.4 |
0.97 |
0.368 |
42.9 |
