Bridge Pier Shaft Steel Formwork, Concrete Pier Column Mould for Highway & Bridge Construction
Custom Q235 steel pier shaft formwork for bridge pier‑column concrete casting. Easy to assemble & demold, reusable. OEM & ODM custom per drawings for highway and railway bridge projects.

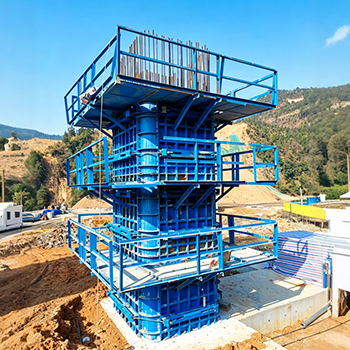

Bridge pier shaft formwork is special steel mould for bridge lower supporting pier‑column. We customize formwork strictly based on customer engineering drawings, can be equipped with safety working platform. It delivers smooth and neat concrete pier surface after casting.
Main Features & Advantages
-
Customized Solution: Dimension & shape made‑to‑order according to project drawings for highway/railway bridges.
-
Robust Steel Structure: Q235 steel plate and stiffener frame, high rigidity, anti‑deformation under concrete pressure.
-
Fast Assembly & Demolding: Modular design, save site labor and construction period.
-
Good Casting Surface: Precise splicing joint to prevent slurry leakage for smooth concrete finish.
-
High Re‑usability: Anti‑rust painting treatment, high turnover times to lower project cost.
-
Optional Safety Parts: Matching working platform, guardrail for high‑altitude construction.
Application Scenarios
‑ Highway bridge pier shaft construction
‑ Railway bridge pier column project
‑ Viaduct & overpass pier concrete casting
‑ Municipal bridge infrastructure
Technical Specification
| Item | Description |
|---|---|
| Product Name | Bridge Pier Shaft Steel Formwork |
| Raw Material | Q235 Steel Plate & Section Steel |
| Panel Thickness | Customized (normally 4‑6mm) |
| Stiffener Frame | Channel steel / Angle steel |
| Manufacturing Standard | Client’s construction drawing |
| Surface Treatment | Anti‑rust paint coating |
| Processing Type | OEM / ODM Custom |
| Accessories | Bolts, working platform, guardrail (optional) |
| Reuse Times | ≥50 times (subject to operation & maintenance) |
Our Service
✅ Customized per your drawings
✅ Engineering drawing review support
✅ Direct factory supply with competitive price
✅ Provide production drawing before manufacturing
✅ Rich overseas bridge‑formwork project experience
✅ Pre‑shipment inspection available
Inquiry tip：Please send your drawing or project requirement, we will quote you promptly.
