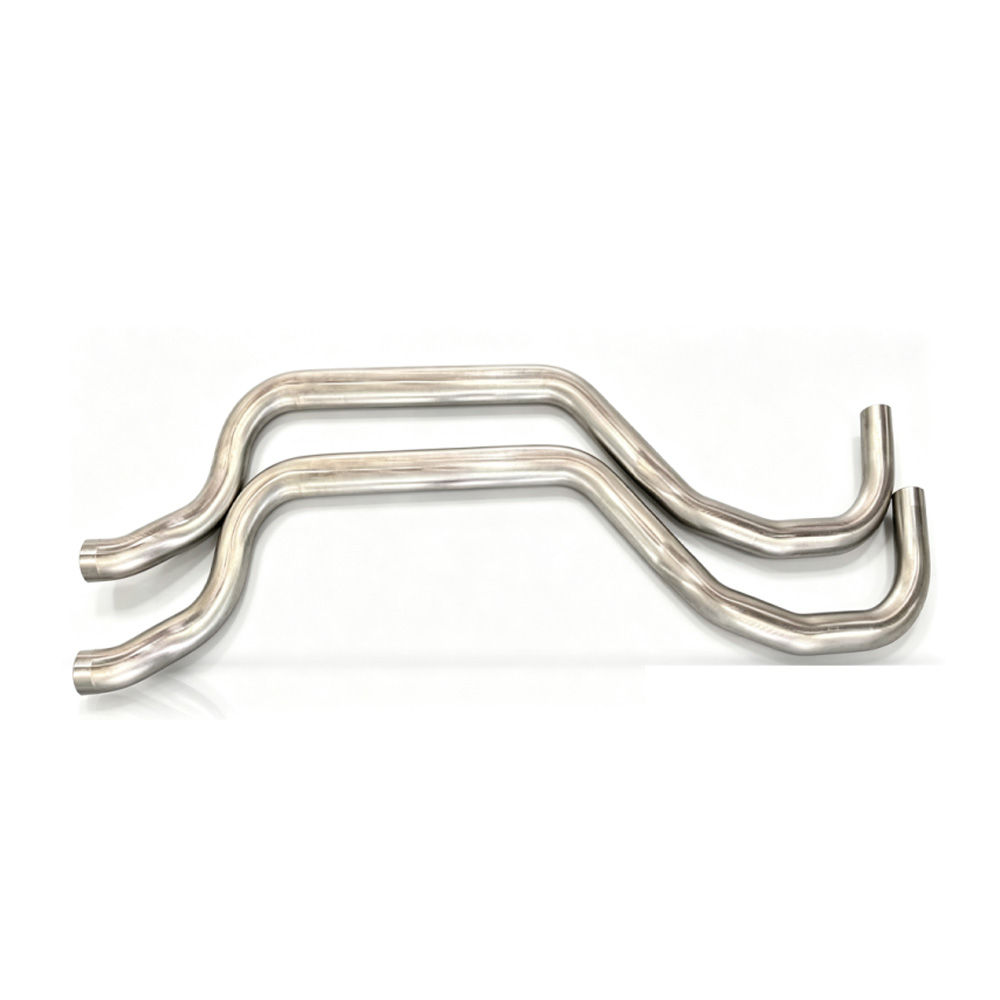

Bent Pipe

Bent Pipe

Precision-Formed Pipework for Automotive Exhaust Systems

Function & Application

The Bent Pipe is designed to route exhaust pipework, guide exhaust gas flow and connect individual exhaust system components. Its formed geometry supports flexible installation within the limited space available in a vehicle underbody.

By maintaining appropriate exhaust back pressure and minimizing unnecessary flow restriction, the pipe helps ensure smooth exhaust flow and stable after-treatment system operation. It is suitable for integration into exhaust after-treatment systems designed to meet China 6b requirements.

Optimized Exhaust Routing

Combines precise forming, low flow resistance and flexible installation to support efficient exhaust routing within complex vehicle layouts.

Key Advantages

01 | Uniform Pipe Deformation

Precision forming ensures uniform deformation throughout the bend, helping maintain dimensional accuracy, structural integrity and a consistent internal flow path.

02 | Low Exhaust Flow Resistance

The optimized bend profile reduces flow restriction and helps maintain appropriate exhaust back pressure for efficient engine and after-treatment system operation.

03 | Temperature and Vibration Resistance

Designed to withstand high exhaust temperatures, thermal cycling and vehicle-induced vibration for reliable operation under demanding conditions.

04 | Flexible Underbody Integration

Adaptable pipe geometries support efficient routing around chassis structures and other underbody components where installation space is limited.

05 | Excellent Weldability and Assembly

Consistent dimensions and reliable material performance support efficient welding, accurate assembly and secure connection with adjacent exhaust components.
