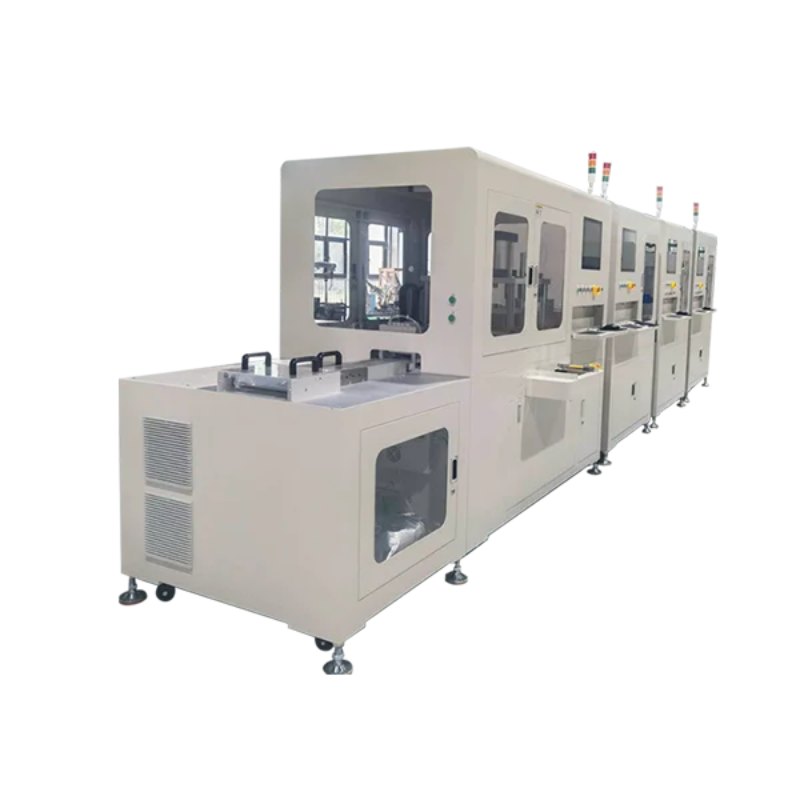

Automatic Invisible Aligner Production Line

Product Introduction

The Automatic Invisible Aligner Production Line is an integrated automated system designed for high-efficiency invisible clear aligner manufacturing. It combines three core production modules: pressure thermoforming, laser marking, and robotic flexible trimming.

The modular production line can be configured with one thermoforming machine, one laser marking machine, and two automatic trimming machines. Each module can operate independently or connect with other modules without requiring additional machine modifications, providing flexible options for different production environments.

With roll film material feeding, automated processing, intelligent model recognition, AI-assisted marking, and robotic trimming, the system can achieve a production capacity of up to 240 pcs per hour and approximately 5,000 pcs per day. An optional teeth feeder can further support a fully automatic workflow.

This solution is particularly suitable for medium- to large-scale clear aligner manufacturers seeking to increase production efficiency, reduce labor dependence, and maintain consistent processing quality.

Key Product Advantages

1. Modular Production Line Design

The Automatic Invisible Aligner Production Line features a modular architecture consisting of:

• 1 pressure thermoforming machine

• 1 laser marking machine

• 2 automatic trimming machines

• Optional teeth feeder

Each functional unit can be used independently or connected with other modules to form a complete automated production workflow. The modular configuration simplifies equipment installation and allows manufacturers to adjust their production setup according to capacity requirements.

2. High Production Efficiency

The production line uses roll film material feeding, allowing continuous operation with a single material load. One loading operation can support approximately one hour of continuous machine running.

The line can reach:

• Up to 240 aligners per hour

• Approximately 5,000 aligners per day

• Continuous roll film feeding

• Automatic film cutting option

This production approach helps improve material utilization and reduce interruptions caused by frequent manual material replacement.

3. Reduced Labor Requirements

The automated workflow significantly reduces manual operations throughout the production process.

Only one operator is required for key tasks such as loading teeth models and replacing the film roll inside the material box. Compared with traditional manual processing, the system can reduce labor dependence by approximately 80%.

This makes the line suitable for manufacturers looking to expand production capacity without proportionally increasing labor costs.

4. Consistent Processing Quality

The system is specially designed for clear aligner cutting and processing applications. Its automated thermoforming, laser marking, and robotic trimming processes help maintain consistent product quality.

The upgraded laser trimming technology produces smooth aligner edges with minimal burrs, substantially reducing the need for manual polishing.

The result is a high product pass rate and extremely low rework requirements, helping manufacturers improve overall production consistency.

Roll Film Feeding System

The production line adopts roll film material feeding to support continuous automated operation.

Compared with frequent manual material loading, roll film feeding can help reduce production interruptions and improve workflow efficiency. Automatic film cutting is also available as an optional function.

Key benefits include:

• Continuous material feeding

• Reduced manual handling

• Lower material-related operating costs

• Higher production efficiency

• Automatic film cutting option

• Suitable for large-scale production

A single roll film loading operation can support approximately one hour of continuous production, helping maintain a stable production cycle.

Pressure Thermoforming System

The pressure thermoforming module is designed to produce clear aligners with consistent forming quality and accurate fitting.

The material box incorporates an automatic dehumidifying mechanism to reduce the risk of bubbles during thermoforming. High-precision temperature control helps ensure uniform material heating and consistent aligner thickness.

Key features include:

• Pressure thermoforming process

• Automatic dehumidification

• Reduced bubble risk

• High-precision temperature control

• Uniform material heating

• Consistent aligner thickness

• Stable forming quality

The thermoforming process provides a reliable foundation for subsequent laser marking and robotic trimming.

AI-Powered Laser Marking

The laser marking module uses an AI-powered deep learning algorithm to calculate and generate the required marking position.

Based on the relevant production data, the system can automatically determine the marking location with high precision. Repetition accuracy can reach 0.01 mm, supporting precise identification and marking requirements for different aligner materials.

The laser marking system provides:

• AI-powered position calculation

• Deep learning algorithm

• Automatic marking position generation

• Repetition accuracy up to 0.01 mm

• Support for multiple aligner materials

• Consistent marking quality

This automated approach reduces manual positioning work and improves marking consistency during high-volume production.

Intelligent Robotic Flexible Trimming

The Automatic Invisible Aligner Production Line incorporates intelligent software and robotic trimming technology for automated aligner edge processing.

HyperBrain Orthodontics can rapidly extract gingival lines in batches based on teeth data in STL format. The software then generates the corresponding cutting trajectory before the robot performs flexible trimming according to the calculated trim line.

This process eliminates the need for tedious manual robot teaching and allows multiple aligner models to be processed more efficiently.

The trimming workflow includes:

1. Import teeth data in STL format

2. Automatically extract gingival lines

3. Generate the cutting trajectory

4. Transfer the trimming path to the robotic system

5. Perform flexible aligner trimming

6. Complete consistent edge processing

The result is improved trimming consistency and reduced manual programming requirements.

Automated Workflow

The production line integrates several processing stages into one coordinated system:

Material Feeding → Pressure Thermoforming → AI Laser Marking → Gingival Line Extraction → Robotic Flexible Trimming → Finished Clear Aligner

With optional teeth feeding equipment, the system can support a more fully automated production workflow.

The integrated design reduces manual intervention between processing stages and helps manufacturers establish a streamlined production process for high-volume invisible aligner manufacturing.

Technical Specifications

Production Capacity

The integrated system is designed for high-volume invisible aligner manufacturing. With roll film feeding and coordinated automated processing, the production line can achieve a maximum capacity of approximately 240 pcs per hour.

The stated daily capacity can reach approximately 5,000 pcs, making the system particularly suitable for large-scale aligner production facilities.

The high-speed processing workflow helps manufacturers:

• Increase daily output

• Reduce production interruptions

• Lower manual labor requirements

• Improve production consistency

• Support large-volume orders

• Optimize overall manufacturing efficiency

Flexible Configuration

The modular structure allows manufacturers to select and combine production functions according to their operational requirements.

The thermoforming machine, laser marking machine, and automatic trimming machines can work as individual units or as an integrated production line. This allows production facilities to introduce automation progressively or configure the system around existing manufacturing processes.

An optional teeth feeder can be added when a higher level of automation is required.

Application

The Automatic Invisible Aligner Production Line is designed for manufacturers of invisible clear aligners and orthodontic appliances.

Typical applications include:

• Invisible aligner manufacturing

• Clear aligner thermoforming

• Automated aligner laser marking

• Robotic aligner trimming

• High-volume orthodontic appliance production

• Digital orthodontic production

• Automated dental manufacturing

• Large-scale aligner production facilities

The system is especially suitable for manufacturers that need high production capacity, consistent processing quality, and reduced dependence on manual labor.

Why Choose This Automated Aligner Production Line?

The system combines several critical manufacturing processes into one coordinated solution. Instead of relying on separate manual operations for thermoforming, marking, and trimming, manufacturers can use an integrated workflow to improve production efficiency.

Major advantages include:

• Modular equipment architecture

• Up to 240 pcs/hour production capacity

• Approximately 5,000 pcs/day capacity

• Continuous roll film feeding

• Optional automatic film cutting

• Automatic pressure thermoforming

• Automatic dehumidification

• AI-powered laser marking

• Up to 0.01 mm marking repetition accuracy

• Intelligent STL-based gingival line extraction

• Robotic flexible trimming

• Smooth, low-burr aligner edges

• Extremely low rework requirements

• Approximately 80% lower labor dependence

• Flexible standalone or integrated operation

Suitable for Large-Scale Manufacturing

For high-volume aligner manufacturers, production efficiency depends on stable equipment operation, consistent product quality, and efficient labor utilization. This automated system addresses these requirements by integrating multiple processing technologies into a single modular production solution.

Continuous roll film feeding supports longer uninterrupted production cycles, while AI-based marking and automated robotic trimming reduce manual intervention. The modular configuration also provides flexibility for factories with different production capacities and automation levels.

Product Summary

Automatic Invisible Aligner Production Line provides an integrated solution for automated invisible clear aligner manufacturing, combining pressure thermoforming, AI-powered laser marking, and robotic flexible trimming.

With a capacity of up to 240 pcs per hour, approximately 5,000 pcs per day, continuous roll film feeding, precise laser marking, and intelligent robotic trimming, the system helps improve production efficiency while reducing labor dependence and manual polishing requirements.

For manufacturers seeking scalable and consistent automated orthodontic production, Automatic Invisible Aligner Production Line offers a modular solution that can be configured for different production requirements.

ConverSight Technology Limited supplies automated production solutions for invisible clear aligner manufacturing and supports efficient integration of thermoforming, laser marking, and robotic trimming technologies.
