In modern pipe manufacturing industries, improving production efficiency while maintaining high forming accuracy has become a key challenge for manufacturers. Traditional pipe processing methods often struggle with consistency, surface quality, and automation requirements, especially when dealing with medium and large diameter tubes.

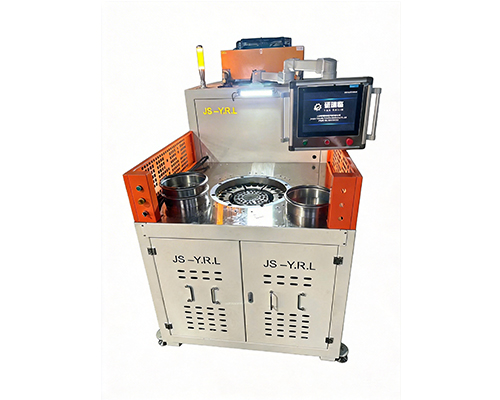

The SCX-180 Vertical Tube End Forming Machine developed by Jiangsu YANRUILIN provides an advanced solution for precision tube end processing. Designed for metal tubes with diameters from 50mm to 180mm, this machine combines servo control technology, hydraulic forming systems, and dual-station operation to deliver stable performance, high productivity, and excellent forming quality.

It is widely used in municipal pipeline systems, building water supply and drainage projects, industrial fluid transportation, and other applications requiring reliable tube forming processes.

What Is a Vertical Tube End Forming Machine?

A vertical tube end forming machine is specialized equipment used to modify and shape the ends of metal pipes through controlled forming processes.

Depending on production requirements, it can perform operations such as:

• Pipe expansion

• Pipe reduction

• Press fitting

• Ring forming

• Profile forming

• Customized end shaping

Unlike conventional machining methods, tube end forming technology uses controlled pressure and precision molds to reshape pipe ends while maintaining material strength and dimensional accuracy.

The SCX-180 adopts a vertical structure, providing:

• Better force distribution

• Improved operating stability

• Reduced workshop space requirements

• Easier mold replacement and maintenance

High Processing Capability for Medium and Large Diameter Tubes

The SCX-180 is specifically designed for medium-to-large diameter metal tube applications.

Its processing range includes:

• Pipe diameter: 30–200mm

• Recommended application range: 50–180mm

• Wall thickness: 0.3–4.0mm

• Pipe length: 10–1000mm

Compatible materials include:

• Stainless steel pipes

• Carbon steel pipes

• Aluminum pipes

• Other metal tubes

The machine supports various pipe structures, including:

• Straight pipes

• T-branch pipes

• 45-degree elbows

• 90-degree elbows

This flexibility makes it suitable for different industrial tube manufacturing requirements.

Advanced Servo Hydraulic System for Precise Forming

Precision is one of the most important factors in pipe end forming.

The SCX-180 integrates a high-performance servo motor and hydraulic control system to achieve accurate forming results.

Key advantages include:

• Stable forming pressure

• Precise movement control

• Reduced dimensional variation

• Improved repeatability

The machine achieves:

• Forming dimension tolerance: ±0.2mm

• Advanced forming accuracy: up to ≤±0.03mm under optimized conditions

This ensures consistent quality during mass production.

Dual-Station Design Improves Production Efficiency

To meet the demands of high-volume manufacturing, the SCX-180 adopts a vertical dual-station design.

The dual-station configuration provides:

• Continuous production capability

• Reduced waiting time

• Higher equipment utilization

• Improved batch efficiency

With optimized processing cycles:

• Cycle time: 10–40 seconds per part

• Production efficiency: up to 300+ components per hour

This makes the machine ideal for manufacturers requiring stable large-scale production.

Multiple Tube End Forming Processes in One Machine

The SCX-180 is designed as a multifunctional tube processing solution.

It supports:

Press Fitting Forming

Creates accurate pipe connections and improves assembly performance.

Ring Pressing

Produces reinforced pipe end structures for enhanced connection reliability.

Expansion and Reduction Forming

Adjusts pipe diameter according to specific application requirements.

Custom Profile Forming

Allows manufacturers to develop special-shaped pipe ends for customized projects.

This multifunction capability reduces the need for multiple machines and improves production flexibility.

Scratch-Free Surface Protection and High-Quality Forming

Surface quality is critical for applications where appearance and sealing performance are important.

The SCX-180 uses internal and external profiling extrusion technology to achieve:

• Smooth pipe surfaces

• Reduced scratches

• Consistent forming results

• Improved product appearance

The forming molds are manufactured from high-performance materials:

• Cr12MoV steel

• SKD11 steel

After heat treatment, the mold hardness exceeds:

HRC 56

The hardened mold surface provides:

• Excellent wear resistance

• Longer service life

• Stable forming accuracy

Compact Structure for Efficient Factory Layout

Although the machine delivers powerful forming capability, the SCX-180 maintains a compact footprint.

Equipment dimensions:

2000 × 2200 × 1900mm (L×W×H)

Equipment weight:

Approximately 2800kg

The optimized structure helps manufacturers:

• Save workshop space

• Improve production layout

• Simplify installation planning

The standard workbench height of:

1.1m

also improves operator convenience.

Intelligent Control System for Easy Operation

The SCX-180 is equipped with a modern PLC control system and touchscreen interface.

Control configuration includes:

• PLC: Easy320-0808TN

• Touchscreen: 10-inch display

The intelligent control system allows operators to easily manage:

• Forming parameters

• Production cycles

• Machine status

• Safety monitoring

The user-friendly interface reduces operation difficulty and improves production efficiency.

Automation-Ready Design for Smart Manufacturing

To support future factory automation upgrades, the SCX-180 reserves an interface for robotic loading and unloading systems.

It can be integrated with:

• Industrial robots

• Automatic feeding systems

• Smart production lines

This makes it suitable for manufacturers moving toward:

• Automated production

• Digital manufacturing

• Intelligent factories

Reliable Hydraulic and Cooling System

The machine is equipped with a stable hydraulic power system to ensure continuous operation.

Main hydraulic components include:

• Hydraulic pump system

• Pressure sensors

• Solenoid relief valves

• Directional valves

• Pressure holding valves

For long-term production stability, the machine supports:

• Air cooling system

• Water cooling system

The water cooling option allows continuous 24-hour production when connected to a workshop circulation system.

Wide Industrial Applications

The SCX-180 vertical tube end forming machine is widely applied in industries such as:

Municipal Pipeline Systems

Used for:

• Water supply pipes

• Drainage systems

• Infrastructure projects

Building Engineering

Suitable for:

• Plumbing systems

• HVAC pipelines

• Construction pipe assemblies

Industrial Fluid Transportation

Applied in:

• Chemical pipelines

• Manufacturing equipment

• Industrial fluid systems

Precision Tube Manufacturing

Ideal for companies producing:

• Pipe fittings

• Metal connectors

• Customized tube components

Easy Mold Replacement and Low Maintenance

Production efficiency depends not only on machine speed but also on maintenance convenience.

The SCX-180 provides:

• Fast mold replacement

• 5–10 minute mold adjustment time

• Simple debugging process

• Long-lasting components

With proper operation and maintenance, the machine is designed for:

50,000 operating cycles under normal conditions

Why Choose SCX-180 Tube End Forming Machine?

The SCX-180 offers several advantages for modern tube processing manufacturers:

✔ Wide tube processing range
✔ High forming precision
✔ Dual-station production efficiency
✔ Servo hydraulic control technology
✔ Multiple forming functions
✔ Scratch-free surface quality
✔ Automation integration capability
✔ Compact factory footprint
✔ Long service life

Conclusion

The Jiangsu YANRUILIN SCX-180 Vertical Tube End Forming Machine provides a reliable and efficient solution for medium and large diameter tube processing. Combining precision hydraulic forming, advanced servo technology, durable molds, and flexible production capabilities, it helps manufacturers improve product quality while reducing production costs.

For industries requiring high-quality pipe forming solutions, the SCX-180 delivers the ideal balance of accuracy, efficiency, reliability, and automation readiness, making it a valuable investment for modern tube manufacturing operations.
