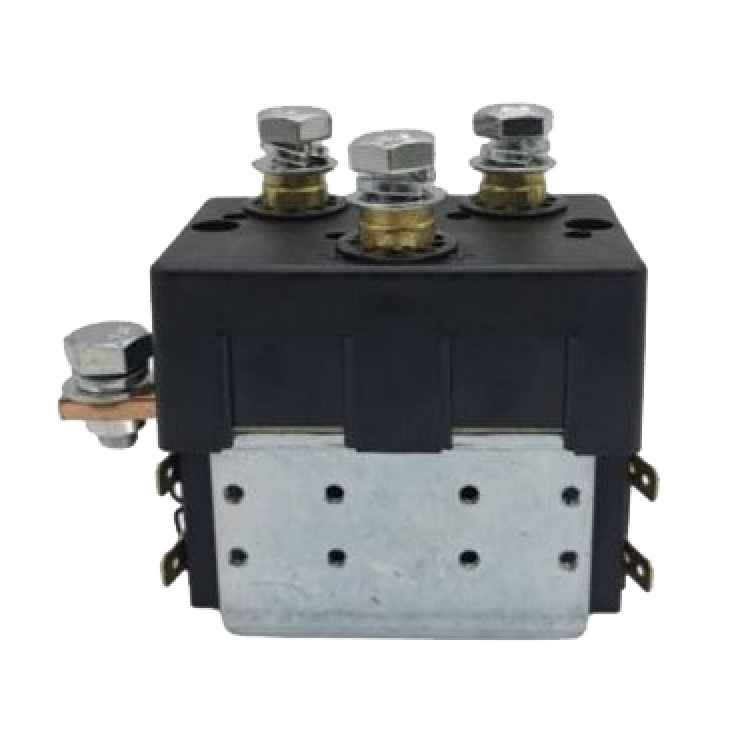

ZJWT125A DC Contactor (DC88)
Neutral Model: DC88ZJWT125A Motor Forward/Reverse Control DC contactor is widely used for electric forklifts, floor scrubbers, pallet trucks, golf carts, sightseeing vehicles
Rated Heating Current
Ith: 125 A
Maximum Contact Voltage – Inductive Load
-
Without magnetic blowout: 48 V DC
-
With magnetic blowout: 96 V DC
Contact Voltage Drop
-
Test current: 100 A
-
Voltage drop: < 40 mV
Mechanical Service Life
300,000 operations
Electrical Service Life
100,000 operations
Coil Power Consumption
-
Intermittent-duty operation: 18–22 W
-
Continuous-duty operation: 13–18 W
Pickup / Closing Voltage
-
Intermittent-duty type: ≥ 60% V
-
Continuous-duty type: ≥ 66% V
Release Voltage
5–40% V
Contact Bounce Time
< 4 ms
Product Weight
950 g
Operating & Storage Conditions
| Parameter | Specification |
|---|---|
| Allowable Operating Temperature | -40°C to +60°C |
| Permitted Storage & Transportation Temperature | -40°C to +85°C |
Performance Highlights
-
125 A rated heating current for high-current switching applications
-
Up to 96 V DC contact voltage when equipped with magnetic blowout
-
Low contact voltage drop of <40 mV at 100 A
-
Mechanical life exceeding 300,000 operations
-
Electrical life exceeding 100,000 operations
-
Flexible coil power options for intermittent or continuous operation
-
Fast contact response, with contact bounce time below 4 ms
-
Wide temperature tolerance from -40°C to +60°C during operation
-
950 g compact weight for integration into electrical equipment and control systems
