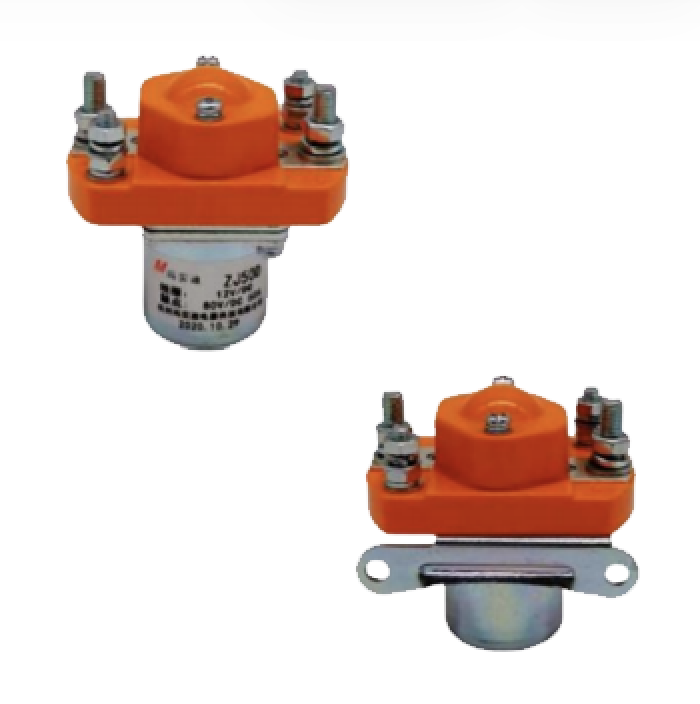

ZJ50D DC Contactor
ZJ50D DC Contactor, dedicated heavy-duty DC power switch for electric forklifts, pallet trucks, scrubbers, mobility scooters and energy storage.
Electrical Performance
-
Rated Heating Current: Ith 100A
-
Maximum Contact Voltage for Inductive Load: 80V DC
-
Magnetic Blowout: No
-
Contact Voltage Drop: ≤40mV at 100A
Mechanical & Electrical Performance
-
Mechanical Life: >300,000 cycles
-
Electrical Life: >100,000 cycles
-
Contact Bounce Time: <4ms
-
Weight: 300g
Coil Power Consumption
-
Intermittent Duty: 10–12W
-
Continuous Duty: 9–10W
Operating Voltage
-
Intermittent-Type Pickup/Closing Voltage: 60% V
-
Continuous-Type Pickup/Closing Voltage: 66% V
-
Release Voltage: 5–40% V
Environmental Conditions
-
Operating Temperature: -40°C to +60°C
-
Permitted Storage & Transportation Temperature: -40°C to +85°C
