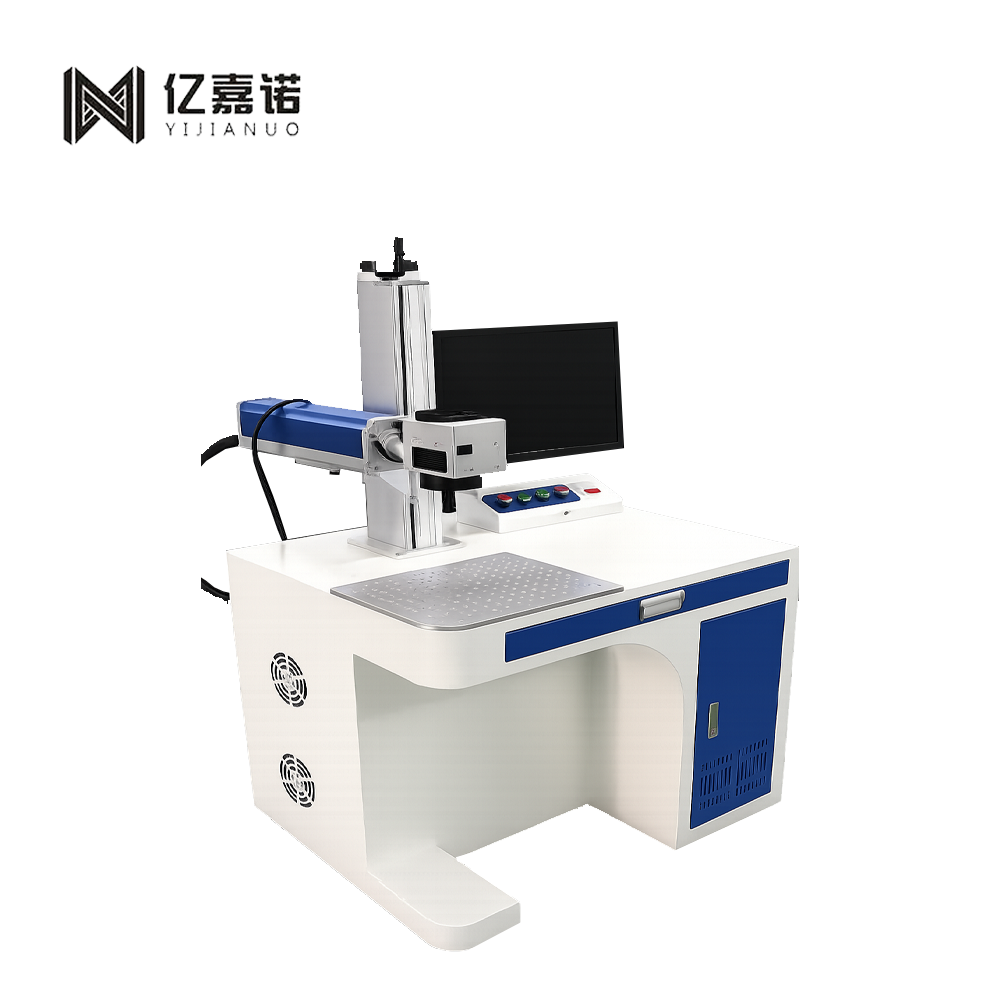

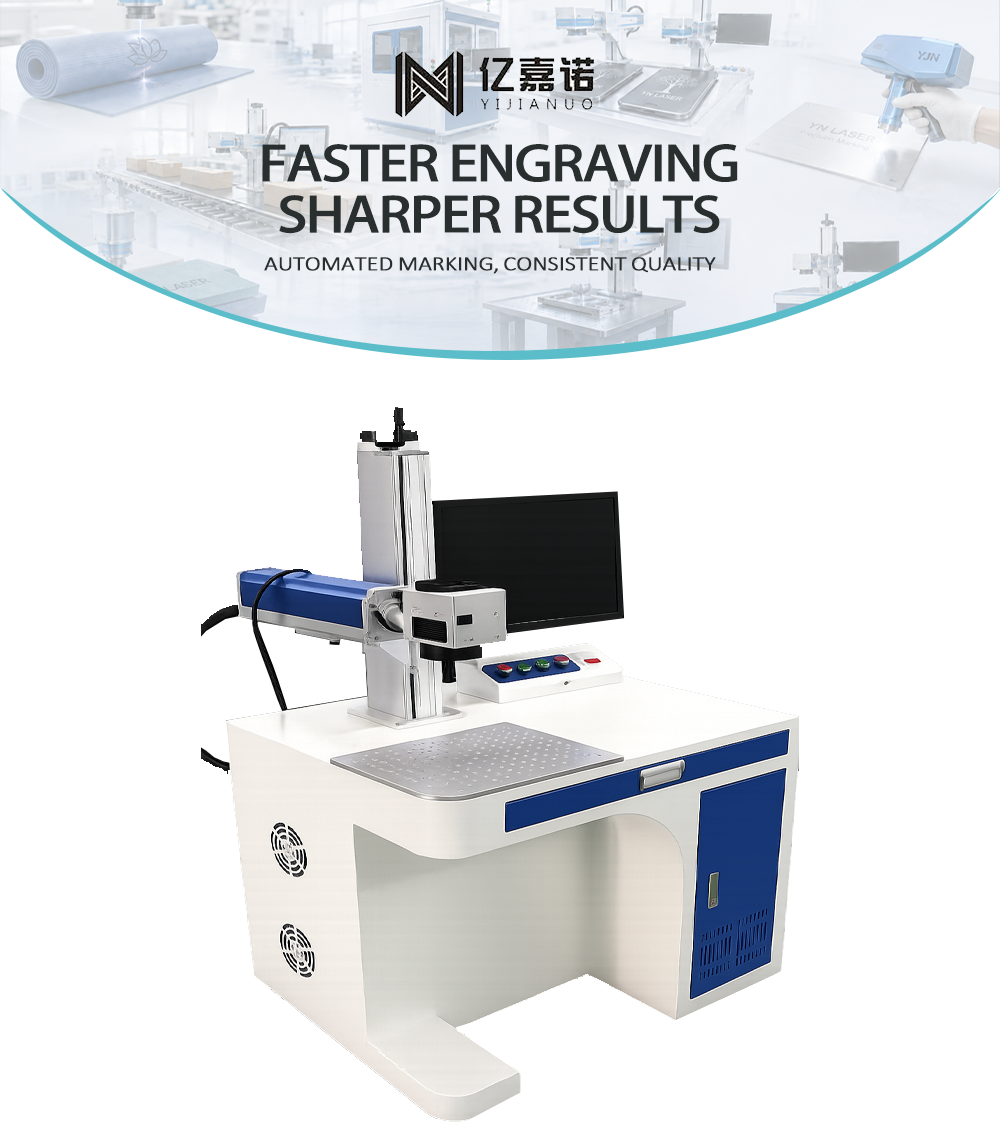

YJN-Z30 Metal Laser Engraving Machine YIIANUO

YJN-Z30 Metal Laser Engraving Machine (Optical Fiber Air Cooled Type) is designed for metal material engraving and marking applications. It is suitable for marking metal nameplates, metal tubes and other metal materials.

The equipment adopts a high-quality fiber laser and built-in intelligent temperature-controlled circulating air cooling system. It is designed as a desktop fiber laser marking machine for metal surface marking applications.

YJN-Z30 offers optional fiber laser power configurations of 20W, 30W and 50W, with a laser wavelength of 1064nm. The equipment supports a standard engraving range of 110×110mm with optional configurations available according to application requirements.

The machine provides engraving depth from 0.01mm to 0.2mm, engraving line speed up to 7000mm/s, repeat accuracy of ±0.01mm, minimum line width of 0.03mm and minimum character height of 0.5mm.

BEAM QUALITY:<1.2 ㎡

PULSE WIDTH: 20NS

VIBRATOR BRAND: JINHCHUANG/SEPSON

STANDARD ENGRAVING RANGE: 110 × 110MM (OPTIONAL)

DEPTH OF ENGRAVING: 0.01~0.2MM

ENGRAVING LINE SPEED: ≤ 7000 MM/S

REPETITION ACCURACY: ± 0.01MM

MINIMUM LINE WIDTH: 0.03MM

MINIMUM WORD HEIGHT: 0.5MM

COOLING MODE: BUILT-IN INTELLIGENT TEMPERATURE

CONTROL CIRCULATING AIR COOLING

TOTAL POWER: 800W

POWER SUPPLY: 220V 50HZ/60HZ

WEIGHT OF COMPLETE MACHINE: 80KG

OVERALL DIMENSION: ABOUT 750 × 600 × 1270MM

WARRANTY PERIOD: 1 YEAR

With built-in intelligent temperature-controlled circulating air cooling, YJN-Z30 provides a practical solution for metal engraving applications. YIIANUO specializes in laser equipment and automation equipment manufacturing, offering professional solutions for industrial marking and engraving needs.
