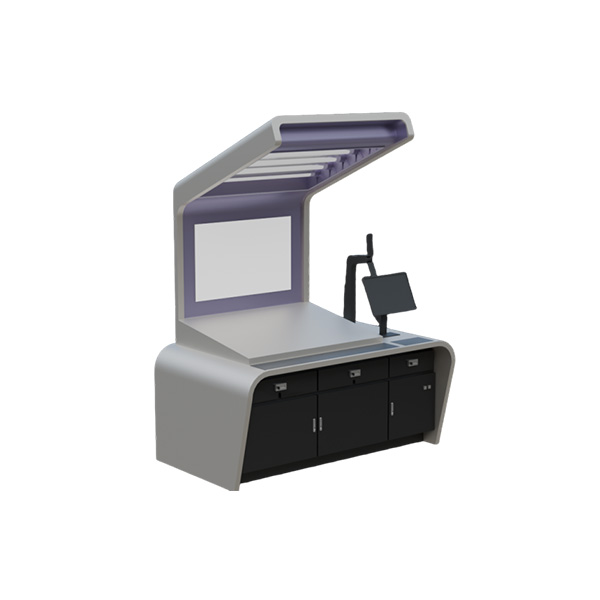

Yixuan Ink Control System
Quick Preset: Precise ink application enables rapid realization of the exact ink volume required for printed materials.Data Management: Data storage enhances efficiency during reorder production opera
One-Click Ink Shutdown: Simplifies and accelerates cleaning, facilitating
maintenance and upkeep.
Ink Key Adjustment: Enables automatic ink adjustment via computer or
operation console panel, reducing manual labor; quickly improves printed product
quality for finer prints; adapts to short-run quick printing, lowering can body
and ink consumption.
Ink Volume Preset & Job Storage: Automatically stores data, supporting
the storage of numerous job datasets for on-demand retrieval; design files can
be migrated to other devices at any time without cumbersome debugging work.
▪ Diversified Control: Convenient & Time-Saving
▪ High-Precision Ink Volume Adjustment: Rapid Color Calibration
▪ Color Mixing Experience Presented in a Data-Driven Form
▪ One-Click Ink Shutdown: Cost Reduction & Efficiency Improvement
▪ One-Click Data Retrieval: Quick Order Reissue
▪ Fault Visualization: Reduction in Isolation Tank Usage
▪ Personalized Customization for Job Storage
Based on a printing speed of 2,000 cans per minute for the color printing press, a 3–5 minute time saving per plate change translates to an additional 6,000–10,000 cans produced. With approximately 800 plate changes and proofing runs annually, this equates to an annual production time saving equivalent to 5–7 million cans.
|
Applicable Format Width |
180mm – 1650mm |
|
Ink Volume Range |
0.005mm – 0.6mm |
|
Ink Key Structure |
0.025mm slit division (with special sealing material on the back of the slit to prevent ink leakage) |
|
Ink Key Adjustment |
0-99 (200 subdivisions) |
|
Ink Type |
All types of ink |
|
Printing Precision |
±0.015mm |
| Name | Traditional Ink Fountain | Electronic Ink Fountain |
| Operation Mode | Manual | Automatic |
| Ink Volume Control | Experience-based | Data-driven: 0.005mm-0.4mm per grid |
| Fountain Opening & Closing Mode | Manual | One-click |
| Cleaning Method | Alcohol Cleaning | Alcohol Cleaning |
| Fault Feedback | Tank Quality Issues | Early Warning: Interface Display |
| Service Life | Blade Wear: 1-2 Years | Blade Wear: Over 2 Years |
| Data Storage | None | Cloud Storage |
| Plate Change Efficiency (New Layout) | 25-28 Minutes | 22-25 Minutes |
| Reorder Turnaround Time | 25-28 Minutes | 20-23 Minutes |
| Multi-machine Production for Same Product | Manual Operation | Data Retrieval |
