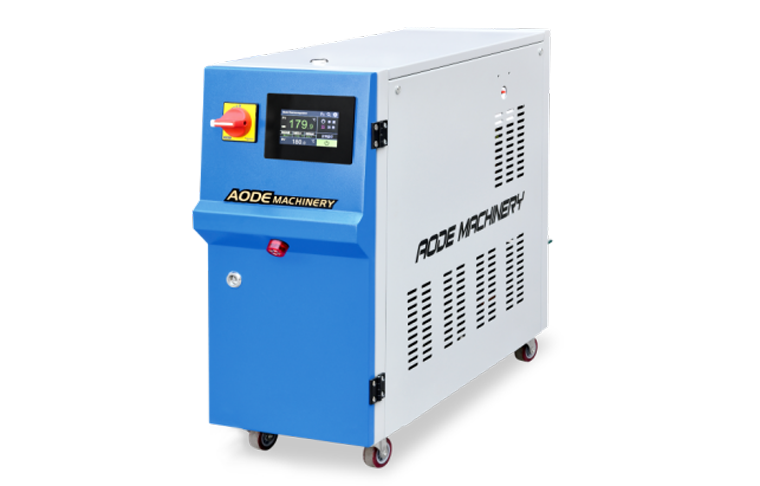

Water test optical grade special mold temperature machine

Circulating pump: Magnetic drive, long time operation of continuous shaft; prevent leak

EFFICIENT AND SUSTAINABLE

Circulating pump: Magnetic drive, long time operation of continuous shaft; prevent leak

Temperature control precision: High heat conduction efficiency and minimal temperature fluctuation

Heater: Unique dry – burning and scale – resistant design

Smart union Intelligent IOT: Flow rate, pressure and temperature can be monitored

DATA PARAMETER

ITEM	UNIT	MODEL
ITEM	UNIT	AEWF-180
Temp control range	℃	Inlet water temperature +25℃~180℃
Temp control accuracy	℃	PID ±0.1
Power supply		AC 3N-380V-50HZ（3 phase+Earth）
Heat transfer medium		Water
Cooling method		Indirect Cooling
Heating capacity	KW	12
Motor power	KW	0.75
Pump flow	L/min	45
Pump head	m	45
Max. power consumption	KW	12.75
Alarm function		Pump reversal/Water shortage/Overheating/Overloading/High pressure
Cooling water pipe	inch	1/2
Circulating water pipe	inch	3/4
Size(L×W×H)	mm	720288580
