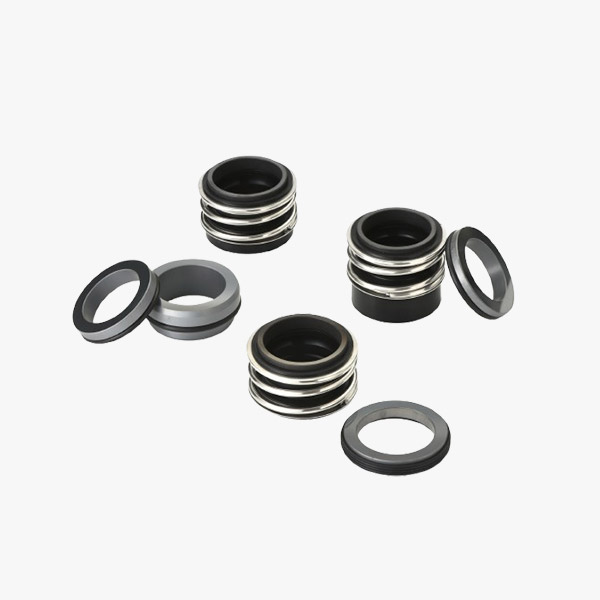

W-MG1&W-MG12&W-MG13 Elastomer Bellow Seals
Mediums:Water,oiland weakly-corrosivemediums
Features
*For plain shafts
*Single and dual seal
*Elastomer bellows rotating
*Balanced
*Independent of direction of rotation
W-MG1&W-MG12&W-MG13 Elastomer Bellow Seals
Working Conditions
Mediums: Water,oil and weakly-corrosive mediums
Temperature: -20℃ to 120℃
Pressure: ≤1.2MPa
Speed: ≤12m/s
Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring : Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel
Recommended applications
*Fresh water supply
*Building services engineering
*Waste water technology
*Food and beverage industry
*Sugar production
*Pulp and paper industry
*Oil industry
*Petrochemical industry
*Chemical industry
*Water, waste water, slurries(solids up to 5 % by weight)
*Pulp (up to 4 % otro)
*Latex
*Dairies, beverages
*Sulfide slurries
*Chemicals
*Oils
*Chemical standard pumps
Helical screw pumps
*Stock pumps
*Circulating pumps
*Submersible pumps
*Water and waste water pumps
