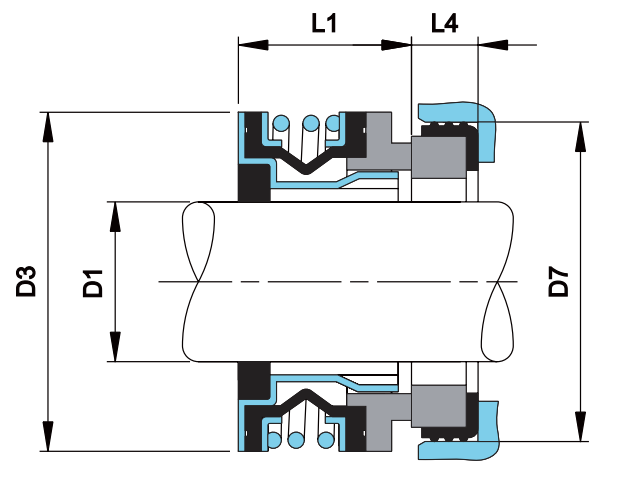

Type 60 Mechanical Seal
Mediums:Water, oil and weakly-corrosivemediums
Working Conditions
Mediums: Water,oil and weakly-corrosive mediums
Temperature: -20℃ to 100℃
Pressure: ≤0.5MPa
Speed: ≤10m/s
Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring : Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel
