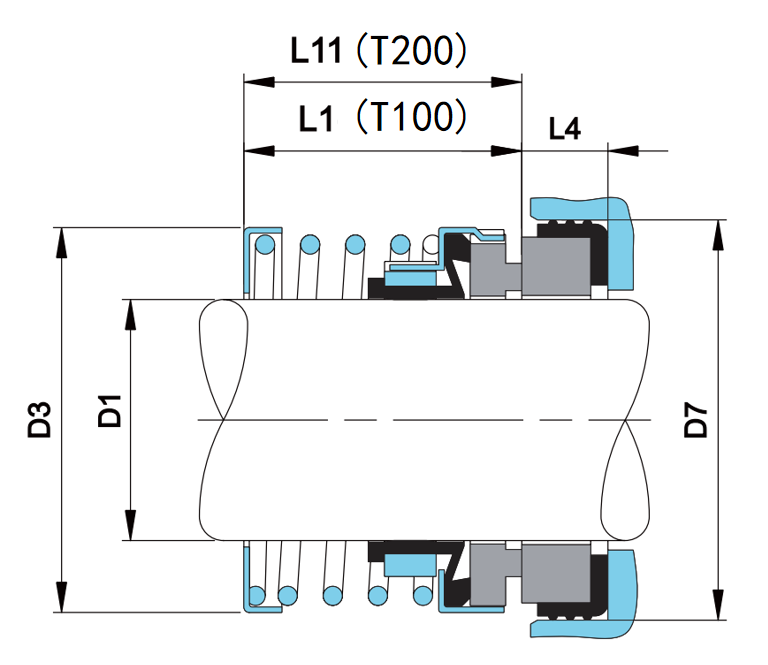

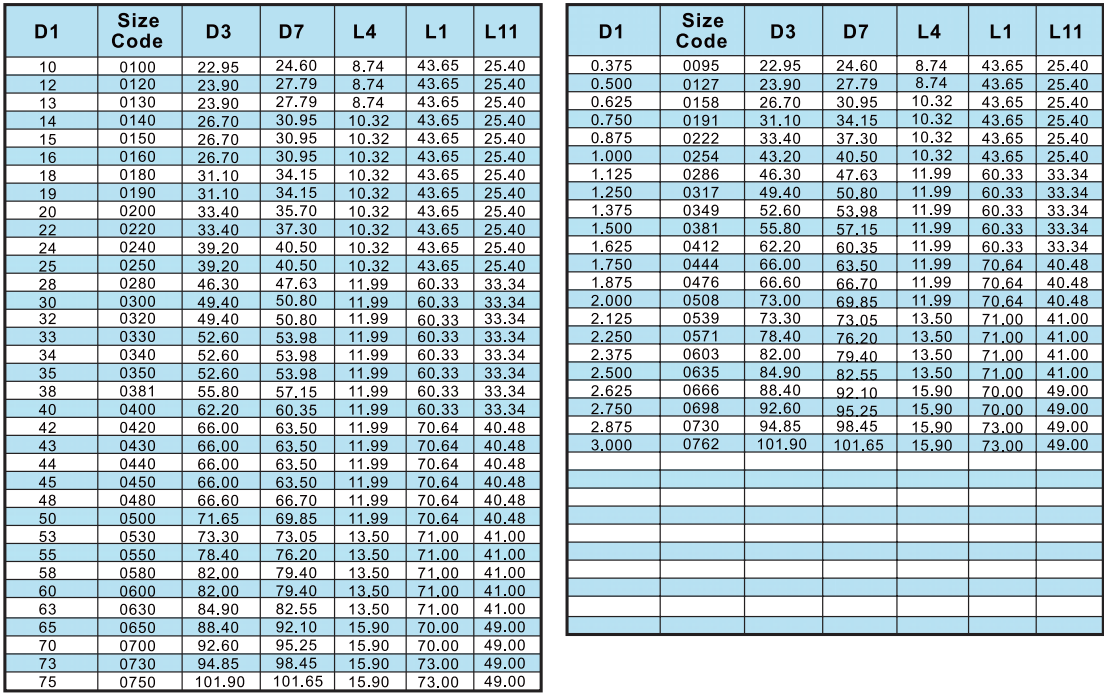

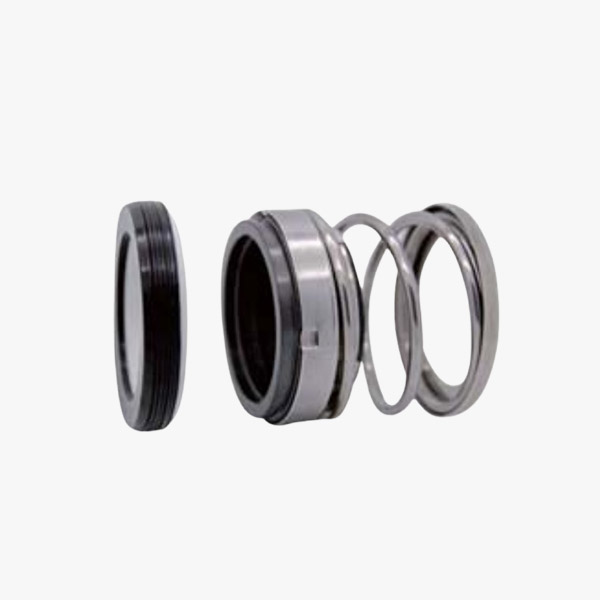

Type 100 & Type 200 Mechanical Seal
Mediums:Water, oil and weakly-corrosivemediums
Working Conditions
Mediums: Water, oil and weakly-corrosive mediums
Temperature: -20℃ to 120℃
Pressure: ≤1.0MPa
Speed: ≤15m/s
Materials
Stationary Ring: Ceramic/Sic/TC
Rotary Ring : Carbon/Sic/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: Stainless Steel
