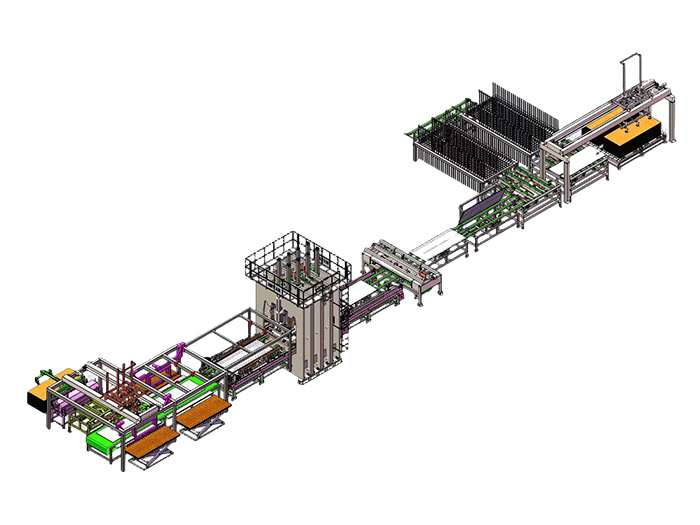

Synchronized veneer production line

Synchronized Grain Matching Veneer Production Line Description

Hanbang's synchronized grain matching production line is a cutting-edge
solution in the field of high-end decorative surface manufacturing, integrating
precision machinery, intelligent vision, and automated control. It completely
solves industry pain points such as pattern misalignment, visible seams, and
material waste inherent in traditional veneering processes. It is specifically
designed to achieve seamless, continuous, and high-precision alignment of
patterns between continuous decorative materials (such as precious wood veneers,
PVC synchronized grain films, and decorative papers) and substrates (engineered
wood panels) during the pressing process.

This production line is no longer a simple "hot press," but a complete
intelligent production system. It represents a leap in manufacturing philosophy,
from "meeting functional requirements" to "pursuing ultimate aesthetics," and is
an indispensable core equipment for high-end markets such as custom home
furnishings, luxury decorative panels, doors, and yacht interiors.

Core: Synchronized Grain Matching Process

Visual Recognition System (Key): Industrial cameras located at the front of
the production line real-time scan the positioning marks on the back of the
continuous decorative material or the texture characteristics of the material
itself.

Servo Correction and Traction System: Based on feedback from the visual
system, high-precision servo motors drive the correction rollers to dynamically
adjust the feeding position of the decorative material in real time, ensuring
that it maintains a preset precise relationship with the edge of the
substrate.

Product Parameters

● Main Machine (Customizable Size)

Customizable size

● Automatic Line

Hooking machine

Lifting platform

Panel dust removal machine

Positioning table

Panel transfer machine

Paper laying conveyor line

Lifting belt conveyor

Integrated infeed and outfeed machine

Edge scraping machine

Finished product inspection table

Drying line

Finished product positioning table

Stacking and transfer machine

● Optional Accessories

Electrostatic adsorption device

Secondary circulation device

Forced cooling device

Cylinder tensioning device

Mold temperature controller

Vision system
