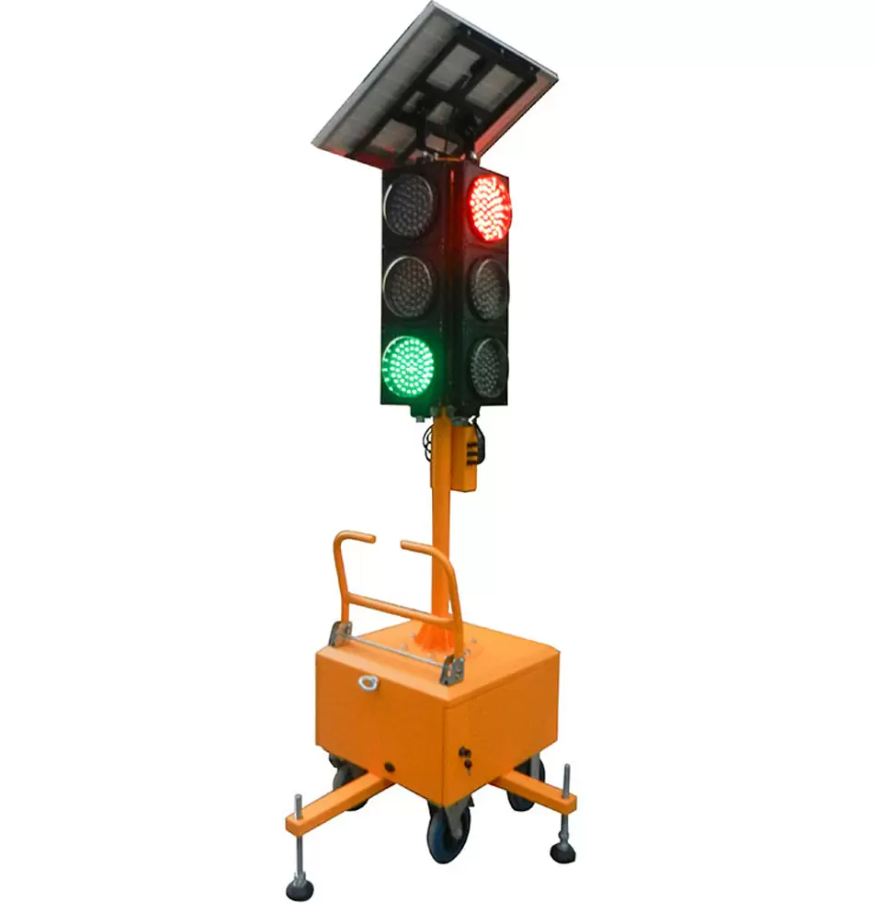

Solar-Powered Mobile Integrated Traffic Light

The Fama Solar-Powered Mobile Integrated Traffic Light is an advanced traffic control system designed for temporary road management, construction zones, and dynamic traffic regulation scenarios. It combines solar power and grid electricity in a dual power supply structure, along with a liftable signal pole and intelligent multi-period control functions.

This integrated design allows fast deployment, flexible adjustment, and stable operation in both permanent and temporary traffic control environments.

Key Functional Features

Dual Power Supply System for Continuous Operation

The system supports both solar charging and grid power input, either independently or simultaneously. This ensures uninterrupted operation for more than 155 hours without sunlight, providing reliable performance in extended low-light conditions.

High Reliability Battery Protection System

Equipped with sealed maintenance-free gel batteries and built-in dual protection circuits for overcharge and over-discharge prevention. This significantly enhances operational safety, system stability, and long-term durability.

Intelligent Energy-Saving Dimming Technology

Using constant-current drive control, the system automatically adjusts brightness levels based on ambient lighting conditions. At night, brightness is reduced to approximately 50%, improving energy efficiency by more than 30% while maintaining clear signal visibility.

Smart Multi-Period Traffic Control

The integrated controller supports programmable traffic signal schedules for weekdays, weekends, and custom scenarios. Automatic switching between modes allows optimized traffic flow management, reducing congestion and improving overall road efficiency.

Technical Parameters

Mechanical Lift System (Model YDSJD200-3-FM3P2501)

• Lift height: 500 mm ± 0.5 mm

• Lift speed: 20 mm/s ± 5%

• Rated power: 60 W

LED Configuration

• YDSJD200 model: R/Y/G total 90 pcs

• YDSJD300 model: R/Y/G total 81 pcs

Power Consumption

• Red signal: ≤7W / ≤3W

• Yellow signal: ≤7W / ≤3W

• Green signal: ≤6W / ≤2W

• Total system power consumption: ≤10W (200 model), ≤12W (300 model)

Solar & Battery System

• Solar panel: 75W / 18V (200 model), 50W / 18V (300 model)

• Battery: 100Ah / 12V (both models)

LED Wavelength

• Red: 625 ± 5 nm

• Yellow: 590 ± 5 nm

• Green: 505 ± 5 nm

Performance Specifications

• LED lifespan: ≥100,000 hours

• Operating temperature: -40℃ to +80℃

• Relative humidity: ≤95% RH

• Protection rating: IP55

• Visible distance: ≥300 m

Application Scope

This mobile integrated traffic signal system is widely used in road construction zones, temporary traffic diversion points, highway maintenance areas, intersections requiring temporary control, and emergency traffic management scenarios.

Its combination of mobility, solar independence, and intelligent control makes it suitable for fast deployment and flexible traffic regulation under complex field conditions.
