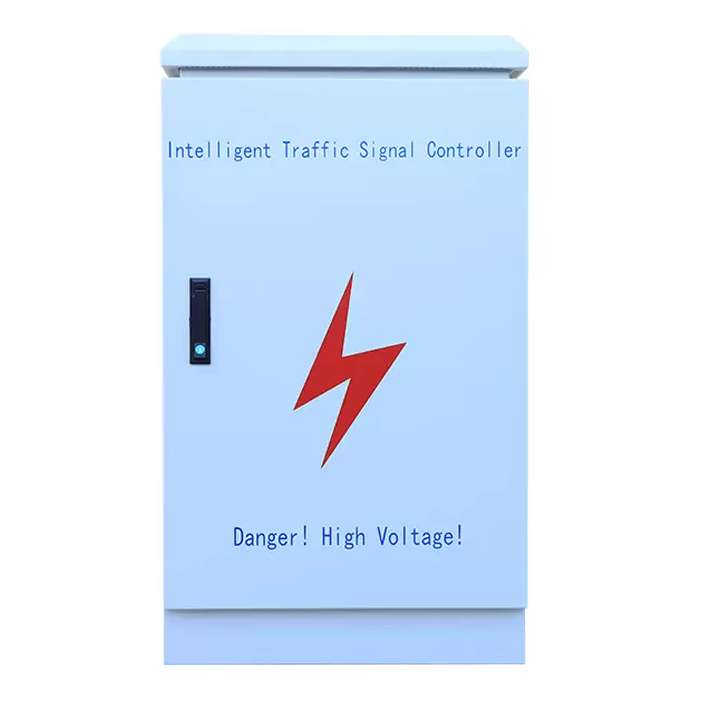

Single Point Traffic Signal Controller
The Single Point Traffic Signal Controller is an intelligent traffic control device with a modular design, capable of supporting up to 44 output channels.
Product Introduction:
The Single Point Traffic Signal Controller is an intelligent traffic control device with a modular design, capable of supporting up to 44 output channels. This controller accurately and automatically regulates traffic light transitions based on pre-defined signal cycles and timing strategies, thereby enabling intelligent traffic management and optimization at intersections and across regional networks.
Functional Features
User-friendly and efficient operation to enhance maintenance performance
Integrated with a multi-functional control interface, the product supports essential operational functions including date setting, plan modification, parameter adjustment, and manual control. On-site debugging can be completed without carrying debugging tools, enhancing maintenance efficiency.
| Product Model | XHJ-AW-GA-FM1001 | XHJ-AW-GA-FM1001 | XHJ-AW-GA-FM1001 |
| Enclosure Dimensions | L × W × H: 55 × 40 × 95 mm | L × W × H: 55 × 40 × 95 mm | L × W × H: 55 × 40 × 95 mm |
|
Operating Voltage / Frequency |
AC：110V±20%/220V±20%/47-63Hz | AC：110V±20%/220V±20%/47-63Hz | AC：110V±20%/220V±20%/47-63Hz |
| Signal Output | 20-output | 32-output | 44-output |
| Number of Signal Phases | 8 phase | 12 phase | 16 phase |
| Machine Standby Power Consumption | 15W | 15W | 15W |
| Drive Current per Channel | 3A | 3A | 3A |
| Surge Impulse Current per Channel | 160A | 160A | 160A |
| Insulation Resistance | ≥20MΩ | ≥20MΩ | ≥20MΩ |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Relative Humidity | ≤95%RH | ≤95%RH | ≤95%RH |
| Protection Grade | IP55 | IP55 | IP55 |
| Packaging Specifications | Dimensions (L × W × H): 63.5 × 48.5 × 103 cm, Weight: 42.5 ± 0.5 kg | Dimensions (L × W × H): 63.5 × 48.5 × 103 cm, Weight: 48.6±0.5 kg | Dimensions (L × W × H): 63.5 × 48.5 × 103 cm, Weight: 49.2±0.5 kg |
